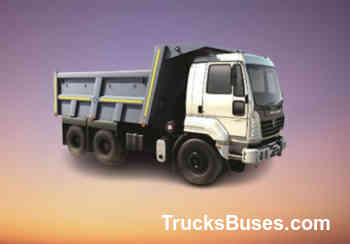

Overview of Ashok Leyland U-2518iL T HD

GVW 25000 Kg
Axle Configuration 6x4
Engine
  • H Series
  • Turbo-charged, Intercooled
Power (Max.) 180 HP@2400 rpm
Torque (Max.) 660 Nm@1500-1700 rpm
Transmission 9 speed manual (8F+ 1CR+1R)
Vehicle Configuration
  • Cabin with Box body
  • Cabin with Rock body
Load Body Options
  • 14 Cu.M Box body
  • 16 Cu.M Box body
  • 14 Cu.M Rock body
Warranty 2 Years / 5000 Hrs

Engine & Performance of Ashok Leyland U-2518iL T HD

Engine
  • H Series
  • Turbo-charged, Intercooled
Fuel Injection System Inline FIP
Engine Displacement 5660 cc
Engine Cylinders 6
Power (Max.) 180 HP@2400 rpm
Torque (Max.) 660 Nm@1500-1700 rpm
Clutch
  • 380 mm dia
  • With clutch booster
Transmission 9 speed manual (8F+ 1CR+1R)
Gearbox Synchromesh gearbox
Gradeability 42%
Max Speed 60 Kmph
Emission Norms Compliance BSIII
Fuel Type Diesel
Fuel Tank Capacity
  • 208 Litres
  • Cross linked polymer tank
Electricals / Battery 2X12V-130 Ah

Design & Configuration of Ashok Leyland U-2518iL T HD

GVW 25000 Kg
Vehicle Configuration
  • Cabin with Box body
  • Cabin with Rock body
Load Body Options
  • 14 Cu.M Box body
  • 16 Cu.M Box body
  • 14 Cu.M Rock body
Cabin Type
  • Day Cab
  • With provision for sleeping
Chassis Frame Joggled bolted frame with cross members
Axle Configuration 6x4
Front Axle Forged I Beam, Reverse Elliot Type
Rear Axle
  • Fully floating, Hypoid gears
  • Single speed
  • RAR: 6.83:1
Front Suspension
  • Semi-elliptical leaf springs
  • With telescopic shock absorbers
Rear Suspension Bogie suspension
Tyres 10x20 - 16 PR Crossply
Wheelbase 3900 mm
Turning Circle Diameter 15.2 m
Ground Clearance 260 mm
Overall Width 2504 mm
Front Overhang 1520 mm
Rear Overhang 1450 mm
Front Track 2054 mm
Rear Track 1816 mm
Chassis Depth 279 mm
Chassis Flange width 90 mm
Chassis Thickness 8 mm

Features & Comfort in Ashok Leyland U-2518iL T HD

Cabin Suspension Fully Suspended
Steering Type Power steering
Driver Seat Type 4 way adjustable
Arm Rest No
Air Conditioner (A/C) No
Telematics / GPS Tracking Optional
Power Windows No
Music System Optional
Automatic Transmission No
Cruise Control No

Safety in Ashok Leyland U-2518iL T HD

Service Brakes Air Brakes
Parking Brakes
  • Pneumatic flick valve operated
  • Acting on rear wheels
Exhaust Brake Yes
ABS Yes
Differential Lock No
Seat Belts Yes
Fog Light No
Tubeless Tyres No
