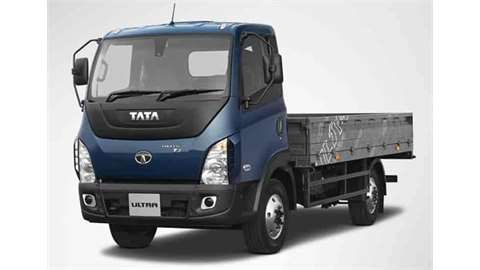

Overview of Tata Ultra T.7

GVW 7300 Kg
Engine
  • 4SP CR
  • Water cooled
Power (Max.) 84 HP@ 2800 rpm
Torque (Max.) 250 Nm@1400-2400 rpm
Axle Configuration 4x2
Vehicle Configuration
  • Cabin and chassis
  • Cabin with load body options
Load Body Options
  • Fixed Side Deck
  • High Side Deck
Loading Span 14 ft
Warranty 3 Years / 3 Lakh Km on driveline
Service Interval 20,000 Km

Engine & Performance of Tata Ultra T.7

Engine
  • 4SP CR
  • Water cooled
Fuel Injection System Electronic rotary type
Engine Displacement 2956 cc
Engine Cylinders 4
Power (Max.) 84 HP@ 2800 rpm
Torque (Max.) 250 Nm@1400-2400 rpm
Clutch 280 mm dia
Transmission 5 speed manual (5F+1R)
Gearbox GBS 400, Synchromesh type
Gradeability 26%
Max Speed 80 Kmph
Emission Norms Compliance BSIV
Fuel Type Diesel
Fuel Tank Capacity 60 Litres
Electricals / Battery 12V, 75 Ah

Design & Configuration of Tata Ultra T.7

GVW 7300 Kg
Kerb Weight 2990 Kg (HSD)
Vehicle Configuration
  • Cabin and chassis
  • Cabin with load body options
Load Body Options
  • Fixed Side Deck
  • High Side Deck
Loading Span 14 ft
Cabin Type Day cab
Cabin Tilt mechanism Hydraulically tiltable
Axle Configuration 4x2
Front Axle Forged I Beam, Reverse Elliot Type
Rear Axle Fully Floating, Single reduction hypoid gears
Front Suspension Parabolic leaf springs
Rear Suspension
  • Semi-elliptical leaf springs
  • With parabolic auxiliary springs
Tyres
  • 235 / 75 R 17.5
  • 4+1 tyres
Wheelbase 3350 mm
Turning Circle Diameter 13.9 m
Ground Clearance 192 mm
Overall Length 6400 mm (HSD)
Overall Width 2680 mm (HSD)
Overall Height 2050 mm

Features & Comfort in Tata Ultra T.7

Steering Type
  • Power Steering
  • With drooping characteristics for stability at high speed
Steering Adjustment Tilt and telescopic
Driver Seat Type 6 way adjustable
Air Conditioner (A/C) Optional
Openable Quarter Ventilation Glass No
Instrument Cluster
  • Digital
  • With live Kmpl indicator
  • Distance to empty
  • Neutral position
Telematics / GPS Tracking Optional
Power Windows No
Music System Optional
Mobile Charging Point Yes
Bottle Holder Yes
Automatic Transmission Optional
Cruise Control No
Additional Digital clock

Safety in Tata Ultra T.7

Service Brakes
  • Air brakes
  • With automatic adjustment
Parking Brakes
  • Spring actuated
  • Acting on rear axle
ABS Yes
Differential Lock No
Seat Belts Yes
Reverse Parking Buzzer Yes
Fog Light Provision
