Welcome to World of Commercial Vehicles

  • Tata Signa 4323.T 6 Axle

Quick Search

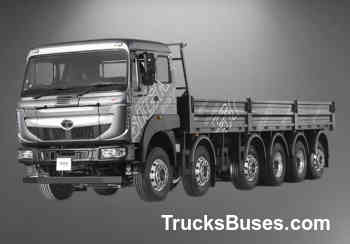

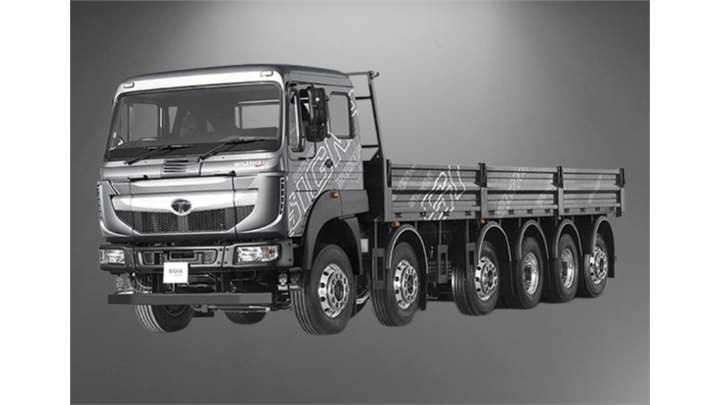

Overview of Tata Signa 4323.T

GVW 43000 Kg
Engine
  • Cummins ISBe 6.7 CRe
  • Cummins ISBe 5.9 (Optional)
  • SCR Technology
Power (Max.) 229 HP@2500 rpm
Torque (Max.) 850 Nm@1200-1700 rpm
Axle Configuration 12x2
Vehicle Configuration
  • Cabin and chassis
  • Face Cowl and chassis
Load Body Options Fixed Side Deck
Loading Span 29 to 30 ft
Warranty
  • 6 Years / 6 Lakh Km on driveline
  • 3 Years / 3 Lakh Km on vehicle
Service Interval 80,000 Km (Oil change)

Engine & Performance of Tata Signa 4323.T

Engine
  • Cummins ISBe 6.7 CRe
  • Cummins ISBe 5.9 (Optional)
  • SCR Technology
Fuel Injection System Common Rail
Engine Displacement 6700 cc
Engine Cylinders 6
Power (Max.) 229 HP@2500 rpm
Torque (Max.) 850 Nm@1200-1700 rpm
Clutch
  • 380 mm dia
  • With clutch booster
Transmission 6 speed manual (6F+1R)
Gearbox G950
Gradeability 19.3%
Max Speed 80 Kmph
Emission Norms Compliance BSIV
Fuel Type Diesel
Fuel Tank Capacity 300 Litres
Electricals / Battery 2x12V, 100 Ah

Design & Configuration of Tata Signa 4323.T

GVW 43000 Kg
Kerb Weight 13500 Kg
Vehicle Configuration
  • Cabin and chassis
  • Face Cowl and chassis
Load Body Options Fixed Side Deck
Loading Span 29 to 30 ft
Cabin Type Sleeper cabin
Cabin Tilt mechanism Hydraulically tiltable
Chassis Frame Ladder type with cross members
Axle Configuration 12x2
Front Axle
  • Forged I Beam, Reverse Elliot Type
  • Twin steer axle
Rear Axle Single reduction type
Front Suspension
  • Parabolic leaf springs
  • With telescopic shock absorbers
Rear Suspension
  • Semi-elliptical leaf springs
  • With Bell crank mechanism
Tyres
  • 295/80R22.5
  • Radial tyres
  • 16+1 tyres
Wheelbase 6750 mm
Ground Clearance 278 mm
Overall Width 2565 mm
Front Track 1964 mm
Rear Track 1817 mm

Features & Comfort in Tata Signa 4323.T

Cabin Suspension Semi suspended
Steering Type Power Steering
Steering Adjustment Tilt and telescopic
Driver Seat Type
  • 6 way adjustable
  • Mechanically suspended
Air Conditioner (A/C) Yes
Openable Quarter Ventilation Glass No
Instrument Cluster Digital
Telematics / GPS Tracking Telematics unit as standard fitment
Power Windows No
Music System Optional
Mobile Charging Point Yes
Bottle Holder Yes
Automatic Transmission No
Cruise Control No

Safety in Tata Signa 4323.T

Service Brakes
  • Air brakes
  • With automatic adjustment
Parking Brakes
  • Graduated valve controlled spring brake
  • Acting on rear axle
Exhaust Brake Yes
ABS Yes
Differential Lock No
Seat Belts Yes
Reverse Parking Buzzer Yes
Fog Light Optional
Tubeless Tyres Yes
