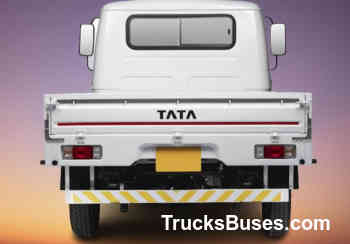

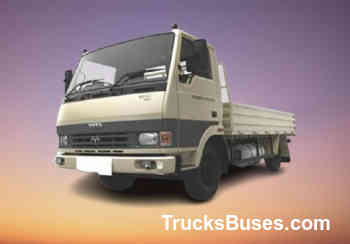

Tata LPT 407 EX2 CNG truck specifications

Rate This Vehicle

Check Discount Offer Check On Road Price

Don't miss out on the best discount offers for this month

Download Tata LPT 407 EX2 CNG Truck Brochure

Check out the Tata LPT 407 EX2 CNG Truck PDF brochure at TrucksBuses.com with all features and specifications.

Key Details of Tata LPT 407 EX2 CNG Truck

Power

GVW

7250 Kg

Fuel

CNG

Engine

3783 cc

Cylinders

Key Specifications of Tata LPT 407 EX2 CNG Truck

Engine
Configuration

Engine
Tata 3.8 SGI NA
Fuel Injection System
Common rail with electronic injectors
Engine Displacement
3783 cc
Engine Cylinders
4
Power
85 HP@2500 rpm
Torque
270 Nm@1200-1500 rpm
Clutch
280 mm dia
Transmission
5 speed manual (5F+1R)
Gearbox
GBS 27, Synchromesh
Gradeability
23%
Max Speed
84 Kmph
Emission Norms Compliance
BSIV
Fuel Type
CNG
Fuel Tank Capacity
240 Litres
Electricals Battery
12V, 100 Ah
Alternator : 65 Amps

GVW
7250 Kg
Kerb Weight
3310 Kg (FSD)
3545 Kg (HSD)
Vehicle Configuration
Cabin and chassis
Cabin with load body options
Loading Span
13.8 ft (FSD)
14.33 ft (HSD)
Cabin Type
Day cab
Cabin Tilt mechanism
Manually tiltable
Chassis Frame
Ladder type with cross members
Axle Configuration
4x2
Front Axle
Forged I Beam, Reverse Elliot Type
Rear Axle
Fully Floating, Single reduction hypoid gears
Front Suspension
Parabolic leaf spring
With telescopic shock absorbers
Rear Suspension
Semi-elliptical leaf springs
With telescopic shock absorbers
Tyres
8.25x16â€“16 PR
4+1 tyres
Wheelbase
3400 mm
Turning Circle Diameter
12.3 m
Ground Clearance
219 mm
Overall Length
5956 mm (HSD)
Overall Width
2198 mm (HSD)
2140 mm (FSD)
Overall Height
2350 mm
Load Body Width
2042 mm (FSD)
Front Overhang
1275 mm
Rear Overhang
1000 mm

Tata LPT 407 EX2 CNG Truck Specification Highlights

Check all the Tata LPT 407 EX2 CNG specifications on TrucksBuses in the table above The main driveline of this Tata truck includes a 3783 cc 4 cylinder engine that produces a maximum power of 85 HP and a torque of 270 Nm It gets mated to 5 speed manual (5F+1R), GBS 27, Synchromesh gearbox A gross weight of 7250 kg and multiple configurations allows the owner to carry multiple kinds of goods as per requirement There are multiple features in this Tata truck for enhancing driver comfort Other Tata LPT 407 EX2 CNG truck specifications like chassis, tyre, axle, turning circle dia, engine cc, gradeability are available here in the tables above.

Tata LPT 407 EX2 CNG Truck Brochure

Download Tata LPT 407 EX2 CNG Truck brochure online. Check out the Tata LPT 407 EX2 CNG Truck PDF brochure at TrucksBuses.com with all features and specifications.

Frequently Asked Questions on Tata LPT 407 EX2 CNG Truck

What is the latest Tata LPT 407 EX2 CNG price in India ?

Tata LPT 407 EX2 CNG price starts from Rs 0 . The 2023 price of Tata LPT 407 EX2 CNG can vary slightly from state to state and city to city.

What is the Tata LPT 407 EX2 CNG GVW tonnage capacity ?

GVW of any truck is the sum total of empty kerb weight and the payload it can carry. Tata LPT 407 EX2 CNG GVW is 7250 Kg

What is the Tata LPT 407 EX2 CNG payload capacity ?

Payload defines the loading capacity of any truck. The payload of Tata LPT 407 EX2 CNG is

What is the engine capacity of Tata LPT 407 EX2 CNG ?

Tata LPT 407 EX2 CNG comes with 4 cylinder Tata 3.8 SGI NA engine and the engine displacement is 3783 cc

What is Tata LPT 407 EX2 CNG power and torque ?

In terms of performance, Tata LPT 407 EX2 CNG produces a maximum power of 85 HP@2500 rpm and a maximum torque of 270 Nm@1200-1500 rpm

What is the gearbox and transmission type in Tata LPT 407 EX2 CNG ?

Tata LPT 407 EX2 CNG comes with a 5 speed manual (5F+1R) transmission along with a 280 mm dia clutch

What is the fuel tank capacity of Tata LPT 407 EX2 CNG ?

Tata LPT 407 EX2 CNG comes with CNG fuel option and its fuel tank capacity is 240 Litres

What is Tata LPT 407 EX2 CNG gradeability ?

Gradeability of any truck defines its ability to climb upward slopes. The gradeability of Tata LPT 407 EX2 CNG is 23%.

Tata LPT 407 EX2 CNG is available in which all body options ?

Tata LPT 407 EX2 CNG is available in multiple body options of 5956 mm (HSD)

What is Tata LPT 407 EX2 CNG tyre size and number of wheels in this truck ?

The tyre size of Tata LPT 407 EX2 CNG is 8.25x16â€“16 PR# 4+1 tyres

What is the type of brakes offered in Tata LPT 407 EX2 CNG ?

Tata LPT 407 EX2 CNG comes with Vacuum assisted dual circuit hydraulic

What is the warranty offered in Tata LPT 407 EX2 CNG ?

Tata LPT 407 EX2 CNG truck comes with a standard warranty of 3 Years / 3 Lakh Km on driveline

What is the EMI of Tata LPT 407 EX2 CNG ?

The monthly EMI of any truck depends on the interest rate offered by bank, down payment made by the buyer and the loan tenure. Considering a 10% down payment and 9.5% rate of interest, the EMI of Tata LPT 407 EX2 CNG is expected to be around Rs Not Available for a 5 year period
