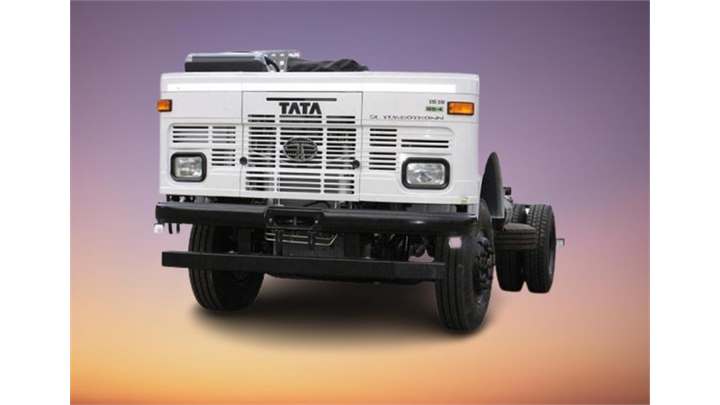

Overview of Tata LPT 1618 Turbotronn 5L

GVW 16200 Kg
Engine
  • 5L Turbotronn DICR
  • EGR Technology
Power (Max.) 176 HP@2400 rpm
Torque (Max.) 590 Nm@1000-2000 rpm
Axle Configuration 4x2
Vehicle Configuration Face Cowl and chassis
Load Body Options NA
Loading Span
  • 18 ft
  • 20 ft
  • 24 ft
  • 32 ft
Warranty
  • 6 Years / 6 Lakh Km on driveline
  • 3 Years / 3 Lakh Km on vehicle
Service Interval 80,000 Km (Oil change)
Additional
  • Gear Shift Advisor
  • FE Switch

Engine & Performance of Tata LPT 1618 Turbotronn 5L

Engine
  • 5L Turbotronn DICR
  • EGR Technology
Fuel Injection System Common Rail
Engine Displacement 5005 cc
Engine Cylinders 4
Power (Max.) 176 HP@2400 rpm
Torque (Max.) 590 Nm@1000-2000 rpm
Clutch
  • 352 mm dia
  • Organic
  • With clutch booster
Transmission
  • 6 speed manual (6F+1R)
  • Dashboard mounted gear lever
Gearbox
  • GBS 750
  • Cable shift
Gradeability 32.7%
Max Speed 80 Kmph
Emission Norms Compliance BSIV
Fuel Type Diesel
Electricals / Battery 24V

Design & Configuration of Tata LPT 1618 Turbotronn 5L

GVW 16200 Kg
Vehicle Configuration Face Cowl and chassis
Load Body Options NA
Loading Span
  • 18 ft
  • 20 ft
  • 24 ft
  • 32 ft
Cabin Type NA
Cabin Tilt mechanism NA
Chassis Frame Ladder type with cross members
Axle Configuration 4x2
Front Axle Forged I Beam, Reverse Elliot Type
Rear Axle
  • Single reduction hypoid gears
  • RAR 4.11
Front Suspension
  • Semi elliptical leaf springs
  • Parabolic leaf spring (Optional)
Rear Suspension
  • Semi-elliptical leaf springs
  • With auxiliary spring
Tyres
  • 10R20-16 PR
  • 295/80 R 22.5 Tubeless (Optional)
  • Radial tyres
  • 6+1 tyres
Wheelbase
  • 4225 mm
  • 4855 mm
  • 5195 mm
  • 6750 mm
Turning Circle Diameter 16.7 m
Ground Clearance 240 mm
Overall Length
  • 7380 mm (4225 wb)
  • 9495 mm (5195 wb)
Overall Width 2440 mm
Front Overhang 1185 mm
Rear Overhang
  • 1970 mm (4225 wb)
  • 3115 mm (5195 wb)
Front Track 1933 mm
Rear Track 1809 mm
Chassis Depth 285 mm
Chassis Thickness 7 mm

Features & Comfort in Tata LPT 1618 Turbotronn 5L

Steering Type Power Steering
Steering Adjustment No
Driver Seat Type 6 way adjustable
Air Conditioner (A/C) No
Openable Quarter Ventilation Glass No
Instrument Cluster Digital
Telematics / GPS Tracking Optional
Power Windows No
Music System No
Automatic Transmission No
Cruise Control No

Safety in Tata LPT 1618 Turbotronn 5L

Service Brakes Air brakes
Parking Brakes
  • Graduated valve controlled spring brake
  • Acting on rear axle
ABS Yes
Differential Lock No
Seat Belts Yes
Reverse Parking Buzzer Yes
Fog Light No
Tubeless Tyres Optional
