Commercial Vehicles in India

  • Eicher Pro 1059XP BSIV

Quick Search

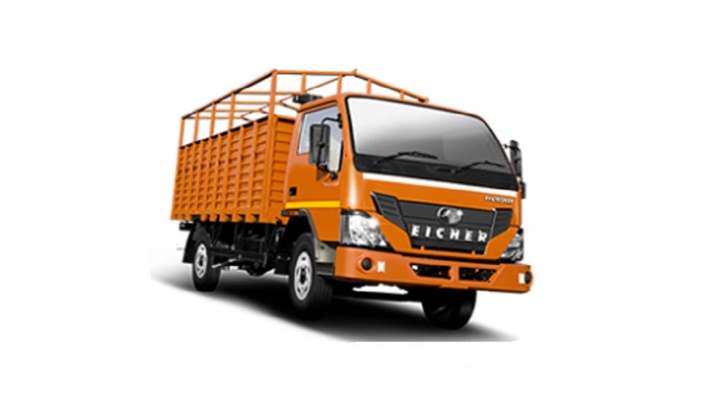

Overview of Eicher Pro 1059XP

GVW
  • 7200 Kg (12.6 ft, 14.1 ft variant)
  • 7490 Kg (16 ft variant)
Engine E483 CRS
Power (Max.)
  • 95 HP@2600 rpm (12.6 ft, 14.1 ft)
  • 107 HP@2600 rpm (16 ft)
Torque (Max.)
  • 300 Nm@1200-1800 rpm (12.6 ft, 14.1 ft)
  • 350 Nm@1200-1800 rpm (16 ft)
Axle Configuration 4x2
Vehicle Configuration
  • Cabin and chassis
  • Cabin with load body options
Load Body Options
  • Fixed Side Deck
  • Drop Side Deck
  • High Side Deck
Loading Span
  • 12.6 ft
  • 14.1 ft
  • 16 ft
Warranty
  • 3 years unlimited km on engine and gearbox
  • 1 year unlimited km on vehicle
Service Interval 50000 Km (Oil change)
Additional
  • M-Booster Technology with twin drive mode
  • Eco Mode
  • Power Mode

Engine & Performance of Eicher Pro 1059XP

Engine E483 CRS
Fuel Injection System Common Rail
Engine Displacement 3298 cc
Engine Cylinders 4
Power (Max.)
  • 95 HP@2600 rpm (12.6 ft, 14.1 ft)
  • 107 HP@2600 rpm (16 ft)
Torque (Max.)
  • 300 Nm@1200-1800 rpm (12.6 ft, 14.1 ft)
  • 350 Nm@1200-1800 rpm (16 ft)
Clutch 275 mm dia
Transmission
  • 5 speed manual (5F+1R)
  • Hybrid gear shift lever
Gearbox Eicher 3M 5D
Gradeability 24%
Emission Norms Compliance BSIV
Fuel Type Diesel
Fuel Tank Capacity 100 Litres
Electricals / Battery 12V-70 Ah

Design & Configuration of Eicher Pro 1059XP

GVW
  • 7200 Kg (12.6 ft, 14.1 ft)
  • 7490 Kg (16 ft)
Kerb Weight 2700 Kg (FSD)
Vehicle Configuration
  • Cabin and chassis
  • Cabin with load body options
Load Body Options
  • Fixed Side Deck
  • Drop Side Deck
  • High Side Deck
Loading Span
  • 12.6 ft
  • 14.1 ft
  • 16 ft
Cabin Type Day cab
Cabin Tilt mechanism Manually tiltable
Chassis Frame Ladder type modular frame
Axle Configuration 4x2
Front Suspension
  • Semi-elliptical leaf springs
  • With telescopic shock absorbers
Rear Suspension
  • Semi-elliptical leaf springs
  • With telescopic shock absorbers
Anti-Roll Bar No
Tyres
  • 8.25x16-16 PR
  • 4+1 tyres
Wheelbase 3350 mm
Ground Clearance 230 mm
Chassis Depth 181 mm
Chassis Flange width 65 mm
Chassis Thickness 5 mm

Features & Comfort in Eicher Pro 1059XP

Cabin Suspension No
Steering Type
  • Power Steering (Optional in 12.6 ft, 14.1 ft)
  • Power Steering (Standard in 16 ft)
Steering Adjustment Tilt and telescopic
Driver Seat Type 4 way adjustable
Air Conditioner (A/C) No
Openable Quarter Ventilation Glass No
Instrument Cluster Digital
Telematics / GPS Tracking No
Power Windows No
Music System No
Mobile Charging Point Yes
Bottle Holder No
Automatic Transmission No
Cruise Control No
Additional 12V utility socket

Safety in Eicher Pro 1059XP

Service Brakes
  • Hydraulic brakes (12.6 ft, 14.1 ft)
  • Air brakes (16 ft)
Parking Brakes
  • Hand control value
  • Acting on rear axle
Exhaust Brake Yes
ABS No
Anti-Roll Bar No
Differential Lock No
Seat Belts Yes
Reverse Parking Buzzer Yes
Fog Light No
Tubeless Tyres No
