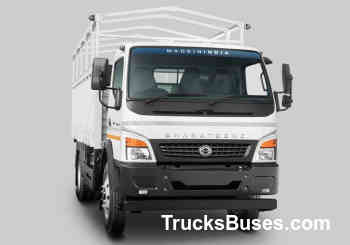

BharatBenz 1214RE truck specifications

Rate This Vehicle

Check Discount Offer Check On Road Price

Don't miss out on the best discount offers for this month

Key Details of BharatBenz 1214RE Truck

Power

140

GVW

12800 Kg

Fuel

Diesel

Engine

3907 cc

Cylinders

Key Specifications of BharatBenz 1214RE Truck

Engine
Configuration

Engine
4D34i CRDI
SCR Technology
Fuel Injection System
Common rail
Engine Displacement
3907 cc
Engine Cylinders
4
Power
140 HP@2500 rpm
Torque
420 Nm@1500-2000 rpm
Clutch
362 mm dia
With clutch booster
Transmission
6 speed manual (6F+1R)
With cable shift
Gearbox
G 85, Synchromesh
Gradeability
27.5% (3760 wb)
21.5% (4250 / 4800 wb)
Max Speed
80 Kmph
Emission Norms Compliance
BSIV
Fuel Type
Diesel
Fuel Tank Capacity
Diesel: 200 Litres
Ad-Blu Tank: 27 Litres
With diesel anti-theft strain
Electricals Battery
2x12V, 75 Ah

GVW
12800 Kg
Vehicle Configuration
Cabin and chassis
Cabin with load body options
Loading Span
14.6 ft
17 ft
19 ft
22 ft
Cabin Type
Day cab
Cabin Tilt mechanism
Manually tiltable
Chassis Frame
Ladder type channel with cross members
Axle Configuration
4x2
Front Axle
IF 4.5, Reverse Elliot Type
Rear Axle
Fully floating, Hypoid gears
Front Suspension
Semi-elliptical leaf springs
With telescopic shock absorbers
Rear Suspension
Semi elliptical leaf springs
Anti Roll Bar
Front and Rear (Optional)
Tyres
8.25x20â€“16 PR
Radial tyres (Optional)
6+1 tyres
Wheelbase
3760 mm
4250 mm
4800 mm
Turning Circle Diameter
14.8 m (3760 wb)
16.7 m (4250 wb)
18.7 m (4800 wb)
Ground Clearance
245 mm
Overall Length
6380 mm (3760 wb)
7075 mm (3760 wb)
7585 mm (4250 wb)
8585 mm (4800 wb)
Overall Width
2225 mm
Overall Height
2500 mm
Load Body Width
2115 mm
2150 mm (DSD)
Front Overhang
1275 mm
Chassis Depth
228 mm
Chassis Flange width
80 mm
Chassis Thickness
6 mm

BharatBenz 1214RE Truck Specification Highlights

Check all the BharatBenz 1214RE specifications on TrucksBuses in the table above The main driveline of this BharatBenz truck includes a 3907 cc 4 cylinder engine that produces a maximum power of 140 HP and a torque of 420 Nm It gets mated to 6 speed manual (6F+1R), With cable shift, G 85, Synchromesh gearbox A gross weight of 12800 kg and multiple configurations allows the owner to carry multiple kinds of goods as per requirement There are multiple features in this BharatBenz truck for enhancing driver comfort Other BharatBenz 1214RE truck specifications like chassis, tyre, axle, turning circle dia, engine cc, gradeability are available here in the tables above.

Frequently Asked Questions on BharatBenz 1214RE Truck

What is the latest BharatBenz 1214RE price in India ?

BharatBenz 1214RE price starts from Rs 0 . The 2023 price of BharatBenz 1214RE can vary slightly from state to state and city to city.

What is the BharatBenz 1214RE GVW tonnage capacity ?

GVW of any truck is the sum total of empty kerb weight and the payload it can carry. BharatBenz 1214RE GVW is 12800 Kg

What is the BharatBenz 1214RE payload capacity ?

Payload defines the loading capacity of any truck. The payload of BharatBenz 1214RE is

What is the engine capacity of BharatBenz 1214RE ?

BharatBenz 1214RE comes with 4 cylinder 4D34i CRDI# SCR Technology engine and the engine displacement is 3907 cc

What is BharatBenz 1214RE gradeability ?

Gradeability of any truck defines its ability to climb upward slopes. The gradeability of BharatBenz 1214RE is 27.5% (3760 wb)# 21.5% (4250 / 4800 wb).

What is the fuel tank capacity of BharatBenz 1214RE ?

BharatBenz 1214RE comes with Diesel fuel option and its fuel tank capacity is Diesel: 200 Litres# Ad-Blu Tank: 27 Litres# With diesel anti-theft strain

What is BharatBenz 1214RE power and torque ?

In terms of performance, BharatBenz 1214RE produces a maximum power of 140 HP@2500 rpm and a maximum torque of 420 Nm@1500-2000 rpm

BharatBenz 1214RE is available in which all body options ?

BharatBenz 1214RE is available in multiple body options of 6380 mm (3760 wb)# 7075 mm (3760 wb)# 7585 mm (4250 wb)# 8585 mm (4800 wb)

What is the EMI of BharatBenz 1214RE ?

The monthly EMI of any truck depends on the interest rate offered by bank, down payment made by the buyer and the loan tenure. Considering a 10% down payment and 9.5% rate of interest, the EMI of BharatBenz 1214RE is expected to be around Rs Not Available for a 5 year period
