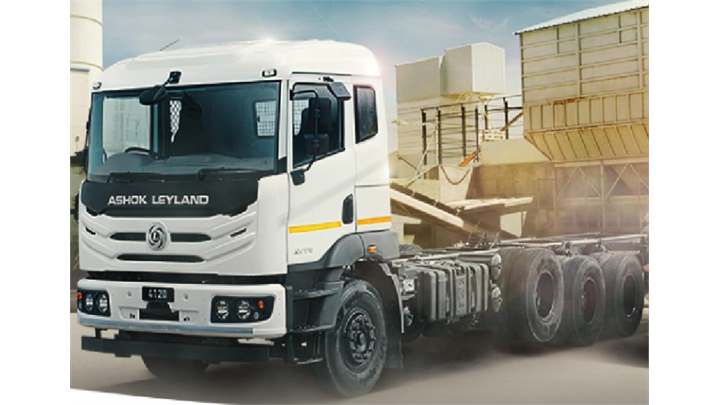

Ashok Leyland U4120 truck specifications

Name: Ashok Leyland U4120
Brand: Ashok Leyland
SKU: TBN-20-AB4CCF

Rate This Vehicle

From ₹ 44.1 Lakh* Onwards
*Ex-showroom Price

Check Discount Offer Check On Road Price

Don't miss out on the best discount offers for this month

Key Details of Ashok Leyland U4120 Truck

Power

200

GVW

40500 Kg

Fuel

Diesel

Engine

5660 cc

Cylinders

Key Specifications of Ashok Leyland U4120 Truck

Engine
Configuration

Engine
H series CRS
iGen-6 technology
Fuel Injection System
Common Rail
Engine Displacement
5660 cc
Engine Cylinders
6
Power
200 HP
Torque
700 Nm
Clutch
380 mm dia
Organic
With clutch booster
Transmission
6 speed (6F+1R)
With cable shift
Gearbox
ZF 6S 850
Max Speed
80 Kmph
Emission Norms Compliance
BS6
Fuel Type
Diesel
Fuel Tank Capacity
Diesel: 220 / 300 / 375 Litres
Ad Blue: 48 Litres
Polymer tank
Electricals Battery
24V, 120 Ah / 150 Ah (AC)

GVW
40500 Kg
Vehicle Configuration
Cabin and chassis
Cabin with load body
Load Body Options
Fixed Side Deck
High Side Deck
Loading Span
24 ft
26 ft
28 ft
30 ft
32 ft
Cabin Type
Sleeper cabin
Cabin Tilt mechanism
Hydraulically tiltable
Chassis Frame
HSS material, bolted construction
Axle Configuration
8x2
Front Axle
Forged I Beam, Reverse Elliot Type
Rear Axle
Fully floating, Single speed
Front Suspension
Semi elliptical leaf springs
Parabolic leaf spring (Optional)
Rear Suspension
Semi elliptical leaf springs
Slipper suspension (Optional)
Anti Roll Bar
Optional in front
Tyres
295/90R20 (Tube)
12+1 tyres
Wheelbase
5750 mm
6300 mm
6600 mm
Turning Circle Diameter
19.6 m (24 ft)
20.7 m (26 ft)
22.7 m (28 ft)
23.7 m (30 / 32 ft)
Ground Clearance
253 mm
Overall Length
9710 mm (24 ft body)
10360 mm (26 ft)
10960 mm (28 ft)
11560 mm (30 ft)
11960 mm (32 ft)
Overall Width
2570 mm
Overall Height
3247 mm
Front Overhang
1550 mm
Front Track
2084 mm
Rear Track
1876 mm
Chassis Depth
275 mm
Chassis Flange width
75 mm

Ashok Leyland U4120 Truck Specification Highlights

Check all the Ashok Leyland U4120 specifications on TrucksBuses in the table above The main driveline of this Ashok Leyland truck includes a 5660 cc 6 cylinder engine that produces a maximum power of and a torque of It gets mated to 6 speed (6F+1R), With cable shift, ZF 6S 850 gearbox A gross weight of 40500 kg and multiple configurations allows the owner to carry multiple kinds of goods as per requirement There are multiple features in this Ashok Leyland truck for enhancing driver comfort Other Ashok Leyland U4120 truck specifications like chassis, tyre, axle, turning circle dia, engine cc, gradeability are available here in the tables above.

Frequently Asked Questions on Ashok Leyland U4120 Truck

What is the gearbox and transmission type in Ashok Leyland U4120 ?

Ashok Leyland U4120 comes with a 6 speed (6F+1R)# With cable shift transmission along with a 380 mm dia# Organic# With clutch booster clutch

What is the fuel tank capacity of Ashok Leyland U4120 ?

Ashok Leyland U4120 comes with Diesel fuel option and its fuel tank capacity is Diesel: 220 / 300 / 375 Litres# Ad Blue: 48 Litres# Polymer tank

Ashok Leyland U4120 is available in which all body options ?

Ashok Leyland U4120 is available in multiple body options of 9710 mm (24 ft body)# 10360 mm (26 ft)# 10960 mm (28 ft)# 11560 mm (30 ft)# 11960 mm (32 ft)

What is the EMI of Ashok Leyland U4120 ?

The monthly EMI of any truck depends on the interest rate offered by bank, down payment made by the buyer and the loan tenure. Considering a 10% down payment and 9.5% rate of interest, the EMI of Ashok Leyland U4120 is expected to be around Rs Not Available for a 5 year period
