Commercial Vehicles in India

  • Ashok Leyland 3118 Chassis 12 Wheeler

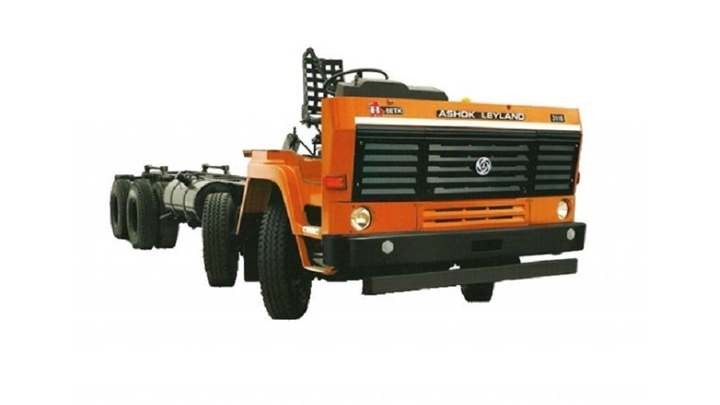

Ashok Leyland 3118 XL/1 BSIV

Ashok Leyland 3118 is the 31 Ton GVW truck with 8x2 axle configuration and twin-steer pusher axle. Ashok Leyland 3118 truck is powered by H Series 5.7L CRS engine with iEGR technology, which doesn't require any additional ad-blue consumption to meet BSIV emissions norms. This Ashok Leyland 12 wheeler truck offers a maximum power of 180 HP and max torque of 660 Nm. Available in 2 wheelbase options, Ashok Leyland 3118 truck comes in deck length options of 24 ft and 32 ft. 12 wheeler Ashok Leyland trucks are available in both cowl chassis as well as Captain design / U-truck cabin options. Twin steer pusher lift axle also leads to better load distribution. Air brakes and power steering are a standard fitment in Ashok Leyland trucks of 31T GVW capacity. To know more about Ashok Leyland 12 wheeler truck price, submit your interest for us to get back to you.

Overview of Ashok Leyland 3118 XL/1 BSIV

GVW 31000 Kg
Engine
  • H Series 5.7L CRS TCIC
  • iEGR Technology
Power (Max.) 180 HP@2400 rpm
Torque (Max.) 660 Nm@1200-1900 rpm
Axle Configuration 8x2
Vehicle Configuration Face Cowl and chassis
Load Body Options NA
Loading Span
  • 24 ft
  • 32 ft
Warranty 4 Years / 4 Lakh Km
Service Interval 80,000 Km (Oil change)
Additional Unitized wheel bearing (Optional)

Engine & Performance of Ashok Leyland 3118 XL/1 BSIV

Engine
  • H Series 5.7L CRS TCIC
  • iEGR Technology
Fuel Injection System Common Rail
Engine Displacement 5660 cc
Engine Cylinders 6
Power (Max.) 180 HP@2400 rpm
Torque (Max.) 660 Nm@1200-1900 rpm
Clutch
  • 380 mm dia
  • With clutch booster
Transmission
  • 6 speed manual (6F+1R)
  • 8 speed (Optional)
Gearbox Eaton 6S
Gradeability 17.3%
Max Speed 78 Kmph
Emission Norms Compliance BSIV
Fuel Type Diesel
Fuel Tank Capacity 400 Litres
Electricals / Battery 24V, 110 Ah

Design & Configuration of Ashok Leyland 3118 XL/1 BSIV

GVW 31000 Kg
Vehicle Configuration Face Cowl and chassis
Load Body Options NA
Loading Span
  • 24 ft
  • 32 ft
Cabin Type No cabin
Cabin Tilt mechanism NA
Chassis Frame Ladder type joggled bolted with cross members
Axle Configuration 8x2
Front Axle
  • Forged I Beam, Reverse Elliot Type
  • Twin steer axle
Rear Axle
  • Fully floating, Single speed hypoid
  • RAR 5.83:1 (Optional 6.17:1)
Front Suspension Semi elliptical leaf springs
Rear Suspension
  • Semi elliptical leaf springs
  • With equalizer link rod
Tyres
  • 10R20-16 PR Radial
  • 12+1 tyres
Wheelbase
  • 6100 mm
  • 6600 mm
Ground Clearance 260 mm
Overall Width 2432 mm
Front Overhang 1218 mm
Rear Overhang 2044 mm
Front Track 1978 mm
Rear Track 1816 mm
Chassis Depth 228.2 mm
Chassis Flange width 75 mm
Chassis Thickness 6 mm

Features & Comfort in Ashok Leyland 3118 XL/1 BSIV

Cabin Suspension NA
Steering Type Power Steering
Steering Adjustment No
Air Conditioner (A/C) No
Openable Quarter Ventilation Glass No
Instrument Cluster
  • Analog
  • With LED display
Power Windows No
Music System No
Automatic Transmission No
Cruise Control No

Safety in Ashok Leyland 3118 XL/1 BSIV

Service Brakes Air brakes
Parking Brakes
  • Pneumatic flick valve operated
  • Acting on rear wheels
ABS Yes
Differential Lock No
Fog Light No
Tubeless Tyres No
