Commercial Vehicles in India

  • Tata Magic Mantra

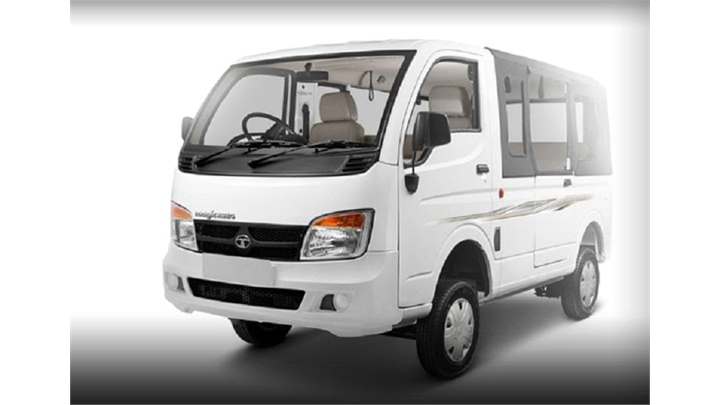

Tata Magic Mantra

Tata Magic Mantra is the successor of Tata Magic van in Small Commercial Vehicles passenger segment. It comes with a higher powered 40 HP engine for better pickup & gradeability. It offers seating options of 6 and 7 passenger seats and gets powered by a 2 cylinder 798 cc Turbo Charged engine mated to a 5 speed gearbox. This leads to Tata Magic Mantra mileage being the best in class. Tata Magic Mantra van comes with a best in class driveline warranty of 2 years / 72000 km and a service interval of 10000 km. Tata Magic Mantra van has parablic leaf springs in front and semi-elliptical leaf springs in rear. A wheelbase of 2100 mm ensures a small turning circle radius of 4.3 meters. Tata Magic Mantra van also comes with a higher ground clearance of 160 mm and bigger tyres of 13 inch rim diameter. To know more about Tata Magic Mantra price, click on below button.

Overview of Tata Magic Mantra

Seating Capacity
  • 6+D
  • 7+D
Power (Max.) 40 HP@3750 rpm
Torque (Max.) 100 Nm@1700-2000 rpm
GVW 1675 Kg
Warranty 2 years / 72,000 Km
Service Interval 10,000 Km

Engine & Performance of Tata Magic Mantra

Engine
  • 4 stroke, CRDi
  • Turbocharged, Intercooled
Engine Displacement 798 cc
Engine Cylinders 2
Power (Max.) 40 HP@3750 rpm
Torque (Max.) 100 Nm@1700-2000 rpm
Clutch
  • 190 mm dia
  • Dry friction, diaphragm type
Transmission 5 speed manual (5F+1R)
Gearbox
  • Synchromesh (Forward)
  • Sliding mesh (Reverse)
Gradeability 37%
Max Speed 80 Kmph
Emission Norms Compliance BSIV
Fuel Type Diesel
Fuel Tank Capacity 30 Litres

Design & Configuration of Tata Magic Mantra

GVW 1675 Kg
Seating Capacity
  • 6+D
  • 7+D
Axle Configuration 4X2
Front Axle Rigid beam construction
Front Suspension Parabolic Leaf Spring
Rear suspension
  • Semi-elliptical leaf springs
  • With hydraulic telescopic shock absorbers
Anti-roll bar Front and rear
Tyres 155 R13 LT 8PR Radial
Wheelbase 2100 mm
Turning Circle Radius 4.3 m
Ground Clearance 160 mm
Overall Length 3790 mm
Overall Width 1500 mm
Overall Height 1861 mm
Front Track 1300 mm
Rear Track 1320 mm

Features & Comfort in Tata Magic Mantra

Steering Type Mechanical type
Steering Adjustment No
Driver Seat Type Standard seat
Passenger Seat Type Bench seats
Air Conditioner (A/C) No
Music System No
Mobile Charging Point Yes
Bottle Holder Yes
Power Windows No
Additional
  • Digital clock
  • Lockable glove box

Safety in Tata Magic Mantra

Service Brakes
  • Front: Hydraulic Disc
  • Rear: Hydraulic Drum
Anti-Roll Bar Front and rear
Seat Belts Yes
Tubeless Tyres No
Fog Light Provision
Child Lock No
