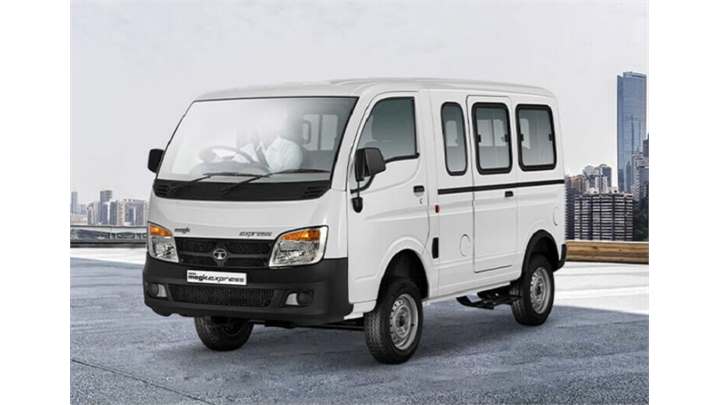

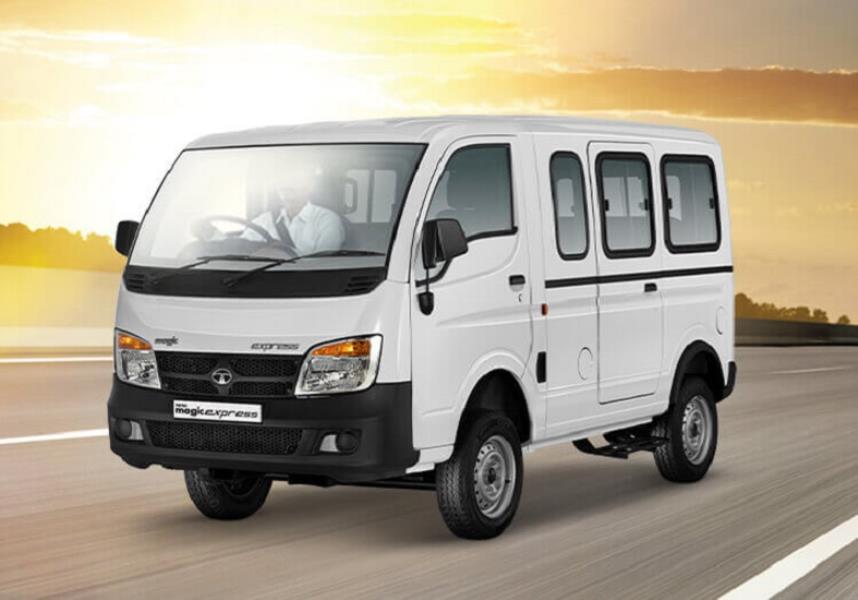

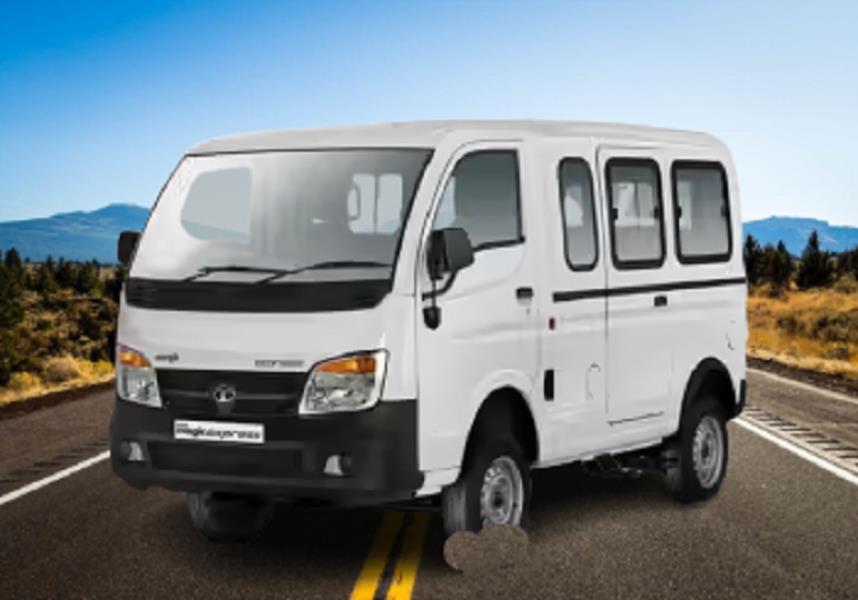

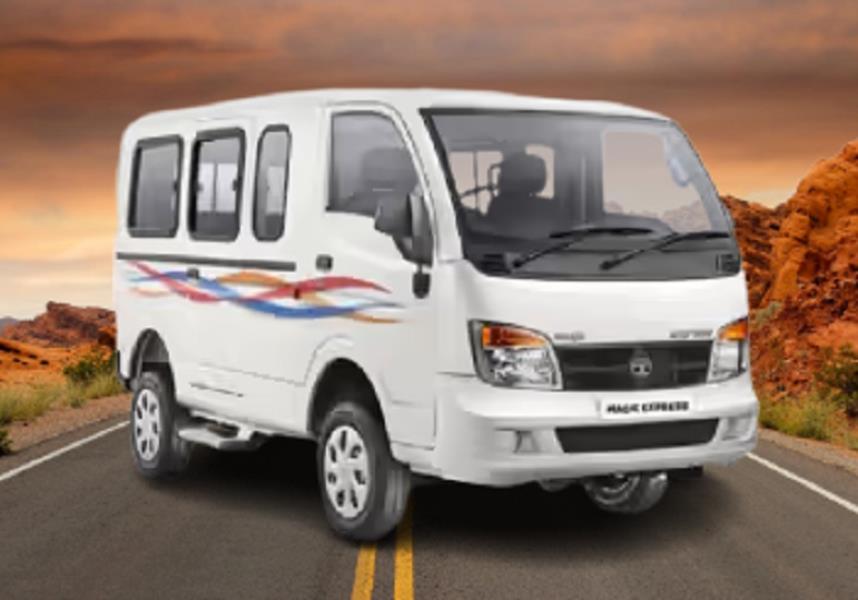

Overview of Tata Magic Express

Seating Capacity
  • 6+D
  • 7+D
Power (Max.) 40 HP@3750 rpm
Torque (Max.) 100 Nm@1700-2000 rpm
GVW 1675 Kg
Warranty 2 years / 72,000 Km
Service Interval 10,000 Km
Additional With hard-top body

Engine & Performance of Tata Magic Express

Engine
  • 4 stroke, CRDi
  • Turbocharged, Intercooled
Engine Displacement 798 cc
Engine Cylinders 2
Power (Max.) 40 HP@3750 rpm
Torque (Max.) 100 Nm@1700-2000 rpm
Clutch
  • 190 mm dia
  • Dry friction, diaphragm type

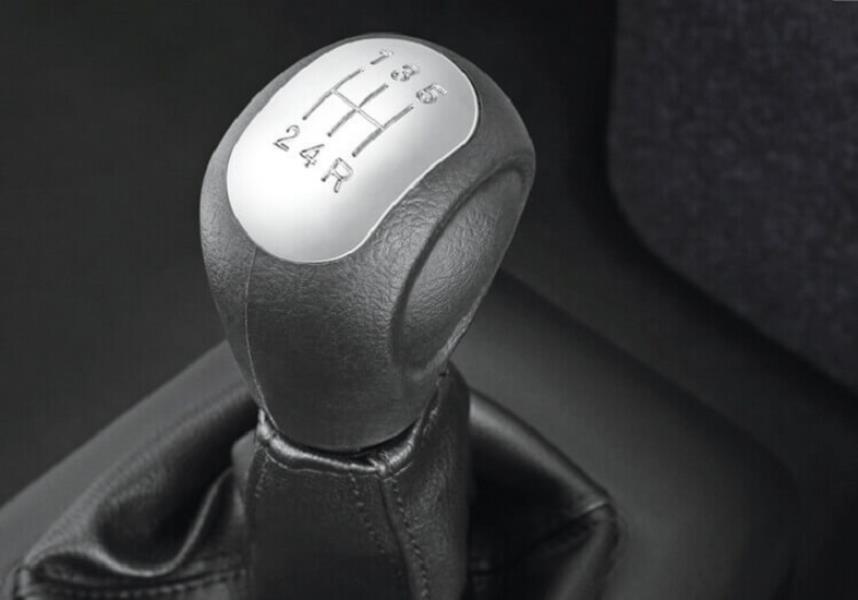

Transmission 5 speed manual (5F+1R)
Gearbox
  • Synchromesh (Forward)
  • Sliding mesh (Reverse)
Gradeability 37%
Max Speed 80 Kmph
Emission Norms Compliance BSIV
Fuel Type Diesel
Fuel Tank Capacity 30 Litres

Design & Configuration of Tata Magic Express

GVW 1675 Kg
Seating Capacity
  • 6+D
  • 7+D
Axle Configuration 4x2
Front Axle Rigid beam construction
Front Suspension Parabolic Leaf Spring
Rear suspension
  • Semi-elliptical leaf springs
  • With hydraulic telescopic shock absorbers
Anti-roll bar Front and rear
Tyres 155 R13 LT 8PR Radial
Wheelbase 2100 mm
Turning Circle Radius 4.3 m
Ground Clearance 160 mm
Overall Length 3790 mm
Overall Width 1500 mm
Overall Height 1861 mm
Front Track 1300 mm
Rear Track 1320 mm
Rear Overhang 710 mm

Features & Comfort in Tata Magic Express

Steering Type Mechanical type
Steering Adjustment No
Driver Seat Type Standard seat
Passenger Seat Type Bench seats
Air Conditioner (A/C) No
Music System No
Mobile Charging Point Yes
Bottle Holder Yes
Power Windows No
Additional
  • Digital clock
  • Lockable glove box

Safety in Tata Magic Express

Service Brakes
  • Front: Disc
  • Rear: Drum
Anti-Roll Bar Front and rear
Seat Belts Yes
Tubeless Tyres No
Fog Light Provision
Child Lock No
Additional Hard-top body
