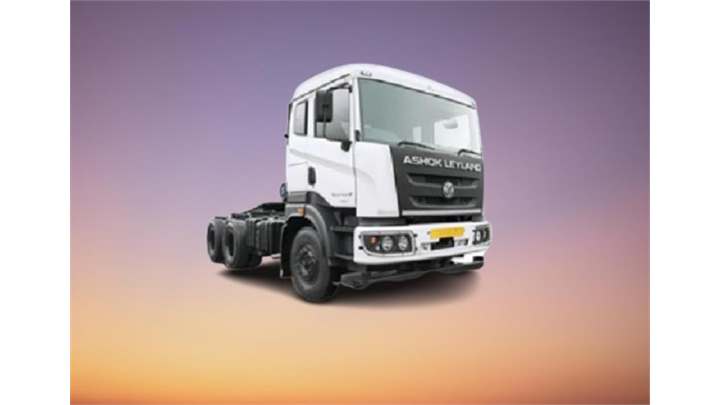

Ashok Leyland Captain 5523 Tractor Trailer Images Ashok Leyland Captain 5523 Tractor Trailer Images Ashok Leyland Captain 5523 Tractor Trailer Images Ashok Leyland Captain 5523 Tractor Trailer Images Ashok Leyland Captain 5523 Tractor Trailer Images
Ashok Leyland Captain 5523 Tractor Trailer Images
Ashok Leyland Captain 5523 Tractor Trailer Images
Ashok Leyland Captain 5523 Tractor Trailer Images
Ashok Leyland Captain 5523 Tractor Trailer Images
Ashok Leyland Captain 5523 Tractor Trailer Images

Ashok Leyland Captain 5523 Tractor Trailer Specifications

Rate This Vehicle
Check Discount Offer Check On Road Price
 Don't miss out on the best discount offers for this month

Key Details of Ashok Leyland Captain 5523 Tractor Trailer

Power
225
GVW
55000 Kg
Fuel
Diesel
Cylinders
4
Trucksbuses.com
Trucksbuses.com

Key Specifications of Ashok Leyland Captain 5523 Tractor Trailer

  • Engine
    N Series CRS
    iEGR Technology
  • Fuel Injection System
    Common Rail
  • Engine Cylinders
    4
  • Power
    225 HP@2200 rpm
  • Torque
    900 Nm@1100-1700 rpm
  • Clutch
    Single plate, 380 mm dia
    With clutch booster
  • Transmission
    9 speed manual (8F+1CR+1R)
  • Gradeability
    21%
  • Emission Norms Compliance
    BSIV
  • Fuel Type
    Diesel
  • Fuel Tank Capacity
    400 Litres
    Polymer tank
  • Electricals Battery
    2x12V
  • Gross Combination Weight
    55000 Kg
  • Cabin Type
    Sleeper cabin with 4 point suspension
  • Cabin Tilt mechanism
    Tiltable Cabin
  • Chassis Frame
    Ladder type joggled bolted with cross members
  • Axle Configuration
    6x4
  • Front Axle
    Forged I Beam, Reverse Elliot Type
  • Rear Axle
    Fully floating single-speed hypoid
    RAR 5.83:1
  • Front Suspension
    Parabolic leaf springs
  • Rear Suspension
    Semi-elliptical leaf springs
    Bogie (Optional)
  • Tyres
    Front : 295/80 R 22.5 Tubeless
    Rear : 10R20 Radial
    11R20 (Optional for front and rear)
  • Wheelbase
    3900 mm
  • Turning Circle Diameter
    16.62 m
  • Ground Clearance
    260 mm
  • Overall Length
    6850 mm
  • Overall Width
    2500 mm
  • Front Overhang
    1500 mm
  • Rear Overhang
    750 mm
  • Front Track
    2044 mm
  • Rear Track
    1870 mm
  • Chassis Depth
    279 mm
  • Chassis Flange width
    90 mm
  • Chassis Thickness
    8 mm

Ashok Leyland Captain 5523 Tractor Trailer Specification Highlights

Check all the Ashok Leyland Captain 5523 specifications on TrucksBuses in this section The main driveline of Ashok Leyland Captain 5523 includes a 4 cylinder N Series CRS, iEGR Technology engine that produces a maximum power of 225 HP and a torque of 900 Nm It gets mated to 9 speed manual (8F+1CR+1R), gearbox A gross weight of 55000 kg coupled with suitable trailer, allows the owner to carry multiple kinds of goods as per requirementAshok Leyland Captain 5523 comes with a beautiful looking sleeper cabin with wide variety of utility features for driver comfort Other Ashok Leyland Captain 5523 specifications like chassis, tyre, axle, turning circle dia, engine cc, gradeability are available in the tables above.

Frequently Asked Questions on Ashok Leyland Captain 5523 Tractor Trailer

Ashok Leyland Captain 5523 tipper comes with a standard warranty of 4 Years / 4 Lakh Km
Ashok Leyland Captain 5523 price starts from Rs 0. The 2023 price of Ashok Leyland Captain 5523 can vary slightly from state to state and city to city.
GCW of any tractor trailer is the sum total of empty kerb weight and the payload it can carry. Ashok Leyland Captain 5523 GVW is
Ashok Leyland Captain 5523 comes with 4 cylinder N Series CRS# iEGR Technology engine and the engine displacement is
Ashok Leyland Captain 5523 comes with Diesel fuel option and its fuel tank capacity is 400 Litres# Polymer tank
Gradeability of any truck defines its ability to climb upward slopes. The gradeability of Ashok Leyland Captain 5523 is 21%.
The tyre size of Ashok Leyland Captain 5523 is Front : 295/80 R 22.5 Tubeless# Rear : 10R20 Radial# 11R20 (Optional for front and rear)
In terms of performance, Ashok Leyland Captain 5523 produces a maximum power of 225 HP@2200 rpm and a maximum torque of 900 Nm@1100-1700 rpm
Ashok Leyland Captain 5523 comes with a 9 speed manual (8F+1CR+1R) transmission along with a Single plate, 380 mm dia# With clutch booster clutch
The monthly EMI of any truck depends on the interest rate offered by bank, down payment made by the buyer and the loan tenure. Considering a 10% down payment and 9.5% rate of interest, the EMI of Ashok Leyland Captain 5523 is expected to be around Rs Not Available for a 5 year period
Ashok Leyland Captain 5523 comes with Air Brakes, dual line
