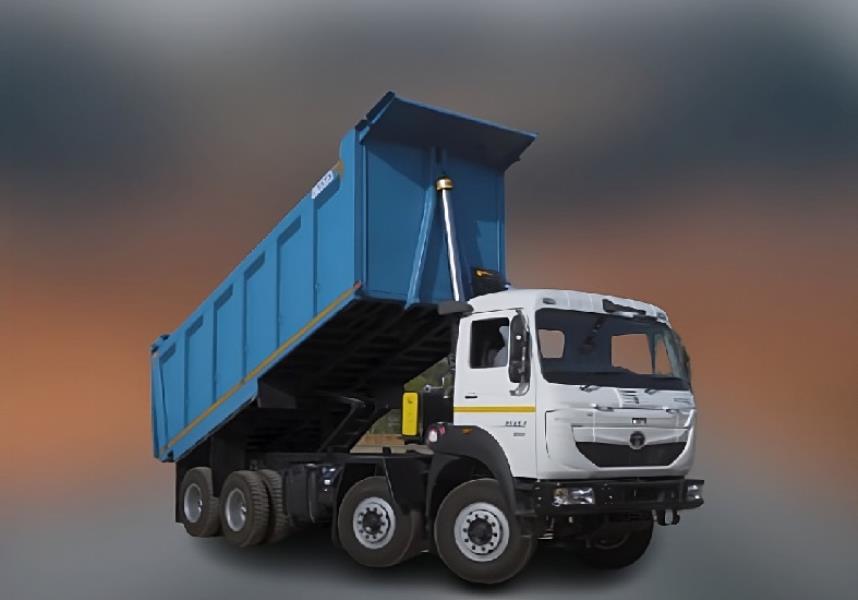

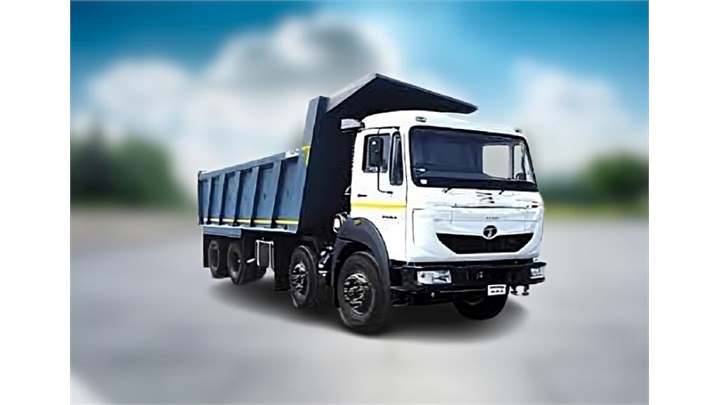

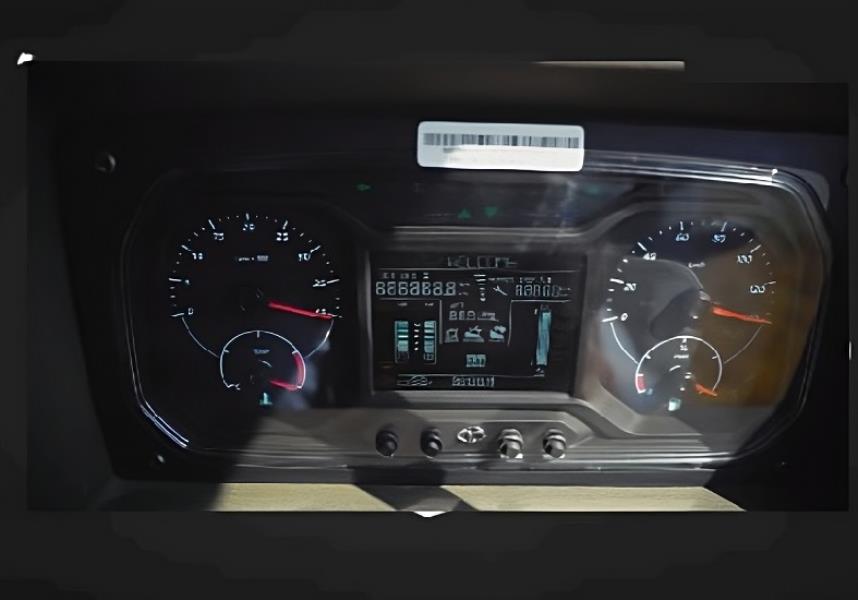

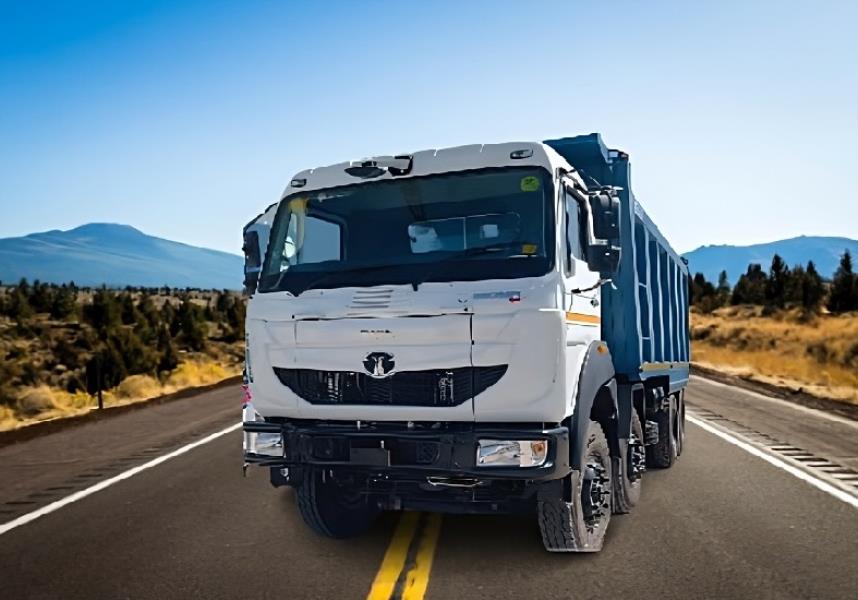

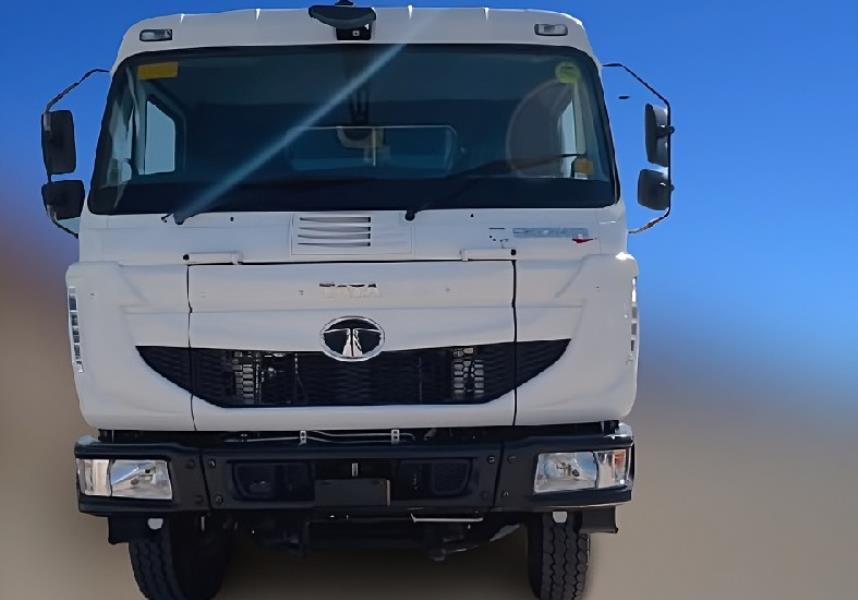

Tata Signa 3525.TK Lift Axle Tipper Images Tata Signa 3525.TK Lift Axle Tipper Images Tata Signa 3525.TK Lift Axle Tipper Images Tata Signa 3525.TK Lift Axle Tipper Images Tata Signa 3525.TK Lift Axle Tipper Images
Tata Signa 3525.TK Lift Axle Tipper Images
Tata Signa 3525.TK Lift Axle Tipper Images
Tata Signa 3525.TK Lift Axle Tipper Images
Tata Signa 3525.TK Lift Axle Tipper Images
Tata Signa 3525.TK Lift Axle Tipper Images

Tata Signa 3525.TK Lift Axle Tipper Specifications

Rate This Vehicle

From ₹ 54.82-71.43 Lakh*
*Ex-showroom Price

Check Discount Offer Check On Road Price
 Don't miss out on the best discount offers for this month

Key Details of Tata Signa 3525.TK Lift Axle Tipper

Power
250
GVW
35000 Kg
Fuel
Diesel
Engine
6692 cc
Cylinders
6
Trucksbuses.com
Trucksbuses.com

Key Specifications of Tata Signa 3525.TK Lift Axle Tipper

  • Engine
    Cummins ISBe 5.6L
  • Fuel Injection System
    Common Rail
  • Engine Displacement
    6692 cc
  • Engine Cylinders
    6
  • Power
    250 HP@2300 rpm
  • Torque
    950 Nm@1000-1700 rpm
  • Transmission
    6 speed (6F+1R)
  • Emission Norms Compliance
    BS6 OBD2
  • Fuel Type
    Diesel
  • Fuel Tank Capacity
    300 Litres
    Polymer tank
    With anti-fuel theft
  • GVW
    35000 Kg
  • Vehicle Configuration
    Cabin with Box body
  • Load Body Options
    14 / 20 Cu.M Box body
  • Cabin Type
    Day Cab
  • Cabin Tilt mechanism
    Hydraulically tiltable
  • Chassis Frame
    Ladder type straight frame
  • Axle Configuration
    8x2
  • Front Axle
    Forged I Beam, Reverse Elliot Type
    With lift axle
  • Rear Axle
    Single reduction, Hypoid gears, Fully Floating Axle
  • Front Suspension
    Parabolic leaf springs
  • Rear Suspension
    Semi elliptical leaf springs
  • Tyres
    295/90R20
    12+1 tyres
  • Wheelbase
    5580 mm

Tata Signa 3525.TK Lift Axle Tipper Specification Highlights

Check all the Tata Signa 3525.TK Lift Axle specifications on TrucksBuses in the table aboveThe main driveline of this Tata tipper includes a 6 cylinder Cummins ISBe 5.6L engine that produces a maximum power of 250 HP and a torque of 950 NmIt is matched with 6 speed (6F+1R), gearbox A gross weight of 35000 kg and multiple body configurations allows the owner to carry multiple kinds of loads as per requirement, in this Tata dumperTata Signa 3525.TK Lift Axle tipper comes with a day cab with multiple utility features for driver comfort Other Tata Signa 3525.TK Lift Axle tipper specifications like chassis, tyre, axle, turning circle dia, engine cc, gradeability are available here in the table above.

Frequently Asked Questions on Tata Signa 3525.TK Lift Axle Tipper

In terms of performance, Tata Signa 3525.TK Lift Axle produces a maximum power of 250 HP@2300 rpm and a maximum torque of 950 Nm@1000-1700 rpm
Tata Signa 3525.TK Lift Axle comes with a 6 speed (6F+1R) transmission along with a clutch
Tata Signa 3525.TK Lift Axle comes with Diesel fuel option and its fuel tank capacity is 300 Litres# Polymer tank# With anti-fuel theft
Tata Signa 3525.TK Lift Axle is available in 14 / 20 Cu.M Box body body
The monthly EMI of any truck depends on the interest rate offered by bank, down payment made by the buyer and the loan tenure. Considering a 10% down payment and 9.5% rate of interest, the EMI of Tata Signa 3525.TK Lift Axle is expected to be around Rs Not Available for a 5 year period
The tyre size of Tata Signa 3525.TK Lift Axle is 295/90R20# 12+1 tyres
Tata Signa 3525.TK Lift Axle comes with Air brakes
Tata Signa 3525.TK Lift Axle tipper comes with a standard warranty of 6 Years / 6000 Hrs on driveline
GVW of any truck is the sum total of empty kerb weight and the payload it can carry. Tata Signa 3525.TK Lift Axle GVW is 35000 Kg
