Download Tata Signa 3523.TK Lift Axle Tipper Brochure

Check out the Tata Signa 3523.TK Lift Axle Tipper PDF brochure at TrucksBuses.com with all features and specifications.

Key Details of Tata Signa 3523.TK Lift Axle Tipper

Power

220 HP

GVW

35000 Kg

Fuel

Diesel

Engine

5635 cc

Cylinders

Key Overview of Tata Signa 3523.TK Lift Axle Tipper

GVW (Kg)
35000 Kg
Axle Configuration
8x4
Engine
Cummins ISBe 5.6L
Power
220 HP@2300 rpm
Torque
850 Nm@1000-1600 rpm
Transmission
6 speed (6F+1R)
Variants
Cabin and chassis
Cabin with Box body
Load Body Options
14 / 20 Cu.M Box body
Warranty
6 Years / 6000 Hrs on driveline
Service Interval
1500 Hrs
Additional
Gear Shift Advisor
Fuel Economy Switch
Hill Start Assist

Tata Signa 3523.TK Lift Axle Tipper Highlights

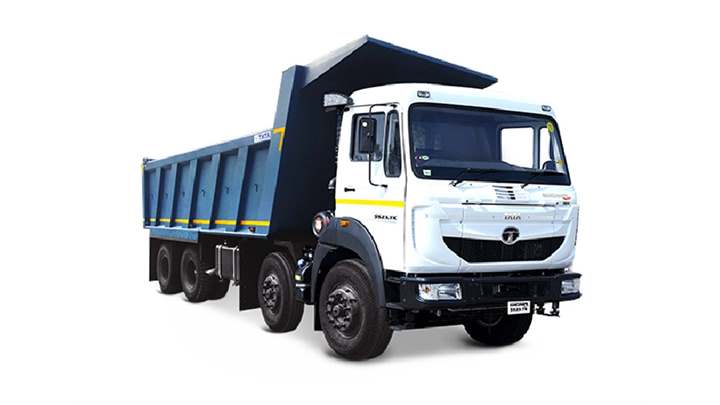

Tata Signa 3523.TK Lift Axle is a tipper with gross vehicle weight of 35000 kg. Powering this Tata tipper is 5635 cc 6 cylinder, Cummins ISBe 5.6L engine. Tata Signa 3523.TK Lift Axle tipper produces 220 HP of power and 850 Nm of maximum torque. The engine of this Tata Signa 3523.TK Lift Axle tipper is matched to a 6 speed (6F+1R) gearbox. This Tata Signa 3523.TK Lift Axle tipper comes in 8x4 axle configuration. Chassis underlying this Tata Signa 3523.TK Lift Axle tipper is ladder type straight frame. Signa 3523.TK Lift Axle tipper rear suspension duty is done by semi elliptical leaf springs. Tata Signa 3523.TK Lift Axle safety features include Air Brakes and seat belts. More details of the Tata Signa 3523.TK Lift Axle tipper features like mileage, fuel tank capacity, tyre, suspension, photos, etc are available in the sections above. It competes with other vehicles in the segment like Mahindra Blazo X 35 Tipper BS6 Tipper and Tata Prima 3530.K BS6 Tipper .

Tata Signa 3523.TK Lift Axle Tipper Brochure

Download Tata Signa 3523.TK Lift Axle Tipper brochure online. Check out the Tata Signa 3523.TK Lift Axle Tipper PDF brochure at TrucksBuses.com with all features and specifications.

Frequently Asked Questions on Tata Signa 3523.TK Lift Axle Tipper

What is the latest Tata Signa 3523.TK Lift Axle price in India ?

Tata Signa 3523.TK Lift Axle price starts from Rs 40.27-47.40 Lakh*. The 2023 price of Tata Signa 3523.TK Lift Axle can vary slightly from state to state and city to city.

What is the Tata Signa 3523.TK Lift Axle GVW tonnage capacity ?

GVW of any truck is the sum total of empty kerb weight and the payload it can carry. Tata Signa 3523.TK Lift Axle GVW is 35000 Kg

What is the engine capacity of Tata Signa 3523.TK Lift Axle tipper?

Tata Signa 3523.TK Lift Axle comes with 6 cylinder Cummins ISBe 5.6L engine and the engine displacement is 5635 cc

What is Tata Signa 3523.TK Lift Axle power and torque ?

In terms of performance, Tata Signa 3523.TK Lift Axle produces a maximum power of 220 HP@2300 rpm and a maximum torque of 850 Nm@1000-1600 rpm

What is the gearbox and transmission type in Tata Signa 3523.TK Lift Axle tipper ?

Tata Signa 3523.TK Lift Axle comes with a 6 speed (6F+1R) transmission along with a 380 mm dia# Organic clutch

What is Tata Signa 3523.TK Lift Axle gradeability ?

Gradeability of any truck defines its ability to climb upward slopes. The gradeability of Tata Signa 3523.TK Lift Axle is .

Tata Signa 3523.TK Lift Axle is available in which all body options ?

Tata Signa 3523.TK Lift Axle is available in 14 / 20 Cu.M Box body body

What is Tata Signa 3523.TK Lift Axle tyre size and number of wheels in this truck ?

The tyre size of Tata Signa 3523.TK Lift Axle is 295/90R20# 12+1 tyres

What is the type of brakes offered in Tata Signa 3523.TK Lift Axle ?

Tata Signa 3523.TK Lift Axle comes with Air brakes

What is the fuel tank capacity of Tata Signa 3523.TK Lift Axle ?

Tata Signa 3523.TK Lift Axle comes with Diesel fuel option and its fuel tank capacity is 300 Litres# Polymer tank# With anti-fuel theft

What is the warranty offered in Tata Signa 3523.TK Lift Axle tipper ?

Tata Signa 3523.TK Lift Axle tipper comes with a standard warranty of 6 Years / 6000 Hrs on driveline

What is the EMI of Tata Signa 3523.TK Lift Axle tipper ?

The monthly EMI of any truck depends on the interest rate offered by bank, down payment made by the buyer and the loan tenure. Considering a 10% down payment and 9.5% rate of interest, the EMI of Tata Signa 3523.TK Lift Axle is expected to be around Rs 85562 for a 5 year period
