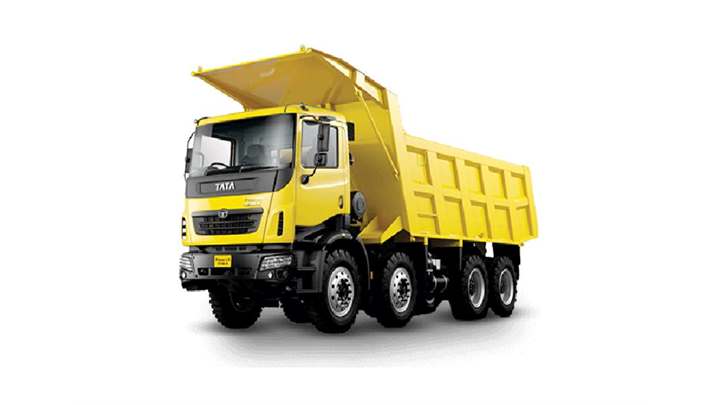

Tata Prima 3532.TK Tipper Specifications

Rate This Vehicle

Check Discount Offer Check On Road Price

Don't miss out on the best discount offers on Tata Prima 3532.TK Tipper for this month

Tata Prima 3532.TK - 12 Tyre Tipper Highlights

GVW

35000 Kg

Power

320 HP

Fuel Type

Diesel

Key Specifications of Tata Prima 3532.TK Tipper

Engine
Configuration

Tata Prima 3532.TK Tipper Engine
Engine
Cummins ISBe 6.7L
Tata Prima 3532.TK Tipper Fuel Injection System
Fuel Injection System
Common Rail
Tata Prima 3532.TK Tipper Engine Displacement
Engine Displacement
6702 cc
Tata Prima 3532.TK Tipper Engine Cylinder
Engine Cylinder
6
Tata Prima 3532.TK Tipper Power Max
Power Max
320 HP
Tata Prima 3532.TK Tipper Torque Max
Torque Max
1200 Nm
Tata Prima 3532.TK Tipper Clutch
Clutch
430 mm dia
Organic
Tata Prima 3532.TK Tipper Transmission
Transmission
9-speed (9F+1R)
Tata Prima 3532.TK Tipper Gearbox
Gearbox
G1150
Tata Prima 3532.TK Tipper Max Speed
Max Speed
60 Kmph
Tata Prima 3532.TK Tipper Emission Norms
Emission Norms
BS6 OBD2
Tata Prima 3532.TK Tipper Fuel Type
Fuel Type
Diesel
Tata Prima 3532.TK Tipper Fuel Tank Capacity
Fuel Tank Capacity
300 Litres
With anti fuel theft

Tata Prima 3532.TK Tipper GVW
GVW
35000 Kg
Tata Prima 3532.TK Tipper Cabin Type
Cabin Type
Day Cabin
Tata Prima 3532.TK Tipper Vehicle Configuration
Vehicle Configuration
Cabin with box body
Cabin with scoop body new
Tata Prima 3532.TK Tipper Cabin Tilt Mechanism
Cabin Tilt Mechanism
Hydraulically tiltable
Tata Prima 3532.TK Tipper Load Body Options
Load Body Options
23 Cu.M Box
Tata Prima 3532.TK Tipper Chassis Frame
Chassis Frame
Heavy duty straight frame with revitted / bolted cross member
Tata Prima 3532.TK Tipper Axle Configuration
Axle Configuration
8x4
Tata Prima 3532.TK Tipper Front Axle
Front Axle
Forged | Beam, Reverse elliot type
Tata Prima 3532.TK Tipper Rear Axle
Rear Axle
Single reduction hypoid gears
Fully floating axle
Tata Prima 3532.TK Tipper Front Suspension
Front Suspension
Parabolic leaf springs
Tata Prima 3532.TK Tipper Rear Suspension
Rear Suspension
Bogie suspension
Bell crank suspension (Optional)
Tata Prima 3532.TK Tipper Tyres
Tyres
11x20 (Nylon)
11R20 (Radial)
Tata Prima 3532.TK Tipper Wheelbase
Wheelbase
5200 mm

Tata Prima 3532.TK Tipper Specification Highlights

Tata Prima 3532.TK tipper can be specified on the basis of its engine performance and body configuration. The Tata Prima 3532.TK Tipper offers a powerful Cummins ISBe 6.7L engine that produces a power of 320 horsepower and a high-end torque of 1200 Nm. The power transmission of the new Tata Prima 3532.TK tipper is being done by a 9-speed manual shift gearbox of synchromesh type. It has a common rail fuel injection system that runs on diesel fuel with a fuel tank capacity of 300 litres. In this Tata Prima 3532.TK tipper, you will get a cabin with chassis and a cabin with scoop body. The latest Tata Prima 3532.TK tipper with organic clutch type with 430 mm dia. This Prima 3532.TK tipper comes with a load body option of 23 Cu.M box. The front and rear suspension has parabolic leaf springs and bogie suspension, respectively.
