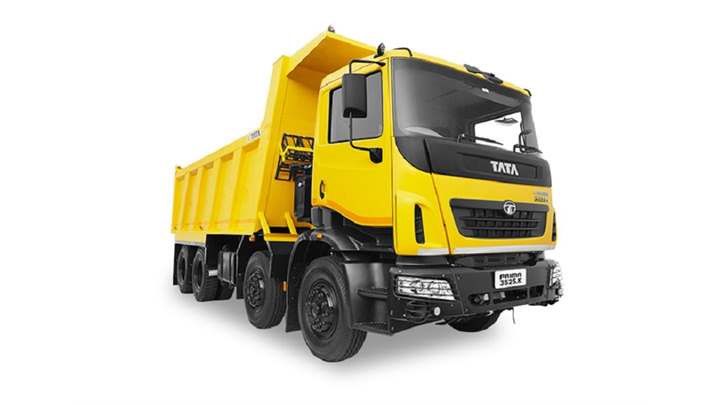

Key Details of Tata Prima 3525.TK Bogie Tipper

Power
250
GVW
35000 Kg
Fuel
Diesel
Engine
6692 cc
Cylinders
6
Trucksbuses.com
Trucksbuses.com

Key Specifications of Tata Prima 3525.TK Bogie Tipper

  • Engine
    Cummins ISBe 6.7L
  • Fuel Injection System
    Common Rail
  • Engine Displacement
    6692 cc
  • Engine Cylinders
    6
  • Power
    250 HP@2300 rpm
  • Torque
    950 Nm@1000-1700 rpm
  • Clutch
    430 mm dia
    Organic
  • Transmission
    9 speed (9F+1R)
  • Gearbox
    G1150
  • Emission Norms Compliance
    BS6
  • Fuel Type
    Diesel
  • Fuel Tank Capacity
    300 Litres
    Polymer tank
    With anti-fuel theft
  • GVW
    35000 Kg
  • Vehicle Configuration
    Cabin with Box body
  • Load Body Options
    23 Cu.M Box body
  • Cabin Type
    Day Cab
  • Cabin Tilt mechanism
    Hydraulically tiltable
  • Chassis Frame
    Ladder type straight frame
  • Front Axle
    Forged I Beam, Reverse Elliot Type
  • Rear Axle
    Single reduction, Hypoid gears, Fully Floating Axle
    RA 109
  • Front Suspension
    Parabolic leaf springs
  • Rear Suspension
    Bogie suspension
  • Anti Roll Bar
    Yes
  • Tyres
    11R20
    12+1 tyres
  • Wheelbase
    5250 mm

Tata Prima 3525.TK Bogie Tipper Specification Highlights

Explore now the latest specification of Tata Prima 3525.TK Bogie at TrucksBuses. The main driveline of this 12 wheeler Tata Tipper includes a 6 cylinders, cummins ISBE 6.7 L engine that produces 250 horsepower and 950 Nm of torque. The Tata 12 wheeler dumper matched with 9 speed G1150 gearbox. The new Prima 3525.TK bogie 12 chakka has a gross vehicle weight of 35000 kilogram. And allowing you to carry loads of multiple body configurations, this Tata dumper Prima 3525.TK Bogie comes with a day cab with multiple utility features. Other specifications of new Tata Prima 3525.TK Bogie tipper for driver comfort like cabin with Box body, hydraulically tiltable cabin, ladder type straight frame and parabolic leaf springs are given in the above table.

Frequently Asked Questions on Tata Prima 3525.TK Bogie Tipper

GVW of any truck is the sum total of empty kerb weight and the payload it can carry. Tata Prima 3525.TK Bogie GVW is 35000 Kg
Tata Prima 3525.TK Bogie price starts from Rs 51.70-58.19 Lakh*. The 2023 price of Tata Prima 3525.TK Bogie can vary slightly from state to state and city to city.
In terms of performance, Tata Prima 3525.TK Bogie produces a maximum power of 250 HP@2300 rpm and a maximum torque of 950 Nm@1000-1700 rpm
Tata Prima 3525.TK Bogie comes with Diesel fuel option and its fuel tank capacity is 300 Litres# Polymer tank# With anti-fuel theft
Tata Prima 3525.TK Bogie comes with a 9 speed (9F+1R) transmission along with a 430 mm dia# Organic clutch
The monthly EMI of any truck depends on the interest rate offered by bank, down payment made by the buyer and the loan tenure. Considering a 10% down payment and 9.5% rate of interest, the EMI of Tata Prima 3525.TK Bogie is expected to be around Rs 107553 for a 5 year period
Tata Prima 3525.TK Bogie is available in 23 Cu.M Box body body
The tyre size of Tata Prima 3525.TK Bogie is 11R20# 12+1 tyres
Tata Prima 3525.TK Bogie comes with Air brakes
Tata Prima 3525.TK Bogie tipper comes with a standard warranty of 6 Years / 6000 Hrs on driveline
