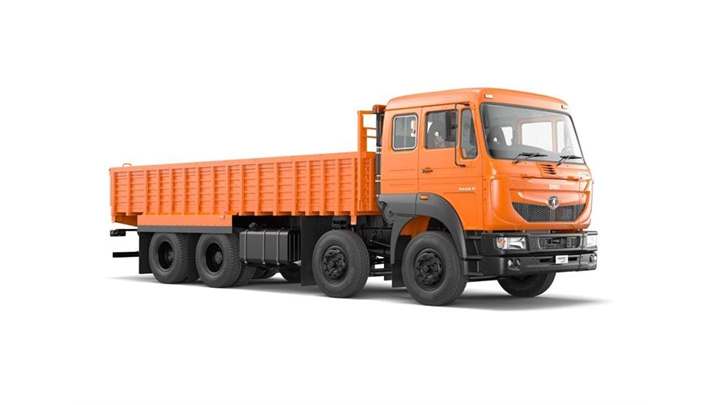

Overview of Tata Signa 3118.T

GVW 31000 Kg
Engine
  • Cummins 6BT 5.9
  • Direct Injection, Turbo-charged
Power (Max.) 178 HP@2500 rpm
Torque (Max.) 685 Nm@1400-1600 rpm
Axle Configuration 8x2
Vehicle Configuration
  • Cabin and chassis
  • Cabin with load body options
Load Body Options
  • Fixed Side Deck
  • High Side Deck
Warranty
  • 4 Years / 4 Lakh Km on driveline
  • 2 Years / 2 Lakh Km on vehicle
Service Interval 60,000 Km (Oil change)

Engine & Performance of Tata Signa 3118.T

Engine
  • Cummins 6BT 5.9
  • Direct Injection, Turbo-charged
Fuel Injection System Mechanical FIP
Engine Displacement 5883 cc
Engine Cylinders 6
Power (Max.) 178 HP@2500 rpm
Torque (Max.) 685 Nm@1400-1600 rpm
Clutch
  • 380 mm dia
  • With clutch booster
Transmission 6 speed manual (6F+1R)
Gearbox
  • G750
  • 6F-Synchromesh
  • 1R- Constant mesh
Gradeability 21.60%
Max Speed 80 Kmph
Emission Norms Compliance BSIII
Fuel Type Diesel
Fuel Tank Capacity 400 Litres
Electricals / Battery
  • 24V
  • Alternator: 55 A

Design & Configuration of Tata Signa 3118.T

GVW 31000 Kg
Kerb Weight 7700 Kg
Vehicle Configuration
  • Cabin and chassis
  • Cabin with load body options
Load Body Options
  • Fixed Side Deck
  • High Side Deck
Cabin Type Sleeper cabin
Chassis Frame Ladder type with cross members
Axle Configuration 8x2
Front Axle Forged I Beam, Reverse Elliot Type
Rear Axle Fully Floating, Single reduction hypoid gears
Front Suspension
  • Parabolic leaf springs
  • With telescopic shock absorbers
Rear Suspension
  • Semi-elliptical leaf springs
  • With telescopic shock absorbers
Tyres
  • 10R20-16 PR
  • Radial tyres
  • 12+1 tyres
Wheelbase 5505 mm
Turning Circle Diameter 19.9 m
Overall Length 9420 mm
Overall Width 2400 mm
Chassis Depth 285 mm
Chassis Flange width 65 mm
Chassis Thickness 7 mm

Features & Comfort in Tata Signa 3118.T

Cabin Suspension Fully suspended
Steering Type Power Steering
Steering Adjustment Tilt and telescopic
Driver Seat Type
  • 4 way adjustable
  • Mechanically suspended
Air Conditioner (A/C) Optional
Openable Quarter Ventilation Glass No
Instrument Cluster Digital
Telematics / GPS Tracking
  • Telematics unit as standard fitment
  • Service subscription free for 3 years
Power Windows No
Music System Optional
Automatic Transmission No
Cruise Control No

Safety in Tata Signa 3118.T

Service Brakes Air brakes
Exhaust Brake Yes
ABS Yes
Differential Lock No
Seat Belts Yes
Fog Light Optional
Tubeless Tyres No
