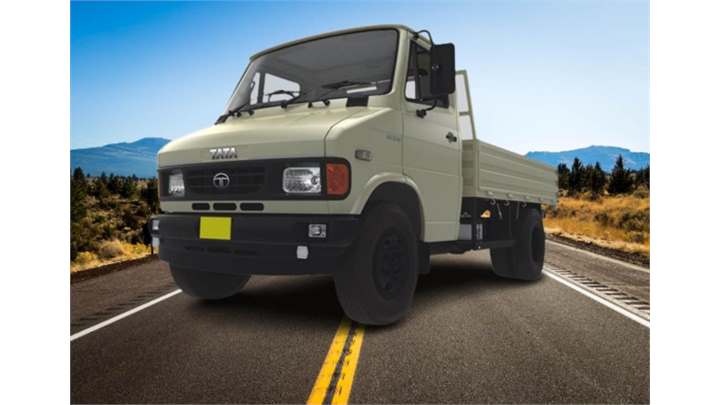

Overview of Tata SFC 407 Ex TT BSIV

GVW 5500 Kg
Engine
  • 4SP CR
  • Turbo Intercooled
Power (Max.) 85 HP@ 2800 rpm
Torque (Max.) 250 Nm@1400-2400 rpm
Axle Configuration 4x2
Vehicle Configuration
  • Cabin and chassis
  • Cabin with load body
Load Body Options Fixed Side Deck
Loading Span 9.8 ft
Warranty 3 Years / 3 Lakh Km on driveline
Service Interval 20,000 Km

Engine & Performance of Tata SFC 407 Ex TT BSIV

Engine
  • 4SP CR
  • Turbo Intercooled
Fuel Injection System
  • Common Rail
  • Electronic Delhpi
Engine Displacement 2956 cc
Engine Cylinders 4
Power (Max.) 85 HP@ 2800 rpm
Torque (Max.) 250 Nm@1400-2400 rpm
Clutch 280 mm dia
Transmission 5 speed manual (5F+1R)
Gearbox G 380, Synchromesh type
Gradeability 29%
Max Speed 96 Kmph
Emission Norms Compliance BSIV
Fuel Type Diesel
Fuel Tank Capacity 60 Litres
Electricals / Battery
  • 12V, 70 Ah
  • Alternator: 75 Amps

Design & Configuration of Tata SFC 407 Ex TT BSIV

GVW 5300 Kg
Kerb Weight 2422 Kg (FSD)
Vehicle Configuration
  • Cabin and chassis
  • Cabin with load body
Load Body Options Fixed Side Deck
Loading Span 9.8 ft
Cabin Type Semi-forward day cab
Cabin Tilt mechanism NA
Chassis Frame Ladder type with cross members
Axle Configuration 4x2
Front Axle Forged I Beam, Reverse Elliot Type
Rear Axle Fully Floating, Single reduction hypoid gears
Front Suspension
  • Semi-elliptical leaf springs
  • With telescopic shock absorbers
Rear Suspension
  • Semi-elliptical leaf springs
  • With telescopic shock absorbers
Anti-Roll Bar Front only
Tyres
  • 7.00x16 -12PR
  • 6+1 tyres
Wheelbase 3300 mm
Turning Circle Diameter 12 m
Ground Clearance 187 mm
Overall Length 5050 mm
Overall Width 2016 mm
Overall Height 2257 mm

Features & Comfort in Tata SFC 407 Ex TT BSIV

Cabin Suspension No
Steering Type Mechanical type
Steering Adjustment No
Driver Seat Type 4 way adjustable
Air Conditioner (A/C) No
Openable Quarter Ventilation Glass Yes
Instrument Cluster
  • Analog
  • With LED display
Telematics / GPS Tracking No
Power Windows No
Music System No
Mobile Charging Point No
Bottle Holder Yes
Automatic Transmission No
Cruise Control No

Safety in Tata SFC 407 Ex TT BSIV

Service Brakes Hydraulic brakes
Parking Brakes
  • Cable operated
  • Acting on rear axle
Exhaust Brake Yes
ABS No
Anti-Roll Bar Front only
Differential Lock No
Seat Belts Yes
Reverse Parking Buzzer Yes
Fog Light Yes
Tubeless Tyres No
