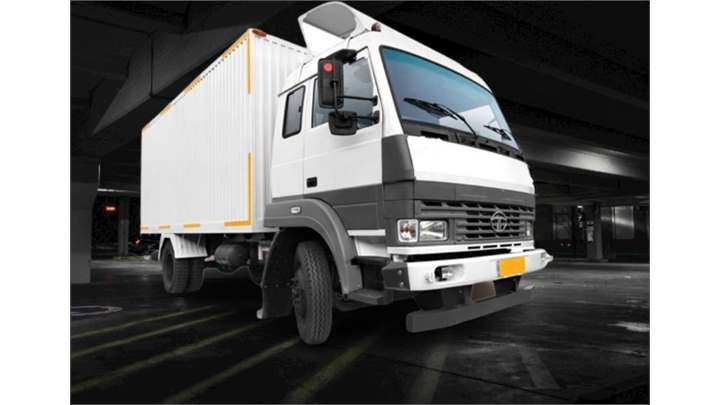

Overview of Tata LPT 1613 BSIV

GVW 16200 Kg
Engine
  • Tata 697 TCIC CRDi
  • EGR Technology
Power (Max.) 136 HP@2400 rpm
Torque (Max.) 490 Nm@1400-1800 rpm
Axle Configuration 4x2
Vehicle Configuration
  • Face Cowl and chassis
  • Cabin and chassis
  • Cabin with load body options
Load Body Options
  • Fixed Side Deck
  • High Side Deck
  • Drop Side Deck
Loading Span
  • 18 ft
  • 20 ft
  • 24 ft
  • 32 ft
Warranty
  • 6 Years / 6 Lakh Km on driveline
  • 3 Years / 3 Lakh Km on vehicle
Service Interval 60,000 Km (Oil change)
Additional Multi Drive Mode: Heavy, Light

Engine & Performance of Tata LPT 1613 BSIV

Engine
  • Tata 697 TCIC CRDi
  • EGR Technology
Fuel Injection System Common Rail
Engine Displacement 5675 cc
Engine Cylinders 6
Power (Max.) 136 HP@2400 rpm
Torque (Max.) 490 Nm@1400-1800 rpm
Clutch
  • 352 mm dia
  • Organic
Transmission
  • 6 speed manual (6F+1R)
  • With Cable shift mechanism
Gearbox GBS 600 OD
Gradeability 23%
Max Speed 80 Kmph
Emission Norms Compliance BSIV
Fuel Type Diesel
Fuel Tank Capacity 225 Litres
Electricals / Battery
  • 2x12V, 100 Ah
  • Alternator: 75 Amps

Design & Configuration of Tata LPT 1613 BSIV

GVW 16200 Kg
Kerb Weight 4500 Kg
Vehicle Configuration
  • Face Cowl and chassis
  • Cabin and chassis
  • Cabin with load body options
Load Body Options
  • Fixed Side Deck
  • High Side Deck
  • Drop Side Deck
Loading Span
  • 18 ft
  • 20 ft
  • 24 ft
  • 32 ft
Cabin Type Sleeper cabin
Cabin Tilt mechanism Hydraulically tiltable
Chassis Frame Ladder type with cross members
Axle Configuration 4x2
Front Axle Forged I Beam, Reverse Elliot Type
Rear Axle
  • RA 109 RR
  • Single reduction hypoid gears
Front Suspension Semi elliptical leaf springs
Rear Suspension Semi elliptical leaf springs
Tyres
  • 10R20-16 PR
  • Radial tyres
  • 6+1 tyres
Wheelbase
  • 4225 mm
  • 4855 mm
  • 5195 mm
Turning Circle Diameter
  • 16.8 m (4225 wb)
  • 19 m (4855 wb)
Ground Clearance 259 mm
Overall Length
  • 7380 mm (4225 wb)
  • 8325 mm (4855 wb)
Overall Width 2440 mm
Front Overhang 1185 mm
Rear Overhang
  • 1970 mm (4225 wb)
  • 2285 mm (4855 wb)
Front Track 1964 mm
Rear Track 1817 mm
Chassis Depth 223 mm
Chassis Flange width 60 mm
Chassis Thickness 7 mm

Features & Comfort in Tata LPT 1613 BSIV

Cabin Suspension Semi suspended
Steering Type Power Steering
Steering Adjustment No
Driver Seat Type 6 way adjustable
Air Conditioner (A/C) Optional
Openable Quarter Ventilation Glass No
Instrument Cluster Digital
Telematics / GPS Tracking Optional
Power Windows No
Music System No
Automatic Transmission No
Cruise Control No

Safety in Tata LPT 1613 BSIV

Service Brakes Air brakes
Parking Brakes
  • Graduated valve controlled spring brake
  • Acting on rear axle
ABS Yes
Differential Lock No
Seat Belts Yes
Reverse Parking Buzzer Yes
Fog Light No
Tubeless Tyres No
