Tata 709g LPT CNG Twin Tyre BS6 truck specifications

Name: Tata 709g LPT CNG Twin Tyre
Brand: Tata
SKU: TBN-20-67D1CA

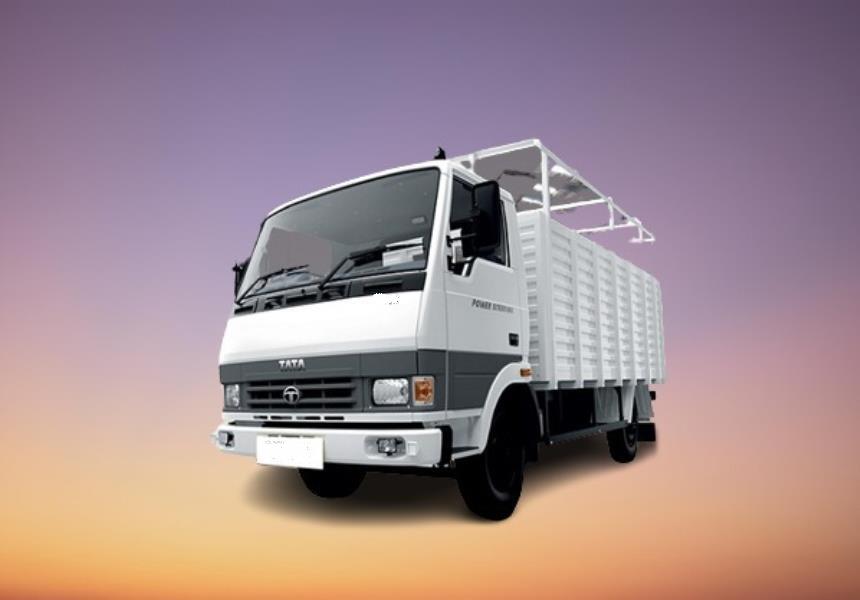

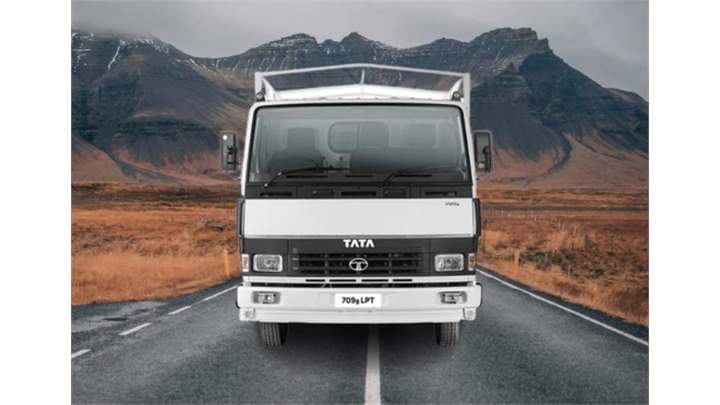

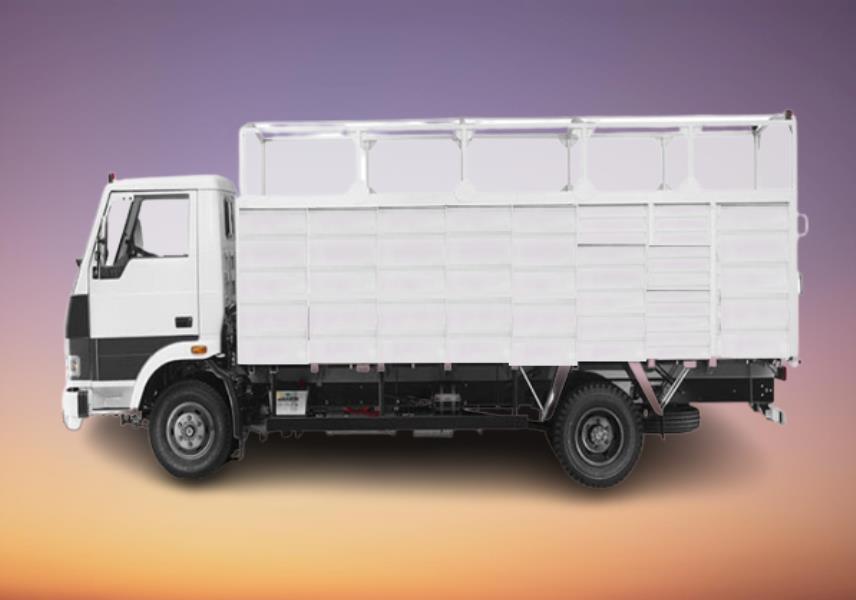

Tata 709g LPT CNG Twin Tyre Truck Images

Rate This Vehicle

From ₹ 17.64-18.71 Lakh*
*Ex-showroom Price

Check Discount Offer Check On Road Price

Don't miss out on the best discount offers for this month

Download Tata 709g LPT CNG Twin Tyre Truck Brochure

Check out the Tata 709g LPT CNG Twin Tyre Truck PDF brochure at TrucksBuses.com with all features and specifications.

Key Details of Tata 709g LPT CNG Twin Tyre Truck

Power

GVW

7490 Kg

Fuel

CNG

Engine

3783 cc

Cylinders

Key Specifications of Tata 709g LPT CNG Twin Tyre Truck

Engine
Configuration

Engine
3.8L SGI
Naturally Aspirated
Engine Displacement
3783 cc
Engine Cylinders
4
Power
85 HP@2800 rpm
Torque
285 Nm@1200-1600 rpm
Clutch
280 mm dia
Transmission
5 speed (5F+1R)
Gearbox
GBS 27
Emission Norms Compliance
BS6
Fuel Type
CNG
Fuel Tank Capacity
300 Litres
Electricals Battery
12V, 75 Ah
Alternator: 65 Amps

GVW
7490 Kg
Vehicle Configuration
Cabin chassis with PTO
Cabin with load body
Load Body Options
Fixed Side Deck
High Side Deck
Loading Span
17 ft
Cabin Type
Day cab
Cabin Tilt mechanism
Manually tiltable
Chassis Frame
Ladder type with cross members
Axle Configuration
4x2
Front Axle
Forged I Beam, Reverse Elliot Type
Rear Axle
Banjo type
Front Suspension
Semi elliptical leaf springs
With telescopic shock absorbers
Rear Suspension
Semi elliptical leaf springs
With telescopic shock absorbers
Tyres
7.50x16 -16 PR
6+1 tyres
Wheelbase
3800 mm
Turning Circle Diameter
13.8 m
Ground Clearance
230 mm
Overall Length
7170 mm
Overall Width
2255 mm
Overall Height
2940 mm
Load Body Width
2117 mm / 6.94 ft

Tata 709g LPT CNG Twin Tyre Truck Specification Highlights

Check all the Tata 709g LPT CNG Twin Tyre specifications on TrucksBuses in the table above The main driveline of this Tata truck includes a 3783 cc 4 cylinder engine that produces a maximum power of 85 HP and a torque of 285 Nm It gets mated to 5 speed (5F+1R), GBS 27 gearbox A gross weight of 7490 kg and multiple configurations allows the owner to carry multiple kinds of goods as per requirement There are multiple features in this Tata truck for enhancing driver comfort Other Tata 709g LPT CNG Twin Tyre truck specifications like chassis, tyre, axle, turning circle dia, engine cc, gradeability are available here in the tables above.

Tata 709g LPT CNG Twin Tyre Truck Brochure

Download Tata 709g LPT CNG Twin Tyre Truck brochure online. Check out the Tata 709g LPT CNG Twin Tyre Truck PDF brochure at TrucksBuses.com with all features and specifications.

Frequently Asked Questions on Tata 709g LPT CNG Twin Tyre Truck

What is the EMI of Tata 709g LPT CNG Twin Tyre ?

The monthly EMI of any truck depends on the interest rate offered by bank, down payment made by the buyer and the loan tenure. Considering a 10% down payment and 9.5% rate of interest, the EMI of Tata 709g LPT CNG Twin Tyre is expected to be around Rs 32593 for a 5 year period
