What is Tata Magic Express School gradeability ?

Gradeability of any truck defines its ability to climb upward slopes. The gradeability of Tata Magic Express School is 38%.

What is Tata Magic Express School tyre size ?

The tyre size of Tata Magic Express School is 155 R13

What is the gearbox and transmission type in Tata Magic Express School ?

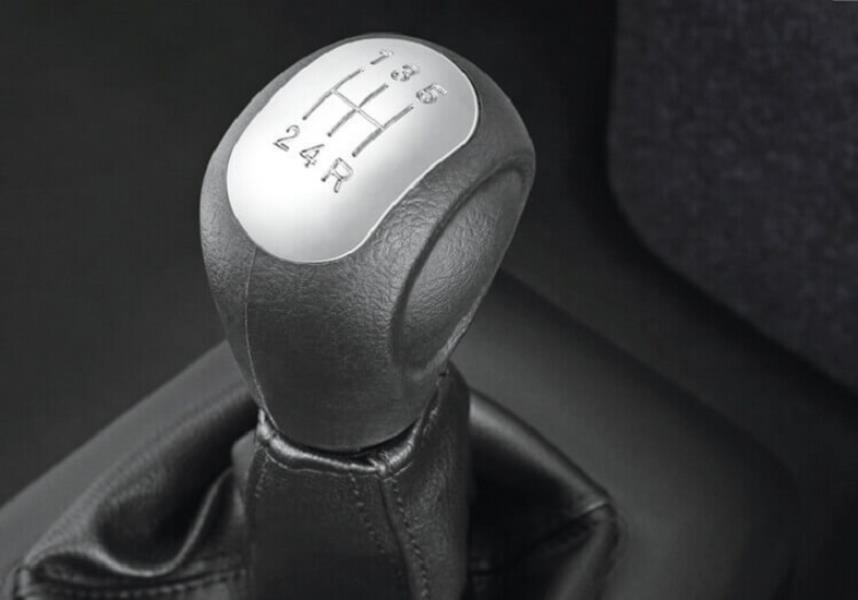

Tata Magic Express School comes with a 5 speed (5F+1R) transmission

What is the latest Tata Magic Express School price in India ?

Tata Magic Express School price starts from Rs 7.34 Lakh* Onwards . The 2023 price of Tata Magic Express School can vary slightly from state to state and city to city.

What is the engine capacity of Tata Magic Express School van ?

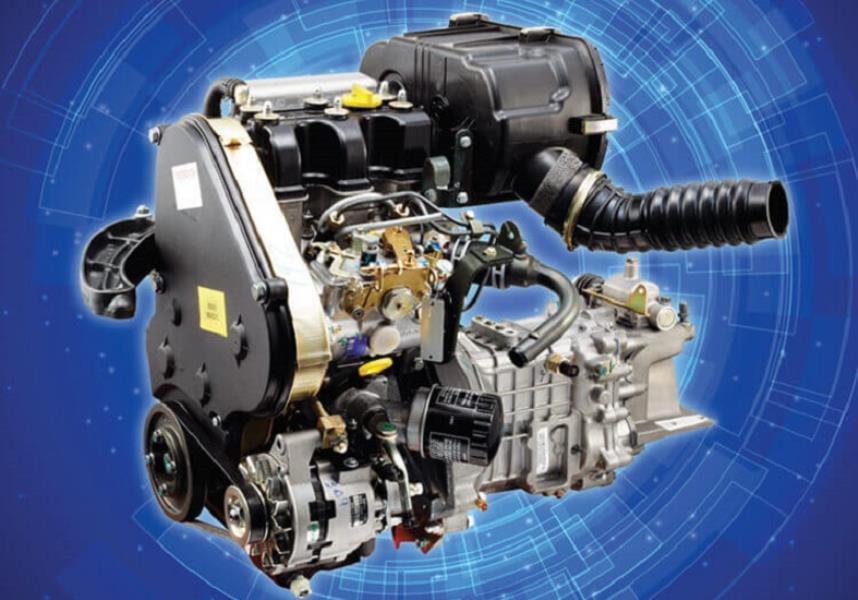

Tata Magic Express School comes with 2 cylinder 0.8L DI, Common Rail# SCR technology engine and the engine displacement is 798 cc

What is Tata Magic Express School power and torque ?

In terms of performance, Tata Magic Express School produces a maximum power of 44 HP@3750 rpm and a maximum torque of 110 Nm@1700-2000 rpm

Tata Magic Express School specifications

Q: What is the fuel tank capacity of Tata Magic Express School ?

Tata Magic Express School comes with Diesel fuel option and its fuel tank capacity is Diesel: 30 Litres# DEF: 10 Litres

Rate This Vehicle

From ₹ 7.34 Lakh* Onwards
*Ex-showroom Price

Check Discount Offer Check On Road Price

Don't miss out on the best discount offers for this month

Download Tata Magic Express School Van Brochure

Check out the Tata Magic Express School Van PDF brochure at TrucksBuses.com with all features and specifications.

Key Details of Tata Magic Express School Van

Power

GVW

1950 Kg

Fuel

Diesel

Engine

798 cc

Cylinders

Key Specifications of Tata Magic Express School Van

Engine
Configuration

Engine
0.8L DI, Common Rail
SCR technology
Engine Displacement
798 cc
Engine Cylinders
2
Power
44 HP@3750 rpm
Torque
110 Nm@1700-2000 rpm
Clutch
190 mm dia dry friction
Transmission
5 speed (5F+1R)
Gearbox
Synchromesh
Gradeability
38%
Max Speed
80 Kmph
Emission Norms Compliance
BS6
Fuel Type
Diesel
Fuel Tank Capacity
Diesel: 30 Litres
DEF: 10 Litres

GVW
1950 Kg
Seating Capacity
9+D
Axle Configuration
4x2
Front wheel drive
Front Axle
Rigid beam construction
Front Suspension
Parabolic Leaf Spring
Rear Suspension
Semi elliptical leaf springs
With telescopic shock absorbers
Anti Roll Bar
Front and rear
Tyres
155 R13
Wheelbase
2100 mm
Turning Circle Diameter
8.6 m
Ground Clearance
150 mm
Overall Length
3790 mm
Overall Width
1500 mm
Overall Height
1890 mm
Front Track
1300 mm
Rear Track
1320 mm
Rear Overhang
710 mm

Tata Magic Express School Van Specification Highlights

When it comes to Tata Magic Express School specifications, we can break it into engine performance related parameters and the design related aspectsTata Magic Express School comes with a 0.8L DI, Common Rail, SCR technology diesel engine with 798 cc displacement Matched with a 5 speed (5F+1R) transmission, superior Tata Magic Express School mileage and a fuel tank capacity of diesel: 30 litres, def: 10 litres, one can travel miles without refueling This Tata small commercial vehicle comes fitted with tyres of the size 155 r13 offering a superior 150 mm ground clearance.

Tata Magic Express School Van Brochure

Download Tata Magic Express School Van brochure online. Check out the Tata Magic Express School Van PDF brochure at TrucksBuses.com with all features and specifications.

Frequently Asked Questions on Tata Magic Express School Van

What is Tata Magic Express van mileage?

Tata Magic Express School van mileage ranges from 21 to 22 KMPL.

What is Tata Magic Express School van tyre size ?

The tyre size of Tata Magic Express School van is 155 R13

What is the latest Tata Magic Express School ex showroom price in India?

Tata Magic School ex showroom price starts at Rs 7.34 lacs onwards. The 2024 price of Tata Magic School van can vary slightly from state to state depending on local taxes.

What is Tata Magic Express School van power and torque ?

In terms of performance, Tata Magic Express School van produces a maximum power of 44 HP and a torque of 110 Nm.

What is the gearbox type in Tata Magic School van ?

Tata Magic Express van comes with a 5 speed gearbox.

What is the diesel tank capacity of Tata Magic Express School van ?

Tata Magic School van comes with diesel fuel option and its fuel tank capacity is diesel: 30 litres DEF: 10 litres.

What is the EMI of Tata Magic Express School van?

The monthly EMI of any truck depends on the interest rate offered by bank, down payment made by the buyer and the loan tenure. Considering a 10% down payment and 9.5% rate of interest, the EMI of Tata Magic Express van is expected to be around Rs Not Available for a 5 year period
