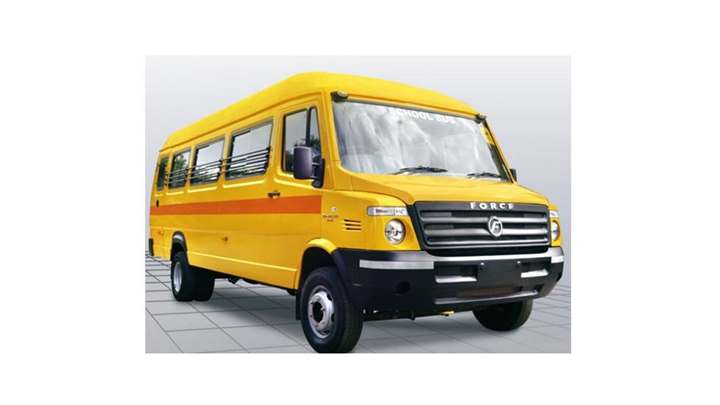

Overview of Force Traveller 26 CRDI School

Seating Capacity 26+D
Power (Max.)
  • 91 HP@2800 rpm (2.6L)
  • 115 HP@2800 rpm (3.2L)
Torque (Max.)
  • 250 Nm@1400-2400 rpm (2.6L)
  • 320 Nm@1400-2400 rpm (3.2L)
GVW
  • 5250 Kg (2.6L engine)
  • 5750 Kg (3.2L engine)
Warranty 1.5 Years / 1.5 Lakh Km
Service Interval 10,000 Km
Additional 4 free services

Engine & Performance of Force Traveller 26 CRDI School

Engine
  • FM 2.6 CR
  • FM 3.2 CR
Engine Displacement
  • 2596 cc
  • 3245 cc (optional)
Engine Cylinders
  • 4 (2.6L engine)
  • 5 (3.2L engine)
Power (Max.)
  • 91 HP@2800 rpm (2.6L)
  • 115 HP@2800 rpm (3.2L)
Torque (Max.)
  • 250 Nm@1400-2400 rpm (2.6L)
  • 320 Nm@1400-2400 rpm (3.2L)
Clutch
  • Single plate dry clutch
  • Hydraulically actuated
Transmission
  • 5 speed manual (5F+1R)
  • With 5th overdrive gear
Gearbox Synchromesh
Max Speed 100 Kmph
Emission Norms Compliance BSIV
Fuel Type Diesel
Fuel Tank Capacity 70 Litres

Design & Configuration of Force Traveller 26 CRDI School

GVW
  • 5250 Kg (2.6L engine)
  • 5750 Kg (3.2L engine)
Seating Capacity 26+D
Axle Configuration 4x2
Front Axle Dead Rigid
Rear Axle Live Rigid
Front Suspension
  • Semi elliptical leaf springs
  • With hydraulic telescopic shock absorbers
Rear suspension
  • Semi elliptical leaf springs
  • With hydraulic telescopic shock absorbers
Anti-roll bar Front and rear
Tyres
  • 215/75 R 15
  • Radial tubeless
  • 6+1 tyres
Wheelbase 4020 mm
Turning Circle Radius 7 m
Ground Clearance 170 mm
Overall Length 6770 mm
Overall Width 2225 mm
Overall Height
  • 2670 mm
  • 2870 mm (with AC)
Front Track 1930 mm
Rear Track 1740 mm
Front Overhang 900 mm
Rear Overhang 1846 mm

Features & Comfort in Force Traveller 26 CRDI School

Steering Type Power Steering
Steering Adjustment Tiltable
Driver Seat Type Standard seat
Passenger Seat Type
  • Bench seats
  • 2x2 seating layout
Air Conditioner (A/C) Optional
Music System No
Bottle Holder Yes
Power Windows No
Additional Child-Bus Tracker (Optional fitment)

Safety in Force Traveller 26 CRDI School

Service Brakes
  • Hydraulic brakes
  • Ventilated disc
Parking Brakes Mechanical on rear wheels
Anti-Roll Bar Front and rear
Seat Belts Yes
Tubeless Tyres Yes
Fog Light No
Additional
  • ABS as standard
  • Grab handles on each seat
