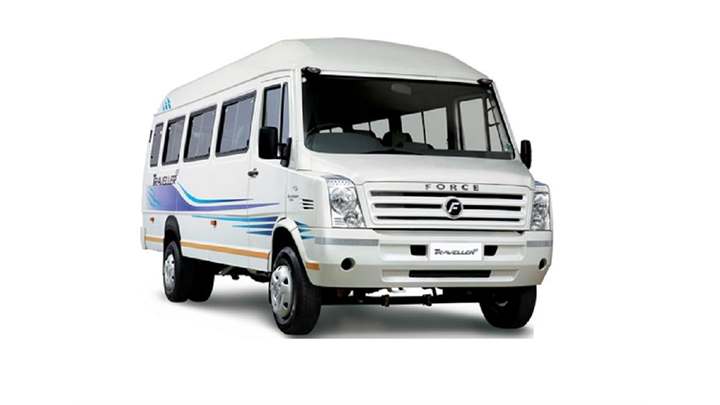

Overview of Force Traveller 26 CRDI

Seating Capacity 26+D
Power (Max.) 115 HP@2800 rpm
Torque (Max.) 320 Nm@1400-2400 rpm
GVW 5750 Kg
Warranty 1.5 Years / 1.5 Lakh Km
Service Interval 10,000 Km
Additional 4 free services

Engine & Performance of Force Traveller 26 CRDI

Engine FM 3.2 CR
Engine Displacement 3245 cc
Engine Cylinders 5
Power (Max.) 115 HP@2800 rpm
Torque (Max.) 320 Nm@1400-2400 rpm
Clutch
  • Single plate dry clutch
  • Hydraulically actuated
Transmission
  • 5 speed manual (5F+1R)
  • With 5th overdrive gear
Gearbox G-32 Synchromesh
Emission Norms Compliance BSIV
Fuel Type Diesel
Fuel Tank Capacity 70 Litres

Design & Configuration of Force Traveller 26 CRDI

GVW 5750 Kg
Seating Capacity 26+D
Axle Configuration 4x2
Front Axle Dead Rigid
Rear Axle Live Rigid
Front Suspension
  • Semi elliptical leaf springs
  • With hydraulic telescopic shock absorbers
Rear suspension
  • Semi elliptical leaf springs
  • With hydraulic telescopic shock absorbers
Anti-roll bar Front and rear
Tyres
  • 215/75 R 15
  • 6+1 tyres
Wheelbase 4020 mm
Turning Circle Radius 7 m
Ground Clearance 190 mm
Overall Length 6770 mm
Overall Width 2225 mm
Overall Height
  • 2670 mm
  • 2870 mm (with AC)
Front Track 1930 mm
Rear Track 1740 mm
Front Overhang 900 mm
Rear Overhang 1850 mm

Features & Comfort in Force Traveller 26 CRDI

Steering Type Power Steering
Steering Adjustment Tiltable
Driver Seat Type Standard seat
Passenger Seat Type
  • Standard
  • 2x2 seating layout
Air Conditioner (A/C) Optional
Music System No
Mobile Charging Point Yes
Power Windows No
Additional Hatrack option available

Safety in Force Traveller 26 CRDI

Service Brakes
  • Front: Hydraulic Disc
  • Rear: Hydraulic Disc
Parking Brakes Mechanical on rear wheels
Anti-Roll Bar Front and rear
Seat Belts Yes
Tubeless Tyres No
Fog Light No
Additional ABS with EBD (Optional)
