Commercial Vehicles in India

  • Tata Ace Zip Gold Micro Truck

Quick Search

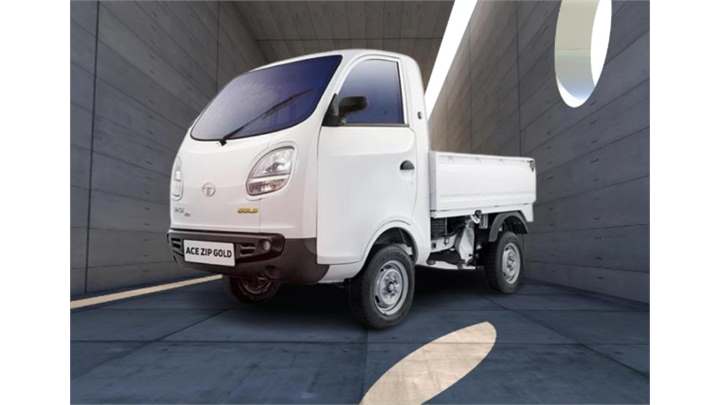

Overview of Tata Ace Zip Gold

Payload 600 Kg
Power (Max.) 12.5 HP@3000 rpm
Torque (Max.) 35 Nm@1600-1800 rpm
Load Body Dimensions (LXWXH) 1685 (5.5 ft) X 1480 (4.9 ft) X 400 mm
Warranty 2 years / 72,000 Km
Service Interval 10,000 Km

Engine & Performance of Tata Ace Zip Gold

Engine
  • Naturally aspirated
  • Direct Injection, Water cooled
Engine Displacement 611 cc
Engine Cylinders 1
Power (Max.) 12.5 HP@3000 rpm
Torque (Max.) 35 Nm@1600-1800 rpm
Clutch Single plate dry clutch
Transmission 4 speed manual (4F+1R)
Gearbox TA-59 Synchromesh
Gradeability 22%
Max Speed 50 Kmph
Emission Norm Compliance BSIV
Fuel Type Diesel
Fuel Tank Capacity 10 Litres

Design & Configuration of Tata Ace Zip Gold

GVW 1305 Kg
Payload 600 Kg
Vehicle Configuration Cabin with Fixed Side Deck Body
Seating Capacity D+1
Axle Configuration 4x2
Front Suspension Mc Pherson Strut
Rear suspension
  • Coil spring with semi-trailing arm
  • With hydraulic telescopic shock absorbers
Anti-roll bar No
Tyres 145/80 R12 LT 6PR
Wheelbase 1650 mm
Turning Circle Radius 3.5 m
Ground Clearance 150 mm
Overall Length 3020 mm
Overall Width 1480 mm
Overall Height 1800 mm
Front Track 1256 mm
Rear Track 1316 mm
Load Body Dimensions (LXWXH) 1685 (5.5 ft) X 1480 (4.9 ft) X 400 mm

Features & Comfort in Tata Ace Zip Gold

Steering Type Mechanical type
Steering Adjustment No
Driver Seat Type Standard seat
Air Conditioner (A/C) No
Mobile Charging Point Yes

Safety in Tata Ace Zip Gold

Service Brakes
  • Hydraulic drum
  • With twin load sensing proportioning valve
Parking Brakes Cable operated acting on Rear Wheels
Anti-Roll Bar No
Seat Belts Yes
Tubeless Tyres No
