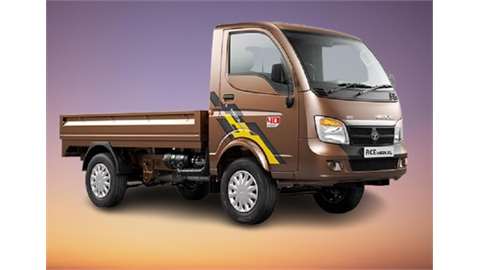

Overview of Tata Ace Mega XL

Payload 1000 Kg
Power (Max.) 40 HP@3750 rpm
Torque (Max.) 100 Nm@1700-2000 rpm
Load Body Dimensions (LXWXH) 2520 (8.2 ft) x 1430 x 300 mm
Warranty 2 years / 72000 km
Service Interval 10,000 Km

Engine & Performance of Tata Ace Mega XL

Engine DICOR TCIC
Engine Displacement 798 cc
Engine Cylinders 2
Power (Max.) 40 HP@3750 rpm
Torque (Max.) 100 Nm@1700-2000 rpm
Clutch Single plate dry clutch
Transmission 5 speed manual (5F+1R)
Gearbox Synchromesh
Gradeability 30%
Max Speed 80 Kmph
Emission Norm Compliance BSIV
Fuel Type Diesel
Fuel Tank Capacity 30 Litres

Design & Configuration of Tata Ace Mega XL

GVW 2100 Kg
Payload 1000 Kg
Vehicle Configuration Cabin with Fixed Side Deck Body
Seating Capacity D+1
Axle Configuration 4x2
Front Suspension
  • Semi-elliptical leaf spring
  • With hydraulic telescopic shock absorbers
Rear suspension
  • Semi-elliptical leaf spring
  • With hydraulic telescopic shock absorbers
Anti-roll bar Front
Tyres 165 R14 LT
Wheelbase 2100 mm
Turning Circle Radius 4.88 m
Ground Clearance 175 mm
Overall Length 4075 mm
Load Body Dimensions (LXWXH) 2520 (8.2 ft) x 1430 x 300 mm

Features & Comfort in Tata Ace Mega XL

Steering Type Power steering
Steering Adjustment No
Driver Seat Type Standard seat with high head rest
Air Conditioner (A/C) No
Mobile Charging Point Yes
Magazine Holder Yes
Additional
  • Digital Clock
  • Provision for music system

Safety in Tata Ace Mega XL

Service Brakes
  • Front: Hydraulic Disc
  • Rear: Hydraulic Drum
Parking Brakes Cable operated acting on Rear Wheels
Anti-Roll Bar Front
Seat Belts Yes
Tubeless Tyres No
