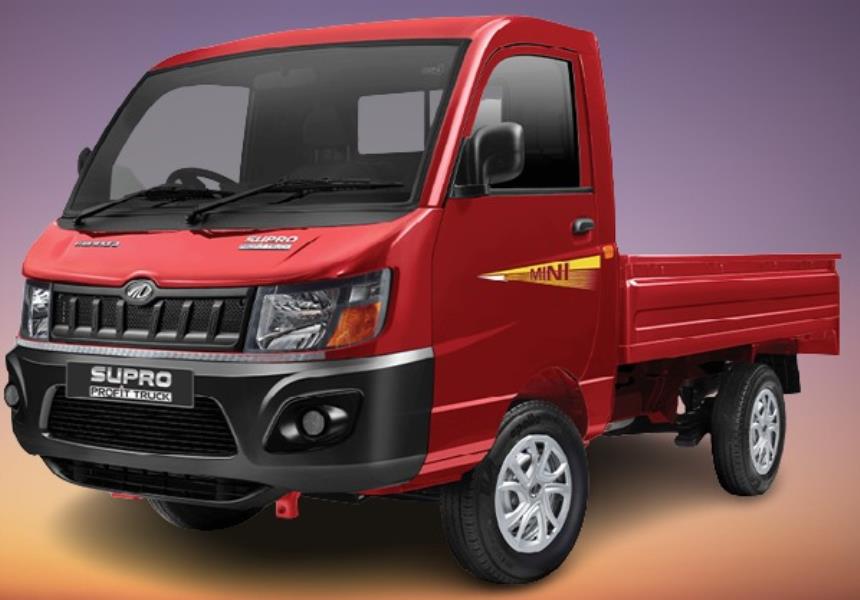

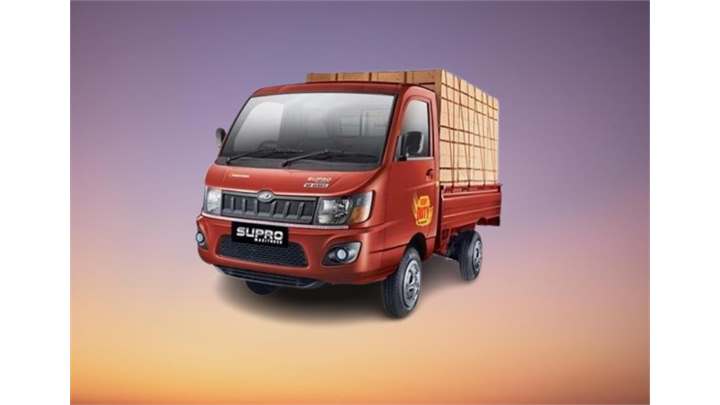

Overview of Mahindra Supro Maxi-Truck HD Series

Payload 1000 Kg
Power (Max.) 45 HP@3750 rpm
Torque (Max.) 98 Nm@1600-3000 rpm
Load Body Dimensions (LXWXH) 2500 x 1540 x 330 mm
Warranty 3 years / 80,000 Km
Service Interval 10,000 Km
Additional
  • Fuel smart options
  • Economy mode
  • Power mode

Engine & Performance of Mahindra Supro Maxi-Truck HD Series

Engine Direct Injection
Engine Displacement 909 cc
Engine Cylinders 2
Power (Max.) 45 HP@3750 rpm
Torque (Max.) 98 Nm@1600-3000 rpm
Clutch Single plate dry clutch
Transmission 5 speed manual (5F+1R)
Gearbox 5R98M
Max Speed 95 Kmph
Emission Norm Compliance BSIV
Fuel Type Diesel
Fuel Tank Capacity 33 Litres

Design & Configuration of Mahindra Supro Maxi-Truck HD Series

GVW
  • 2090 Kg (T2)
  • 2095 Kg (T4)
  • 2115 Kg (T6)
Payload 1000 Kg
Vehicle Configuration Cabin with Fixed Side Deck Body
Seating Capacity D+1
Axle Configuration 4X2
Front Suspension
  • Rigid axle
  • With semi-elliptical leaf spring
Rear suspension Leaf spring
Anti-roll bar No
Tyres 155/80 R13
Wheelbase 2050 mm
Turning Circle Radius 4.7 m
Ground Clearance 176 mm
Overall Length 3798 mm
Overall Width 1540 mm
Overall Height 1922 mm
Load Body Dimensions (LXWXH) 2500 x 1540 x 330 mm

Features & Comfort in Mahindra Supro Maxi-Truck HD Series

Steering Type
  • Mechanical type (T2 variant)
  • Power Steering (T4 and T6)
Steering Adjustment No
Driver Seat Type Standard seat with high head rest
Air Conditioner (A/C) Available in T6 variant
Mobile Charging Point Yes
Bottle Holder Available in T6 variant
Magazine Holder Available in T6 variant
Additional
  • Available in 3 vairants (T2 / T4 / T6)
  • Built in cluster clock

Safety in Mahindra Supro Maxi-Truck HD Series

Service Brakes
  • Front: Hydraulic Disc
  • Rear: Hydraulic Drum
  • With auto adjuster
Parking Brakes Yes
Anti-Roll Bar No
Seat Belts Yes
Tubeless Tyres No
