What is the engine capacity of Piaggio Ape Auto Plus Diesel auto ?

Piaggio Ape Auto Plus Diesel 3 wheeler comes with 1 cylinder 598 cc engine

Piaggio Ape Auto Plus Diesel BS6 3 Wheeler auto rickshaw specifications & mileage

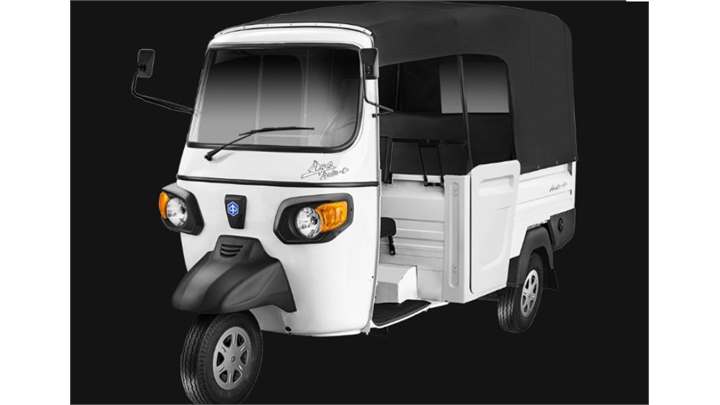

Piaggio Ape Auto Plus Diesel Auto Images

Rate This Vehicle

From ₹ 2.06 Lakh* Onwards(Last Updated 27th Nov 25)
*Ex-showroom Price

Check Discount Offer Check On Road Price

Don't miss out on the best discount offers on Piaggio Ape Auto Plus Diesel Auto for this month

Piaggio Ape Auto Plus Diesel - 3 Wheeler Highlights

Power

9.4 HP@3600 rpm

Fuel Type

Diesel

Key Specifications of Piaggio Ape Auto Plus Diesel Auto

Engine
Configuration

Piaggio Ape Auto Plus Diesel Auto Engine
Engine
Water cooled engine
Piaggio Ape Auto Plus Diesel Auto Power
Power
9.4 HP@3600 rpm
Piaggio Ape Auto Plus Diesel Auto Torque
Torque
23.5 Nm@2200 rpm
Piaggio Ape Auto Plus Diesel Auto Engine Cylinders
Engine Cylinders
1
Piaggio Ape Auto Plus Diesel Auto Engine Displacement
Engine Displacement
598 cc
Piaggio Ape Auto Plus Diesel Auto Transmission
Transmission
5 Speed (5F+1R)
Piaggio Ape Auto Plus Diesel Auto Gearbox
Gearbox
Constant mesh
Piaggio Ape Auto Plus Diesel Auto Clutch
Clutch
Multi disc wet type
Piaggio Ape Auto Plus Diesel Auto Gradeability
Gradeability
24%
Piaggio Ape Auto Plus Diesel Auto Max Speed
Max Speed
60 KMPH
Piaggio Ape Auto Plus Diesel Auto Emission Norms Compliance
Emission Norms Compliance
BS6
Piaggio Ape Auto Plus Diesel Auto Fuel Type
Fuel Type
Diesel
Piaggio Ape Auto Plus Diesel Auto Fuel Tank Capacity
Fuel Tank Capacity
10 Litres

Piaggio Ape Auto Plus Diesel Auto GVW
GVW
974 Kg
Piaggio Ape Auto Plus Diesel Auto Seating Capacity
Seating Capacity
D+5
Piaggio Ape Auto Plus Diesel Auto Front Suspension
Front Suspension
Hydraulic telescopic shock absorber
Helical compression spring with dampener
Piaggio Ape Auto Plus Diesel Auto Rear Suspension
Rear Suspension
Hydraulic telescopic shock absorber
Rubber compression spring with dampener
Piaggio Ape Auto Plus Diesel Auto Tyres
Tyres
4.50-10, 8 PR
Piaggio Ape Auto Plus Diesel Auto Wheelbase
Wheelbase
2100 mm
Piaggio Ape Auto Plus Diesel Auto Ground Clearance
Ground Clearance
240 mm
Piaggio Ape Auto Plus Diesel Auto Overall Length
Overall Length
3140 mm
Piaggio Ape Auto Plus Diesel Auto Overall Width
Overall Width
1465 mm
Piaggio Ape Auto Plus Diesel Auto Overall Height
Overall Height
1950 mm

Piaggio Ape Auto Plus Diesel Auto Specification Highlights

When it comes to Piaggio Ape Auto Plus Diesel 3 wheeler specifications, we can break it up into performance parameters for engine / motor related things and the configuration related parameters on the other sideThe power machine underneath Piaggio Ape Auto Plus Diesel 3 wheeler is Water cooled engine engineOn the design and built front, Piaggio Ape Auto Plus Diesel 3 wheeler has a seating capacity of D+5 with its GVW of 974 kgWith a wheelbase of 2100 mm and optimum 3140 mm overall vehicle length, Piaggio Ape Auto Plus Diesel 3 wheeler offers superior space for passenger comfortThis Piaggio 3 wheeler comes fitted with tyres of the size 4.50-10, 8 pr offering a superior 240 mm ground clearance.
