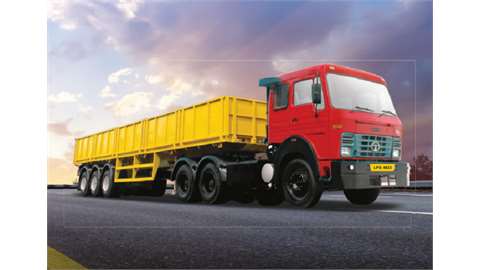

Overview of Tata LPS 4923

Gross Combination Weight (GCW) 49000 Kg
Axle Configuration 6x4
Engine
  • Cummins 6BT 5.9
  • Direct Injection, Turbo-charged
Power (Max.) 213 HP@2500 rpm
Torque (Max.) 800 Nm@1400-1700 rpm
Transmission 9 speed manual (8F+1CR+1R)
Warranty
  • 6 Years / 6 Lakh Km on driveline
  • 3 Years / 3 Lakh Km on vehicle
Service Interval 80,000 Km (Oil change)

Engine & Performance of Tata LPS 4923

Engine
  • Cummins 6BT 5.9
  • Direct Injection, Turbo-charged
Fuel Injection System Mechanical FIP
Engine Displacement 5883 cc
Engine Cylinders 6
Power (Max.) 213 HP@2500 rpm
Torque (Max.) 800 Nm@1400-1700 rpm
Clutch
  • Single dry plate, 380 mm dia
  • With clutch booster
Transmission 9 speed manual (8F+1CR+1R)
Gearbox G1150
Gradeability 25.00%
Max Speed 80 Kmph
Emission Norms Compliance BSIII
Fuel Type Diesel
Fuel Tank Capacity 600 Litres (300+300)
Electricals / Battery
  • 2x12V, 100 Ah
  • Alternator: 45 Amps

Design & Configuration of Tata LPS 4923

Gross Combination Weight (GCW) 49000 Kg
Kerb Weight 8580 Kg
Cabin Type Sleeper cabin
Cabin Tilt mechanism NA
Chassis Frame Ladder type with cross members
Axle Configuration 6x4
Front Axle Forged I Beam, Reverse Elliot Type
Rear Axle
  • RA - 1099 RR tandem axles
  • RAR-5.86
Front Suspension
  • Semi-elliptical leaf springs
  • With telescopic shock absorbers
Rear Suspension Bogie suspension
Anti-Roll Bar Front only
Tyres 10R20-16PR
Wheelbase 3880 mm
Turning Circle Diameter 17 m
Ground Clearance 250 mm
Overall Length 6569 mm
Overall Width 2550 mm
Overall Height 2943 mm
Chassis Depth 285 mm
Chassis Flange width 65 mm
Chassis Thickness 7 mm

Features & Comfort in Tata LPS 4923

Cabin Suspension Semi suspended
Steering Type Power Steering
Steering Adjustment Rigid
Driver Seat Type 6 way adjustable
Air Conditioner (A/C) No
Openable Quarter Ventilation Glass No
Instrument Cluster Analog
Telematics / GPS Tracking
  • Telematics unit (Optional)
  • Service activation (Optional)
Power Windows No
Music System No
Automatic Transmission No
Cruise Control No

Safety in Tata LPS 4923

Service Brakes Air Brakes, dual line
ABS Yes
Anti-Roll Bar Front only
Differential Lock No
Seat Belts Yes
Fog Light No
Tubeless Tyres No
