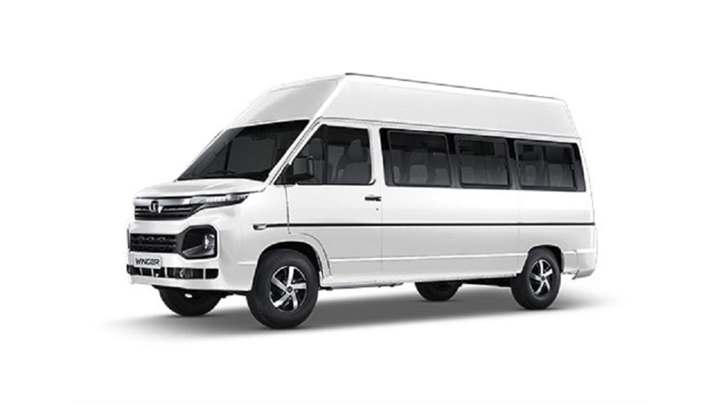

Overview of Tata Winger 15 Seater

Seating Capacity 15+D
Power (Max.) 100 HP@4000 rpm
Torque (Max.) 190 Nm@1250-3500 rpm
GVW 3475 Kg
Warranty 3 years / 3 Lakh km
Service Interval 20,000 Km

Engine & Performance of Tata Winger 15 Seater

Engine 2.2L DICOR
Engine Displacement 2179 cc
Engine Cylinders 4
Power (Max.) 100 HP@4000 rpm
Torque (Max.) 190 Nm@1250-3500 rpm
Clutch 215 dia dry friction type
Transmission 5 speed manual (5F+1R)
Gearbox Synchromesh with overdrive
Gradeability 12%
Emission Norms Compliance BSIV
Fuel Type Diesel
Fuel Tank Capacity 60 Litres

Design & Configuration of Tata Winger 15 Seater

GVW 3475 Kg
Seating Capacity 15+D
Axle Configuration
  • 4x2
  • Front wheel drive
Front Axle Independent with CV Shaft
Front Suspension Mcpherson struts with coil spring
Rear suspension
  • Parabolic Leaf Spring
  • With hydraulic telescopic shock absorbers
Anti-roll bar Front and rear
Tyres 195 R15
Wheelbase 3488 mm
Ground Clearance 180 mm
Overall Length 5458 mm
Overall Width 1905 mm
Overall Height 2670 mm
Front Track 1560 mm
Rear Track 1560 mm
Front Overhang 940 mm
Rear Overhang 1030 mm

Features & Comfort in Tata Winger 15 Seater

Steering Type Power Steering
Steering Adjustment No
Driver Seat Type Standard seat with high head rest
Passenger Seat Type Reclining type
Air Conditioner (A/C) Dual AC (Optional)
Music System No
Mobile Charging Point Multiple USB charging points
Bottle Holder Yes
Power Windows No
Additional Digital clock

Safety in Tata Winger 15 Seater

Service Brakes
  • Front: Hydraulic Disc
  • Rear: Hydraulic Drum
Parking Brakes Mechanical on rear wheels
Anti-Roll Bar Front and rear
Seat Belts Yes
Tubeless Tyres No
Fog Light Yes
Child Lock Yes
