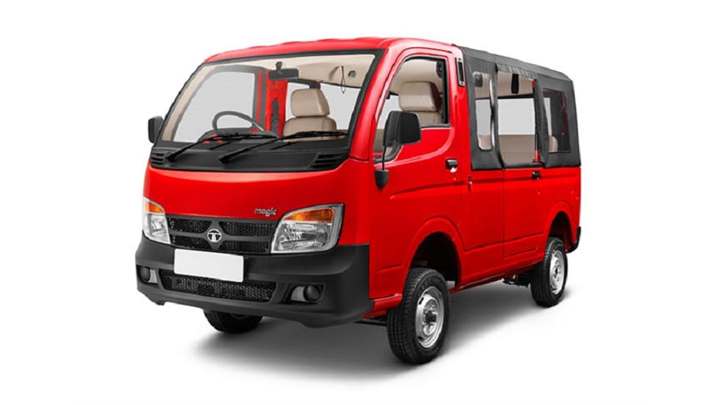

Overview of Tata Magic

Seating Capacity
  • 4+D
  • 6+D
  • 7+D
Power (Max.)
  • Diesel: 16 HP@3200 rpm
  • CNG: 21 HP@3400 rpm
Torque (Max.)
  • Diesel: 38 Nm@2000 rpm
  • CNG: 49 Nm@2200 rpm
GVW
  • Diesel: 1600 Kg
  • CNG: 1700 Kg
Warranty 2 years / 72,000 Km
Service Interval 10,000 Km

Engine & Performance of Tata Magic

Engine
  • Diesel: Water cooled, Naturally aspirated, Indirect injection
  • CNG: Multi-Point Gas Injection
Engine Displacement 702 cc
Engine Cylinders 2
Power (Max.)
  • Diesel: 16 HP@3200 rpm
  • CNG: 21 HP@3400 rpm
Torque (Max.)
  • Diesel: 38 Nm@2000 rpm
  • CNG: 49 Nm@2200 rpm
Clutch 170 mm dia, dry friction type
Transmission
  • Diesel: 4 speed manual (4F+1R)
  • CNG: 5 speed manual (5F+1R)
Gearbox Synchromesh
Gradeability
  • Diesel: 22%
  • CNG: 19%
Max Speed
  • Diesel: 64 Kmph
  • CNG: 77 Kmph
Emission Norms Compliance BSIV
Fuel Type
  • Diesel
  • CNG
Fuel Tank Capacity
  • Diesel: 30 Litres
  • CNG: 70 Litres / 12.5 Kg

Design & Configuration of Tata Magic

GVW
  • Diesel: 1600 Kg
  • CNG: 1700 Kg
Seating Capacity
  • 4+D
  • 6+D
  • 7+D
Axle Configuration 4X2
Front Axle Rigid beam construction
Rear Axle
  • Salisbury type with hypoid gears
  • Semi-floating axle shafts
Front Suspension
  • Parabolic Leaf Spring
  • With hydraulic telescopic shock absorbers
Rear suspension
  • Parabolic Leaf Spring
  • With hydraulic telescopic shock absorbers
Anti-roll bar No
Tyres 145 R12 LT 8PR
Wheelbase 2100 mm
Turning Circle Radius 4.3 m
Ground Clearance 160 mm
Overall Length 3790 mm
Overall Width 1500 mm
Overall Height 1845 mm
Front Track 1300 mm
Rear Track 1320 mm

Features & Comfort in Tata Magic

Steering Type Mechanical type
Steering Adjustment No
Driver Seat Type Standard seat
Passenger Seat Type Bench seats
Air Conditioner (A/C) No
Music System No
Mobile Charging Point Yes
Bottle Holder Yes
Power Windows No
Additional
  • Digital clock
  • Lockable glove box

Safety in Tata Magic

Service Brakes
  • Front: Hydraulic Disc
  • Rear: Hydraulic Drum
Parking Brakes Mechanical on rear wheels
Anti-Roll Bar No
Seat Belts Yes
Tubeless Tyres No
Fog Light Provision
Child Lock No
