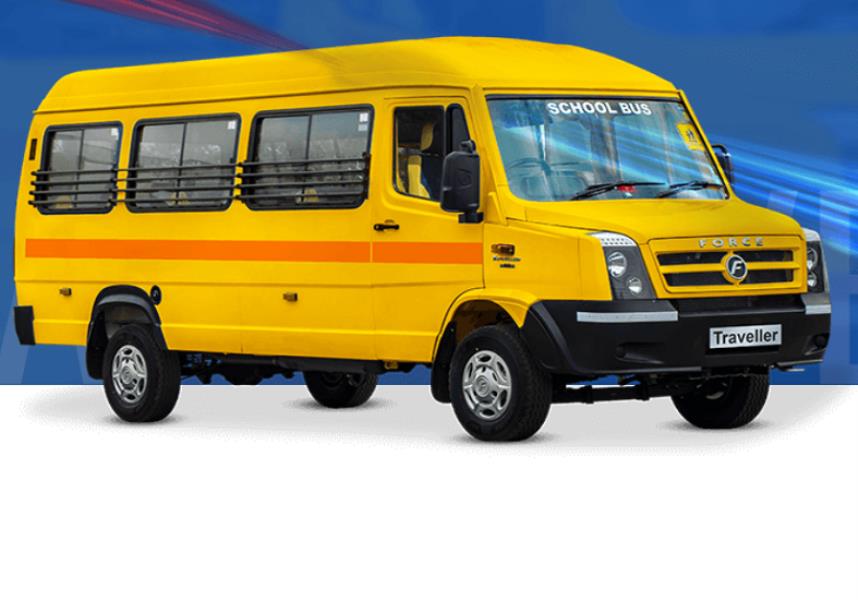

Overview of Force Traveller 3700: School 17 Seater

Seating Capacity 17+D
Power (Max.) 91 HP@2800 rpm
Torque (Max.) 250 Nm@1400-2400 rpm
GVW 4060 Kg
Warranty 3 years / 3 Lakh km
Service Interval 10,000 Km
Additional 7 free services

Engine & Performance of Force Traveller 3700: School 17 Seater

Engine FM 2.6 CR
Engine Displacement 2596 cc
Engine Cylinders 4
Power (Max.) 91 HP@2800 rpm
Torque (Max.) 250 Nm@1400-2400 rpm
Transmission
  • 5 speed manual (5F+1R)
  • With 5th overdrive gear
Gearbox Synchromesh
Emission Norms Compliance BSIV
Fuel Type Diesel
Fuel Tank Capacity 70 Litres

Design & Configuration of Force Traveller 3700: School 17 Seater

GVW 4060 Kg
Seating Capacity 17+D
Axle Configuration 4x2
Front Axle Dead Rigid I-Beam, Reverse Elliot Type
Rear Axle Live Rigid
Front Suspension
  • Semi elliptical leaf springs
  • With hydraulic telescopic shock absorbers
Rear suspension
  • Semi elliptical leaf springs
  • With hydraulic telescopic shock absorbers
Anti-roll bar Front only
Tyres 215/75 R 15
Wheelbase 3700 mm
Turning Circle Radius 6.5 m
Ground Clearance 210 mm
Overall Length 6065 mm
Overall Width 1975 mm
Overall Height
  • 2550 mm
  • 2770 mm (With AC)
Front Overhang 900 mm
Rear Overhang 1465 mm

Features & Comfort in Force Traveller 3700: School 17 Seater

Steering Type
  • Mechanical
  • Power Steering (Optional)
Steering Adjustment Tiltable
Driver Seat Type Standard seat
Passenger Seat Type

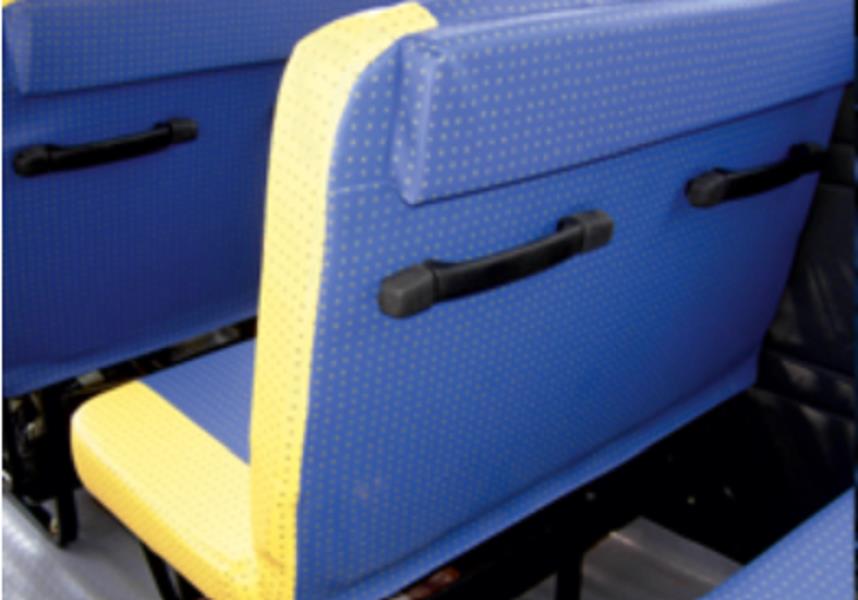

  • Bench seats
  • 2x1 seating layout
Air Conditioner (A/C) Optional
Music System No
Mobile Charging Point Yes
Power Windows No
Additional Child-Bus Tracker (Optional fitment)

Safety in Force Traveller 3700: School 17 Seater

Service Brakes
  • Front: Hydraulic Disc
  • Rear: Hydraulic Drum
Parking Brakes Mechanical on rear wheels
Anti-Roll Bar Front only
Seat Belts Yes
Tubeless Tyres No
Fog Light No
Additional ABS with EBD
