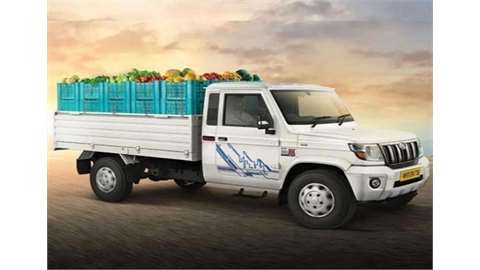

In this tab, we will discuss the engine performance and the body configuration of Mahindra Bolero Maxx HD 1.7 VXi AC Pickup. It comes with an m2DiCR engine with a total gross vehicle weight of 3460 kilograms. This pickup is equipped with a powerful engine of power 80 HP which produces a high-end torque of 220 Nm. The engine displacement of Bolero Maxx HD 1.7 VXi AC Pickup is 2523 cc and has 4 engine cylinders. This vehicle has a good payload capacity of 1700 kilograms. The maximum speed at which it can run is 80 kmph. It runs on diesel fuel and adheres to BS6 emission norms. It has a diesel fuel tank capacity of 60 litres. It includes a side cornering lamp and a height-adjustable driver seat as an additional feature. If we consider its clutch type, it has a single plate dry clutch. This vehicle comes with a total warranty of 3 years and 1,00,000 kilometers. Its service interval is 20,000 kilometers. Its load body dimension is 9 x 5.9 ft. It has a seating capacity of driver plus 2 passengers. The power transmission is controlled by a 5-speed (5F+1R) with synchromesh gearbox system. The front and rear suspensions of Bolero Maxx HD 1.7 Vxi AC Pickup have leaf springs. It has an anti-roll bar at the front only. This pickup is equipped with 15-inch wheels with tyre size of 7R15 LT. It has a total wheelbase of 3290 mm with a ground clearance of 185 mm. It total dimensions are length 5060 mm, width 1800 mm and height 1895 mm. For more details on the specifications of Mahindra Bolero Maxx HD 1.7 VXi AC Pickup, you can check out the specifications page of TrucksBuses.
