Compare Tata Prima LX 3123.T TS vs Tata LPT 3118 - 6x2
Compare tata prima lx 3123 t ts vs tata lpt 3118 10 wheel

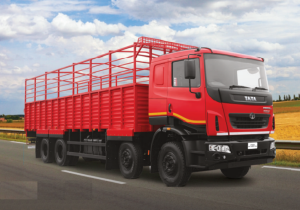

Tata Prima LX 3123.T TS
Tata LPT 3118 - 6x2
Overviewof
| GVW (Kg) |
31000 Kg |
31000 Kg |
|
| Engine |
Cummins ISBe 5.9 230
Direct Injection, Turbo-charged |
Cummins ISBe 5.6L |
|
| Power |
230 HP@2500 rpm |
186 HP@2300 rpm |
|
| Torque |
850 Nm@1400-1700 rpm |
850 Nm@1000-1600 rpm |
|
| Axle Configuration |
8x2 |
6x2 |
|
| Variants |
Cabin with load body options |
Cowl with chassis |
|
| Body Length |
24 ft
28 ft |
24 ft
32 ft |
|
| Warranty |
4 Years / 4 Lakh Km on driveline
2 Years / 2 Lakh Km on vehicle |
6 Years / 6 Lakh km on driveline
3 Years / 3 Lakh km on vehicle |
|
| Service Interval |
60,000 Km (Oil change) |
80,000 Km (Oil change) |
|
Engine & Performanceof
| Engine |
Cummins ISBe 5.9 230
Direct Injection, Turbo-charged |
Cummins ISBe 5.6L |
|
| Fuel Injection System |
Common Rail |
Common Rail |
|
| Engine Displacement |
5883 cc |
5635 cc |
|
| Power |
230 HP@2500 rpm |
186 HP@2300 rpm |
|
| Torque |
850 Nm@1400-1700 rpm |
850 Nm@1000-1600 rpm |
|
| Clutch |
380 mm dia
With clutch booster |
380 mm dia |
|
| Transmission |
6 speed manual (6F+1R) |
6 speed (6F+1R) |
|
| Gearbox |
Eaton ES 9306-A DD |
G950
G750 (for 68 wheelbase) |
|
| Max Speed |
95 Kmph |
80 Kmph |
|
| Emission Norms Compliance |
BSIII |
BS6 |
|
| Fuel Tank Capacity |
400 Litres |
365 Litres
365+365 Litres (32 ft)
Polymer tank
With anti-fuel theft |
|
Design & Configurationof
| Kerb Weight |
9000 Kg (6900 wb)
8817 Kg (6250 wb) |
|
|
| Vehicle Configuration |
Cabin with load body options |
Cowl with chassis |
|
| Loading Span |
24 ft
28 ft |
24 ft
32 ft |
|
| Cabin Type |
Sleeper cabin |
Sleeper cabin option |
|
| Cabin Tilt mechanism |
Hydraulically tiltable |
|
|
| Chassis Frame |
Ladder type with cross members |
Ladder type straight frame |
|
| Axle Configuration |
8x2 |
6x2 |
|
| Front Axle |
Forged I Beam, Reverse Elliot Type
Twin steer axle |
Forged I Beam, Reverse Elliot Type |
|
| Rear Axle |
RA 110
RAR: 5.12 |
RA 109 RR
Single reduction hypoid gear |
|
| Front Suspension |
Parabolic leaf springs with tandem suspension |
Parabolic leaf springs |
|
| Rear Suspension |
Semi-elliptical leaf springs
With Bell crank mechanism |
Semi elliptical leaf springs
Bell crank |
|
| Tyres |
10R20-16 PR
Radial tyres
12+1 tyres |
295/90R20 (Tube)
10+1 tyres |
|
| Wheelbase |
6900 mm
6250 mm |
5505 mm
6750 mm |
|
| Turning Circle Diameter |
22.5 m (6900 wb)
21 m (6250 wb) |
|
|
| Overall Length |
11229 mm (6900 wb)
10010 mm (6250 wb) |
|
|
| Overall Width |
2440 mm |
2440 mm |
|
| Chassis Depth |
286 mm |
285 mm |
|
| Chassis Flange width |
78 mm |
65 mm |
|
| Chassis Thickness |
7 mm |
8.5 mm
7 mm (68 wb) |
|
Features & Comfortof
| Cabin Suspension |
Fully suspended |
Fully suspended |
|
| Steering |
Power Steering |
Power Steering |
|
| Steering Adjustment |
Tilt and telescopic |
No |
|
| Driver Seat |
6 way adjustable |
4 way adjustable |
|
| Air Conditioner (AC) |
Optional |
|
|
| Quarter Ventilation Glass |
No |
|
|
| Instrument Cluster |
Digital |
Digital
With mileage indicator
Distance to empty |
|
| Telematics |
Telematics unit as standard fitment
Service activation (Optional) |
Yes |
|
| Automatic Transmission |
No |
No |
|
Safetyof
| Service Brakes |
Air brakes |
Air brakes |
|
| Tubeless Tyres |
No |
Optional |
|
Key Comparison of Tata Prima LX 3123.T TS vs Tata LPT 3118 - 6x2
Compare Tata Prima LX 3123.T TS vs Tata LPT 3118 - 6x2 in detail at TrucksBuses.com ! You can check detailed truck comparison of Tata Prima LX 3123.T TS with Tata LPT 3118 - 6x2 on the basis of engine, specifications, payload, price, mileage and features. Tata Prima LX 3123.T TS with a gross weight of , gives a power of whereas Tata LPT 3118 - 6x2 produces of power and comes with a GVW of . Powering the Tata Prima LX 3123.T TS truck is cylinder, engine whereas Tata LPT 3118 - 6x2 gets powered by a cylinder, engine.
