Compare Tata Prima LX 2530.K vs Man CLA 25.300 EVO 6x4
Compare tata prima lx 2530 k vs man cla 25 300 evo 6x4
Tata Prima LX 2530.K

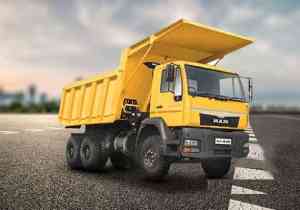

Man CLA 25.300 EVO 6x4
Overviewof
| Axle Configuration |
6x4 |
6x4 |
|
| Engine |
Cummins ISBe 6.7
SCR Technology |
Man D-0836 |
|
| GVW (Kg) |
25000 Kg |
25000 Kg |
|
| Power |
300 HP@2500 rpm |
300 HP@2300 rpm |
|
| Service Interval |
1500 Hrs (Oil change) |
|
|
| Torque |
1100 Nm@1200-1800 rpm |
1150 Nm@1200-1800 rpm |
|
| Transmission |
9 speed manual (8F+1CR+1R) |
9 Speed (9F+1R) |
|
| Variants |
Cabin with Box body |
Cabin with rock body |
|
| Warranty |
6 Years / 6000 Hrs on driveline
3 Years / 3000 Hrs on vehicle |
|
|
Engine & Performanceof
| Clutch |
Single dry plate, 430 mm dia
Organic |
Single plate, Power assisted |
|
| Emission Norms Compliance |
BSIV |
BS4 |
|
| Engine |
Cummins ISBe 6.7
SCR Technology |
Man D-0836 |
|
| Engine Displacement |
6693 cc |
6900 cc |
|
| Fuel Injection System |
Common Rail |
Common Rail |
|
| Fuel Tank Capacity |
Diesel: 260 Litres
Ad-blue: 35 Litres |
300 Litres |
|
| Gearbox |
ZF 9S 1115 TD |
Synchromesh |
|
| Gradeability |
61% |
40% (First gear)
63% (Crawler gear) |
|
| Max Speed |
89 Kmph |
60 Kmph |
|
| Power |
300 HP@2500 rpm |
300 HP@2300 rpm |
|
| Torque |
1100 Nm@1200-1800 rpm |
1150 Nm@1200-1800 rpm |
|
| Transmission |
9 speed manual (8F+1CR+1R) |
9 Speed (9F+1R) |
|
Design & Configurationof
| Anti Roll Bar |
Front and Rear |
|
|
| Axle Configuration |
6x4 |
6x4 |
|
| Cabin Tilt mechanism |
Tiltable cabin |
Hydraulically tiltable |
|
| Cabin Type |
Day cab |
Day cab |
|
| Chassis Flange width |
90 mm |
|
|
| Chassis Frame |
Ladder type with cross members |
C channel rolled section |
|
| Front Axle |
Forged I Beam, Reverse Elliot Type |
Straight Forged I-Beam type, Maintence free Hub Bearings |
|
| Front Suspension |
Parabolic leaf springs |
Semi elliptical leaf springs
With double acting shock absorbers |
|
| Ground Clearance |
262 mm |
385 mm (Front)
327 mm (Rear) |
|
| Load Body Dimensions |
18 Cu.M Box body |
|
|
| Rear Axle |
Planetary Hub reduction axle
RAR: 7.246 |
Planetary axles With Hub Reduction
Stabliser for rear axle |
|
| Rear Suspension |
Bogie suspension |
Bogie suspension |
|
| Tyres |
11x20 - 18 PR
Crossply |
11x20 |
|
| Vehicle Configuration |
Cabin with Box body |
Cabin with rock body |
|
| Wheelbase |
4570 mm |
4525 mm |
|
Features & Comfortof
| Air Conditioner (AC) |
Yes |
Yes |
|
| Automatic Transmission |
No |
|
|
| Cabin Suspension |
Fully suspended |
|
|
| Driver Seat |
6 way adjustable |
6 way adjustable
Air suspended |
|
| Instrument Cluster |
Digital |
Digital
With on board diagnostics |
|
| Mobile Charging Point |
Yes |
Yes |
|
| Quarter Ventilation Glass |
No |
No |
|
| Steering |
Power steering |
Power Steering |
|
| Steering Adjustment |
Tilt and telescopic
Electronic control |
Tilt and telescopic |
|
Safetyof
| Anti Roll Bar |
Front and Rear |
|
|
| Service Brakes |
Air Brakes |
Air brakes
Electronic Brake System (EBS) |
|
Key Comparison of Tata Prima LX 2530.K vs Man CLA 25.300 EVO 6x4
Compare Tata Prima LX 2530.K vs Man CLA 25.300 EVO 6x4 in detail at TrucksBuses.com ! You can check detailed truck comparison of Tata Prima LX 2530.K with Man CLA 25.300 EVO 6x4 on the basis of engine, specifications, payload, price, mileage and features. Tata Prima LX 2530.K with a gross weight of , gives a power of whereas Man CLA 25.300 EVO 6x4 produces of power and comes with a GVW of . Powering the Tata Prima LX 2530.K truck is cylinder, engine whereas Man CLA 25.300 EVO 6x4 gets powered by a cylinder, engine.
