Compare Tata Prima LX 2523.T vs Ashok Leyland 2620 AVTR
Compare tata prima lx 2523 t vs Ashok Leyland 2620 AVTR
![https://res.cloudinary.com/dz4x78ghb/image/fetch/c_scale,q_30,w_300,f_auto/https://www.trucksbuses.com/uploads/Prima LX 2523.png]()

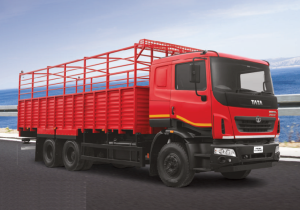

Tata Prima LX 2523.T
![https://res.cloudinary.com/dz4x78ghb/image/fetch/c_scale,q_30,w_300,f_auto/https://www.trucksbuses.com/uploads/11502_5876305ea3004ae0a617df8112e57256ashok-leyland-2620-6x2.jpg]()
Ashok Leyland 2620 AVTR
-
Overviewof tata prima lx 2523 t vs Ashok Leyland 2620 AVTR
-
Power
230 HP@2500 rpm
200 HP@2400 rpm
-
Torque
850 Nm@1400-1700 rpm
700 Nm@1200-1900 rpm
-
Engine
Cummins ISBe 5.9 230 Direct Injection, Turbo-charged
H series CRS iGen-6 technology
-
GVW (Kg)
25000 Kg
25500 Kg
-
Payload
16.75 Ton
-
Variants
Cabin with load body options
Cowl with Chassis Cabin and chassis
-
Body Length
24 ft 32 ft
24 ft 26 ft 28 ft 30 ft 32 ft
-
Axle Configuration
6x2
6x2
-
Warranty
4 Years / 4 Lakh Km on driveline 2 Years / 2 Lakh Km on vehicle
4 Years / 4 Lakh km on driveline
-
Service Interval
60,000 Km (Oil change)
40,000 Km (Oil change)
-
Additional
Gear Shift Advisor
-
Engine & Performanceof tata prima lx 2523 t vs Ashok Leyland 2620 AVTR
-
Engine
Cummins ISBe 5.9 230 Direct Injection, Turbo-charged
H series CRS iGen-6 technology
-
Power
230 HP@2500 rpm
200 HP@2400 rpm
-
Torque
850 Nm@1400-1700 rpm
700 Nm@1200-1900 rpm
-
Fuel Injection System
Common Rail
Common Rail
-
Displacement
5883 cc
5660 cc
-
Cylinders
6
6
-
Transmission
6 speed manual (6F+1R)
6 speed (6F+1R) With cable shift
-
Gearbox
Eaton ES 9306-A DD
ZF 6S 850
-
Clutch
380 mm dia With clutch booster
380 mm dia With clutch booster
-
Gradeability
22.95%
-
Max Speed
100 Kmph
80 Kmph 60 KMPH (for POL variant)
-
Emission
BSIII
BS6
-
Fuel Type
Diesel
Diesel
-
Fuel Tank
400 Litres
Diesel: 375 Litres Ad Blue: 48 Litres Polymer tank
-
Battery
24V, 120 Ah / 150 Ah (AC)
-
Design & Configurationof tata prima lx 2523 t vs Ashok Leyland 2620 AVTR
-
Variants
Cabin with load body options
Cowl with Chassis Cabin and chassis
-
Body Length
24 ft 32 ft
24 ft 26 ft 28 ft 30 ft 32 ft
-
GVW
25000 Kg
25500 Kg
-
Kerb Weight
7704 Kg (5275 wb) 8092 Kg (6400 wb)
-
Axle Configuration
6x2
6x2
-
Cabin Type
Sleeper cabin
Sleeper cabin
-
Cabin Tilt mechanism
Hydraulically tiltable
-
Chassis Frame
Ladder type with cross members
HSS material, bolted construction
-
Front Axle
Forged I Beam, Reverse Elliot Type
Forged I Beam, Reverse Elliot Type Unitized wheel bearings (Optional)
-
Rear Axle
RA 110 RAR: 5.12
Fully floating, Single speed RAR 5.29 / 5.57 / 6.17 Unitized wheel bearings (Optional)
-
Front Suspension
Parabolic leaf springs with tandem suspension
Semi elliptical leaf springs Parabolic leaf spring (Optional)
-
Rear Suspension
Semi-elliptical leaf springs With Bell crank mechanism
Semi elliptical leaf springs With helper springs
-
Anti Roll Bar
Optional in front
-
Tyres
10R20-16 PR Radial Nylon tyres (Optional) 10+1 tyres
295/90R20 (Tube) 8+1 tyres
-
Wheelbase
5275 mm 6400 mm
4930 mm 5130 mm 5430 mm 5880 mm 6180 mm
-
Turning Circle Diameter
19.7 m (5275 wb) 21.3 m (6400 wb)
20.2 m (24 ft body) 22 m (26 ft) 22.9 m (28 ft) 23.8 m (30 ft) 24 m (32 ft)
-
Ground Clearance
270 mm
253 mm
-
Overall Length
10009 mm (5275 wb) 11910 mm (6400 wb)
9710 mm (24 ft body) 10360 mm (26 ft) 10960 mm (28 ft) 11560 mm (30 ft) 11960 mm (32 ft)
-
Overall Width
2440 mm
2570 mm
-
Load Body Width
2576 mm
-
Overall Height
2987 mm (M Cabin) 3247 mm (U Cabin) 3177 mm (N Cabin)
-
Front Overhang
1482 mm
1550 mm
-
Front Track
2084 mm
-
Rear Track
1876 mm
-
Chassis Depth
286 mm
-
Chassis Flange width
78 mm
-
Chassis Thickness
7 mm
-
Features & Comfortof tata prima lx 2523 t vs Ashok Leyland 2620 AVTR
-
Steering Type
Power Steering
Power Steering
-
Steering Adjustment
Tilt and telescopic
Rigid (In Cowl) Tilt and telescopic (U / N cab)
-
Driver Seat
6 way adjustable
-
Instrument cluster
Digital
Digital With mileage indicator
-
Cabin Suspension
Fully suspended
-
Automatic Transmission
-
Telematics
Telematics unit as standard fitment Service activation (Optional)
-
Air Conditioner AC
Optional
Optional
-
Quarter Ventilation Glass
-
Mobile Charging Point
-
Bottle Holder
-
Music System
-
Cruise Control
Key Comparison of Tata Prima LX 2523.T vs Ashok Leyland 2620 AVTR
Compare Tata Prima LX 2523.T vs Ashok Leyland 2620 AVTR in detail at TrucksBuses.com ! You can check detailed truck comparison of Tata Prima LX 2523.T with Ashok Leyland 2620 AVTR on the basis of engine, specifications, payload, price, mileage and features. Tata Prima LX 2523.T with a gross weight of 25000 Kg, gives a power of 230 HP@2500 rpm whereas Ashok Leyland 2620 AVTR produces 200 HP@2400 rpm of power and comes with a GVW of 25500 Kg. Powering the Tata Prima LX 2523.T truck is 5883 cc 6 cylinder, H series CRS# iGen-6 technology engine whereas Ashok Leyland 2620 AVTR gets powered by a 6 cylinder, 5660 cc engine.
