Compare Tata Prima 4938.P vs Man CLA 49.250 EVO 6x4
Compare tata prima 4938 p vs man cla 49 250 evo 6x4

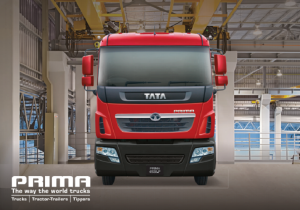

Tata Prima 4938.P
Man CLA 49.250 EVO 6x4
Overviewof
| GCW (Kg) |
49000 Kg |
49000 Kg |
|
| Axle Configuration |
6x4 |
6x2 |
|
| Engine |
Cummins ISLe 375
Direct Injection, Turbo-charged |
Man D-0836 |
|
| Power |
370 HP@2100 rpm |
255 HP@2300 rpm |
|
| Torque |
1550 Nm@1200-1400 rpm |
950 Nm@1100-1850 rpm |
|
| Transmission |
9 speed manual (8F+1CR+1R) |
9 Speed (9F+1R) |
|
Engine & Performanceof
| Engine |
Cummins ISLe 375
Direct Injection, Turbo-charged |
Man D-0836 |
|
| Fuel Injection System |
Common Rail |
Common Rail |
|
| Engine Displacement |
8898 cc |
6900 cc |
|
| Power |
370 HP@2100 rpm |
255 HP@2300 rpm |
|
| Torque |
1550 Nm@1200-1400 rpm |
950 Nm@1100-1850 rpm |
|
| Clutch |
Single dry plate, 430 mm dia
Organic
With Clutch Booster |
Single plate, Power assisted |
|
| Transmission |
9 speed manual (8F+1CR+1R) |
9 Speed (9F+1R) |
|
| Gearbox |
Eaton ES-15409
9F-Synchromesh
1R- Constant mesh |
Synchromesh |
|
| Gradeability |
31% |
18% (First gear)
27% (Crawler gear) |
|
| Max Speed |
64 Kmph |
80 Kmph |
|
| Emission Norms Compliance |
BSIII |
BS4 |
|
| Fuel Tank Capacity |
400 Litres |
300 Litres |
|
| Electricals Battery |
2x12V, 150 Ah
Alternator: 90 Amps |
2x12 V, 100 Ah |
|
Design & Configurationof
| Gross Combination Weight |
49000 Kg |
49000 Kg |
|
| Kerb Weight |
9970 Kg |
7900 Kg |
|
| Cabin Type |
Sleeper cabin with 4 point suspension |
Sleeper cab |
|
| Cabin Tilt mechanism |
Hydraulically tiltable- Electronic Control |
Hydraulically tiltable |
|
| Chassis Frame |
Channel section with cross members |
C channel rolled section |
|
| Axle Configuration |
6x4 |
6x2 |
|
| Front Axle |
|
Forged I-Beam type, Maintence free Hub Bearings |
|
| Rear Axle |
HRT 210 Hub Reduction Axle
RAR-6.492 |
Fully floating single speed hypoid axle |
|
| Front Suspension |
Parabolic leaf springs |
Parabolic leaf springs
With double acting shock absorbers |
|
| Rear Suspension |
Inverted Bogie Suspension |
Bell crank suspension |
|
| Wheelbase |
3890 mm |
3890 mm |
|
| Ground Clearance |
|
292 mm (Front)
272 mm (Rear) |
|
| Overall Length |
7008 mm |
6630 mm |
|
| Front Overhang |
1720 mm |
1300 mm |
|
Features & Comfortof
| Steering |
Power Steering |
Power Steering |
|
| Steering Adjustment |
Tilt and telescopic |
Tilt and telescopic |
|
| Driver Seat |
6 way adjustable
With air suspension |
6 way adjustable
Air suspended |
|
| Air Conditioner (AC) |
Yes |
Yes |
|
| Quarter Ventilation Glass |
No |
No |
|
| Instrument Cluster |
Digital with Fuel Mileage indicator |
Digital
With on board diagnostics |
|
| Telematics |
Telematics unit as standard fitment
Service activation (Optional) |
Yes |
|
| Mobile Charging Point |
|
Yes |
|
Safetyof
| Service Brakes |
Air Brakes, dual line |
Air brakes
Electronic Brake System (EBS) |
|
| Parking Brakes |
|
Yes
Electronic parking brake activation |
|
| Reverse Parking_Buzzer |
|
Yes |
|
Key Comparison of Tata Prima 4938.P vs Man CLA 49.250 EVO 6x4
Compare Tata Prima 4938.P vs Man CLA 49.250 EVO 6x4 in detail at TrucksBuses.com ! You can check detailed truck comparison of Tata Prima 4938.P with Man CLA 49.250 EVO 6x4 on the basis of engine, specifications, payload, price, mileage and features. Tata Prima 4938.P with a gross weight of , gives a power of whereas Man CLA 49.250 EVO 6x4 produces of power and comes with a GVW of . Powering the Tata Prima 4938.P truck is cylinder, engine whereas Man CLA 49.250 EVO 6x4 gets powered by a cylinder, engine.
