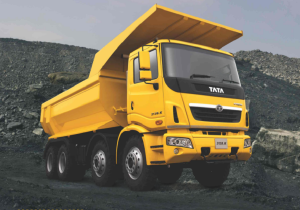

Tata Prima 3138.K
Man CLA 31.300 EVO 8x2
Overviewof
| GVW (Kg) |
31000 Kg |
31000 Kg |
|
| Axle Configuration |
8x4 |
8x2 |
|
| Engine |
Cummins ISLe |
Man D-0836 |
|
| Power |
370 HP@2100 rpm |
300 HP@2300 rpm |
|
| Torque |
1550 Nm@1200-1400 rpm |
1150 Nm@1200-1800 rpm |
|
| Transmission |
9 speed manual (8F+1CR+1R) |
6 Speed (5F+1R) |
|
| Variants |
Cabin with Box body
Cabin with Scoop body |
Cabin with body |
|
| Warranty |
4 Years / 5000 Hrs on driveline
2 Years / 2000 Hrs on vehicle |
|
|
| Service Interval |
1000 Hrs |
|
|
Engine & Performanceof
| Engine |
Cummins ISLe |
Man D-0836 |
|
| Fuel Injection System |
Common Rail |
Common Rail |
|
| Engine Displacement |
8898 cc |
6900 cc |
|
| Power |
370 HP@2100 rpm |
300 HP@2300 rpm |
|
| Torque |
1550 Nm@1200-1400 rpm |
1150 Nm@1200-1800 rpm |
|
| Clutch |
Single dry plate, 430 mm dia |
Single plate, Power assisted |
|
| Transmission |
9 speed manual (8F+1CR+1R) |
6 Speed (5F+1R) |
|
| Gearbox |
Eaton ES 15409A |
Synchromesh |
|
| Gradeability |
Crawler gear: 74%
First gear: 50% |
24% |
|
| Max Speed |
66 Kmph |
80 Kmph |
|
| Emission Norms Compliance |
BSIII |
BS4 |
|
| Fuel Tank Capacity |
260 Litres |
300 Litres |
|
Design & Configurationof
| Vehicle Configuration |
Cabin with Box body
Cabin with Scoop body |
Cabin with body |
|
| Cabin Type |
Day cab |
Day cab |
|
| Cabin Tilt mechanism |
Tiltable cabin |
Hydraulically tiltable |
|
| Chassis Frame |
Ladder type with riveted/bolted cross members |
C channel rolled section |
|
| Axle Configuration |
8x4 |
8x2 |
|
| Front Axle |
Forged I beam
Twin steerable axles |
Drop Forged I-Beam type, Maintence free Hub Bearings |
|
| Rear Axle |
Planetary hub reduction, Fully floating
Tata RA-210 HR-T
RAR-7.246 |
Fully floating single speed hypoid axle |
|
| Front Suspension |
Parabolic leaf springs |
Semi elliptical leaf springs
With double acting shock absorbers |
|
| Rear Suspension |
Bogie suspension |
Bell crank suspension |
|
| Anti Roll Bar |
Front and Rear |
|
|
| Tyres |
12x24 - 18PR
Mining |
10x20 |
|
| Wheelbase |
5250 mm |
5740 mm |
|
| Turning Circle Diameter |
14.6 m |
|
|
| Ground Clearance |
358 mm |
292 mm (Front)
251 mm (Rear) |
|
| Overall Length |
9257 mm |
9555 mm |
|
| Overall Height |
3670 mm |
2783 mm |
|
| Chassis Flange width |
90 mm |
|
|
| Load Body Dimensions |
23 Cu.M Box body
19 Cu.M Scoop body |
|
|
Features & Comfortof
| Cabin Suspension |
Fully suspended |
|
|
| Steering |
Power steering |
Power Steering |
|
| Steering Adjustment |
Tilt and telescopic
Electronic control |
Tilt and telescopic |
|
| Driver Seat |
6 way adjustable
Air suspended |
6 way adjustable
Air suspended |
|
| Air Conditioner (AC) |
Yes (HVAC) |
Yes |
|
| Quarter Ventilation Glass |
No |
No |
|
| Instrument Cluster |
Digital |
Digital
With on board diagnostics |
|
| Automatic Transmission |
No |
|
|
Safetyof
| Service Brakes |
Air Brakes |
Air brakes
Electronic Brake System (EBS) |
|
| Anti Roll Bar |
Front and Rear |
|
|
