Compare Tata LPT 1109 Ex vs Tata 1112 LPT
Compare tata lpt 1109 ex vs Tata 1112 LPT
![https://res.cloudinary.com/dz4x78ghb/image/fetch/c_scale,q_30,w_300,f_auto/https://www.trucksbuses.com/uploads/228_7926ec84927f4e03bad959123c7ca8591109_Ex__1_-removebg-preview (1).png]()

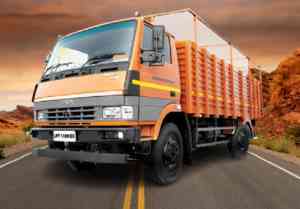

Tata LPT 1109 Ex
![https://res.cloudinary.com/dz4x78ghb/image/fetch/c_scale,q_30,w_300,f_auto/https://www.trucksbuses.com/uploads/4479_8c2d2489125647bfa94ec4be1085d074Tata_1112_LPT_Truck.jpg]()
Tata 1112 LPT
-
Overviewof tata lpt 1109 ex vs Tata 1112 LPT
-
Power
123 HP@2400 rpm
125 HP@2600 rpm
-
Torque
400 Nm@1300-1500 rpm
390 Nm@1000-2200 rpm
-
Engine
497 TCIC Turbo-charged, Intercooled
3.3L NG
-
GVW (Kg)
11990 Kg
11250 Kg
-
Payload
6.8 to 7.3 tons
-
Variants
Cabin and chassis Cabin with load body options
Cabin and chassis Cabin with load body
-
Load Body Options
Fixed Side Deck High Side Deck
-
Body Length
16 ft 19 ft 19.3 ft
14 ft 17 ft 20 ft 22 ft
-
Axle Configuration
4x2
4x2
-
Warranty
3 Years / 3 Lakh Km on driveline
3 Years / 3 Lakh Km on driveline
-
Service Interval
40,000 Km (Oil change)
60,000 Km (Oil change)
-
Additional
Gear Shift Advisor
-
Engine & Performanceof tata lpt 1109 ex vs Tata 1112 LPT
-
Engine
497 TCIC Turbo-charged, Intercooled
3.3L NG
-
Power
123 HP@2400 rpm
125 HP@2600 rpm
-
Torque
400 Nm@1300-1500 rpm
390 Nm@1000-2200 rpm
-
Fuel Injection System
Electronic rotary type
Common Rail
-
Displacement
3783 cc
3300 cc
-
Cylinders
4
4
-
Transmission
5 speed manual (5F+1R)
5 speed (5F+1R)
-
Gearbox
GBS 40, Synchromesh type
GBS 40, Synchromesh
-
Clutch
330 mm dia
310 mm dia
-
Gradeability
23%
25.70%
-
Max Speed
80 Kmph
80 Kmph
-
Emission
BSIII
BS6
-
Fuel Type
Diesel
Diesel
-
Fuel Tank
160 Litres
Diesel: 120 Litres Ad Blue: 25 Litres
-
Battery
12V, 100 Ah Alternator: 65 Amps
12V, 100 Ah Alternator: 120 Amps
-
Design & Configurationof tata lpt 1109 ex vs Tata 1112 LPT
-
Variants
Cabin and chassis Cabin with load body options
Cabin and chassis Cabin with load body
-
Load Body Options
Fixed Side Deck High Side Deck
-
Body Length
16 ft 19 ft 19.3 ft
14 ft 17 ft 20 ft 22 ft
-
GVW
11990 Kg
11250 Kg
-
Kerb Weight
4400 Kg (3600 wb FSD) 4690 Kg (4200 wb FSD)
-
Axle Configuration
4x2
4x2
-
Cabin Type
Day cab
Day cab
-
Cabin Tilt mechanism
Manually tiltable
Manually tiltable
-
Chassis Frame
Ladder type with cross members
Ladder type with cross members
-
Front Axle
Forged I Beam, Reverse Elliot Type
Forged I Beam, Reverse Elliot Type
-
Rear Axle
Fully Floating, Single reduction hypoid gears
-
Front Suspension
Semi-elliptical leaf springs With telescopic shock absorbers
Parabolic leaf springs With telescopic shock absorbers
-
Rear Suspension
Semi-elliptical leaf springs With telescopic shock absorbers
Semi elliptical leaf springs
-
Tyres
8.25x20–16 PR 6+1 tyres
8.25R16 6+1 tyres
-
Wheelbase
3600 mm 4200 mm
3400 mm 3800 mm 4500 mm 4900 mm
-
Turning Circle Diameter
14.8 m (3600 wb) 16.6 m (4200 wb)
12.5 m (3400 wb) 13.8 m (3800 wb) 16.1 m (4500 wb) 17.5 m (4900 wb)
-
Ground Clearance
225 mm
203 mm
-
Overall Length
6644 mm (3600 wb) 7612 mm (4200 wb)
6224 mm (3400 wb HSD) 7102 mm (3800 wb HSD) 8045 mm (4500 wb HSD) 8642 mm (4900 wb HSD)
-
Overall Width
2325 mm
2255 mm
-
Load Body Width
2255 mm (FSD) 2313 mm (HSD)
2117 mm / 6.94 ft
-
Overall Height
2420 mm
-
Chassis Depth
223 mm
-
Chassis Flange width
60 mm
-
Chassis Thickness
7 mm
-
Features & Comfortof tata lpt 1109 ex vs Tata 1112 LPT
-
Steering Type
Mechanical type
Power Steering
-
Steering Adjustment
Tilt and telescopic
-
Driver Seat
6 way adjustable
4 way adjustable
-
Instrument cluster
Analog With LED display
Digital With mileage indicator Distance to empty
-
Cabin Suspension
-
Automatic Transmission
-
Telematics
-
Air Conditioner AC
-
Quarter Ventilation Glass
-
Mobile Charging Point
-
Bottle Holder
-
Music System
-
Cruise Control
-
Safetyof tata lpt 1109 ex vs Tata 1112 LPT
-
Service Brakes
Air brakes With automatic adjustment
Air brakes With auto slack adjuster
-
Parking Brakes
Graduated valve controlled spring brake Acting on rear axle
Graduated valve controlled spring brake
-
Exhaust Brake
-
ABS
-
Seat Belts
-
Fog Light
-
Tubeless Tyres
-
Differential Lock
-
Reverse Gear Buzzer
Key Comparison of Tata LPT 1109 Ex vs Tata 1112 LPT
Compare Tata LPT 1109 Ex vs Tata 1112 LPT in detail at TrucksBuses.com ! You can check detailed truck comparison of Tata LPT 1109 Ex with Tata 1112 LPT on the basis of engine, specifications, payload, price, mileage and features. Tata LPT 1109 Ex with a gross weight of 11990 Kg, gives a power of 123 HP@2400 rpm whereas Tata 1112 LPT produces 125 HP@2600 rpm of power and comes with a GVW of 11250 Kg. Powering the Tata LPT 1109 Ex truck is 3783 cc 4 cylinder, 3.3L NG engine whereas Tata 1112 LPT gets powered by a 4 cylinder, 3300 cc engine.
