Compare Tata LPK 2518 - 9S vs Man CLA 25.250 EVO 6x4

Compare tata lpk 2518 9s vs man cla 25 250 evo 6x4


https://res.cloudinary.com/dz4x78ghb/image/fetch/c_scale,q_30,w_300,f_auto/https://www.trucksbuses.com/uploads/145_7dc77f08afbd45489139deef7d1b867eTata-LPK-2518-hyva-Dumper-Tipper-Price-removebg-preview.png

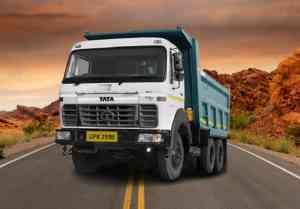

Tata LPK 2518 - 9S

https://res.cloudinary.com/dz4x78ghb/image/fetch/c_scale,q_30,w_300,f_auto/https://www.trucksbuses.com/uploads/16603_89b981988e8f4cfea5cbb344a44702ebMan CLA 25.250 EVO 6x4.jpg

Man CLA 25.250 EVO 6x4

  • Overviewof tata lpk 2518 9s vs man cla 25 250 evo 6x4

  • Power
    180 HP@2500 rpm
    255 HP@2300 rpm
  • Torque
    700 Nm@1500 rpm
    1150 Nm@1200-1850 rpm
  • Engine
    Cummins ISBe 5.9 CRDi
    SCR Technology
    Man D-0836
  • GVW (Kg)
    25000 Kg
    25000 Kg
  • Variants
    Cabin and chassis
    Cabin with Box body
    Cabin with rock body
  • Load Body Options
    16 Cu.M
  • Axle Configuration
    6x4
    6x4
  • Transmission
    9 speed manual (9F+1R)
    9 Speed (9F+1R)
  • Warranty
    6 Years / 6000 Hrs on driveline
    3 Years / 3000 Hrs on vehicle
  • Service Interval
    1000 Hrs
  • Additional
    Multi Drive Mode: Heavy, Light
  • Engine & Performanceof tata lpk 2518 9s vs man cla 25 250 evo 6x4

  • Engine
    Cummins ISBe 5.9 CRDi
    SCR Technology
    Man D-0836
  • Power
    180 HP@2500 rpm
    255 HP@2300 rpm
  • Torque
    700 Nm@1500 rpm
    1150 Nm@1200-1850 rpm
  • Fuel Injection System
    Common Rail
    Common Rail
  • Displacement
    5883 cc
    6900 cc
  • Cylinders
    6
    6
  • Transmission
    9 speed manual (9F+1R)
    9 Speed (9F+1R)
  • Gearbox
    Tata G 1150
    Synchromesh
  • Clutch
    Single dry plate, 380 mm dia
    Organic
    Single plate, Power assisted
  • Gradeability
    Crawler gear: 41.7%
    First gear: 28%
    49% (First gear)
    32% (Crawler gear)
  • Max Speed
    72 Kmph
    60 Kmph
  • Emission
    BSIV
    BS4
  • Fuel Type
    Diesel
    Diesel
  • Fuel Tank
    Diesel: 300 Litres
    Ad-blue: 35 Litres
    300 Litres
  • Battery
    24V, 120 Ah
    2x12 V, 100 Ah
  • Design & Configurationof tata lpk 2518 9s vs man cla 25 250 evo 6x4

  • Variants
    Cabin and chassis
    Cabin with Box body
    Cabin with rock body
  • Load Body Options
    16 Cu.M
  • GVW
    25000 Kg
    25000 Kg
  • Kerb Weight
    11855 Kg
  • Axle Configuration
    6x4
    6x4
  • Cabin Type
    Day Cab
    Day cab
  • Cabin Tilt mechanism
    NA
    Hydraulically tiltable
  • Chassis Frame
    Ladder type with cross members
    C channel rolled section
  • Front Axle
    Forged I Beam, Reverse Elliot Type
    Drop Forged I-Beam type, Maintence free Hub Bearings
  • Rear Axle
    Single reduction, Fully floating
    RA 109 SRT
    RAR: 6.42
    Planetary axles With Hub Reduction
    Stabliser for rear axle
  • Front Suspension
    Semi-elliptical leaf springs
    Semi elliptical leaf springs
    With double acting shock absorbers
  • Rear Suspension
    Semi-elliptical leaf springs
    Bogie suspension
  • Tyres
    10x20 - 16 PR
    11x20 - 16 PR
    Crossply, Non-mining
    11x20
  • Wheelbase
    3880 mm
    4525 mm
  • Turning Circle Diameter
    17 m
  • Ground Clearance
    235 mm
    292 mm (Front)
    272 mm (Rear)
  • Overall Length
    7040 mm
    7487 mm
  • Overall Width
    2400 mm
  • Overall Height
    3350 mm
    3282 mm
  • Front Overhang
    1338 mm
    1326 mm
  • Rear Overhang
    900 mm
  • Front Track
    1964 mm
    2075 mm
  • Rear Track
    1901 mm
    1800 mm
  • Chassis Depth
    285 mm
  • Chassis Flange width
    65 mm
  • Chassis Thickness
    7 mm
  • Features & Comfortof tata lpk 2518 9s vs man cla 25 250 evo 6x4

  • Steering Type
    Power steering
    Power Steering
  • Steering Adjustment
    Tilt and telescopic
  • Driver Seat
    6 way adjustable
    6 way adjustable
    Air suspended
  • Instrument cluster
    Digital
    Digital
    With on board diagnostics
  • Cabin Suspension
    Suspended
  • Automatic Transmission
  • Telematics
  • Air Conditioner AC
    Optional
  • Quarter Ventilation Glass
  • Mobile Charging Point
  • Bottle Holder
  • Music System
  • Cruise Control
  • Safetyof tata lpk 2518 9s vs man cla 25 250 evo 6x4

  • Service Brakes
    Air Brakes
    With automatic adjuster
    Air brakes
    Electronic Brake System (EBS)
  • Parking Brakes
    Spring actuated
    Yes
    Electronic parking brake activation
  • Exhaust Brake
  • ABS
  • Seat Belts
  • Fog Light
  • Anti Roll Bar
    Front only
  • Tubeless Tyres
  • Reverse Gear Buzzer

Key Comparison of Tata LPK 2518 - 9S vs Man CLA 25.250 EVO 6x4

Compare Tata LPK 2518 - 9S vs Man CLA 25.250 EVO 6x4 in detail at TrucksBuses.com ! You can check detailed truck comparison of Tata LPK 2518 - 9S with Man CLA 25.250 EVO 6x4 on the basis of engine, specifications, payload, price, mileage and features. Tata LPK 2518 - 9S with a gross weight of 25000 Kg, gives a power of 180 HP@2500 rpm whereas Man CLA 25.250 EVO 6x4 produces 255 HP@2300 rpm of power and comes with a GVW of 25000 Kg. Powering the Tata LPK 2518 - 9S truck is 5883 cc 6 cylinder, Man D-0836 engine whereas Man CLA 25.250 EVO 6x4 gets powered by a 6 cylinder, 6900 cc engine.
