Compare Tata LPK 1613 Hymiler vs Man CLA 16.250 EVO 4x2
Compare tata lpk 1613 hymiler vs man cla 16 250 evo 4x2

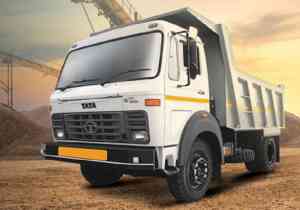

Tata LPK 1613 Hymiler
Man CLA 16.250 EVO 4x2
Overviewof
| GVW (Kg) |
16200 Kg |
16200 Kg |
|
| Axle Configuration |
4x2 |
4x2 |
|
| Engine |
Tata 697 TCIC CRDi |
Man D-0836 |
|
| Power |
134 HP@2400 rpm |
255 HP@2300 rpm |
|
| Torque |
490 Nm@1400 rpm |
950 Nm@1100-1850 rpm |
|
| Transmission |
6 speed manual (6F+1R) |
6 Speed (5F+1R) |
|
| Variants |
Cabin with Box body |
Cabin with rock body |
|
| Warranty |
6 Years / 6000 Hrs on driveline
3 Years / 3000 Hrs on vehicle |
|
|
Engine & Performanceof
| Engine |
Tata 697 TCIC CRDi |
Man D-0836 |
|
| Fuel Injection System |
Common Rail |
Common Rail |
|
| Engine Displacement |
5675 cc |
6900 cc |
|
| Power |
134 HP@2400 rpm |
255 HP@2300 rpm |
|
| Torque |
490 Nm@1400 rpm |
950 Nm@1100-1850 rpm |
|
| Clutch |
Single dry plate, 352 mm dia |
Single plate, Power assisted |
|
| Transmission |
6 speed manual (6F+1R) |
6 Speed (5F+1R) |
|
| Gearbox |
GBS 600 |
Synchromesh |
|
| Max Speed |
79 Kmph |
60 Kmph |
|
| Emission Norms Compliance |
BSIV |
BS4 |
|
| Fuel Tank Capacity |
160 Litres |
200 Litres |
|
| Electricals Battery |
2x12V - 120 Ah |
2x12 V, 100 Ah |
|
Design & Configurationof
| Vehicle Configuration |
Cabin with Box body |
Cabin with rock body |
|
| Cabin Type |
Day Cab |
Day cab |
|
| Cabin Tilt mechanism |
NA |
Hydraulically tiltable |
|
| Chassis Frame |
Ladder type with cross members |
C channel rolled section |
|
| Axle Configuration |
4x2 |
4x2 |
|
| Front Axle |
Forged I Beam, Reverse Elliot Type |
Drop Forged I-Beam type, Maintence free Hub Bearings |
|
| Rear Axle |
RA 109 RX
RAR 5.57 |
|
|
| Front Suspension |
Semi-elliptical leaf springs |
Semi elliptical leaf springs
With double acting shock absorbers |
|
| Rear Suspension |
Semi-elliptical leaf springs |
2 stage semi elliptical leaf springs |
|
| Tyres |
10x20 - 16 PR
Crossply, Non-mining |
11x20 |
|
| Wheelbase |
3580 mm |
3600 mm |
|
| Turning Circle Diameter |
14.4 m |
|
|
| Ground Clearance |
248 mm |
292 mm (Front)
327 mm (Rear) |
|
| Overall Length |
6365 mm |
6012 mm |
|
| Overall Height |
3285 mm |
3038 mm |
|
| Front Overhang |
1336 mm |
1362 mm |
|
| Rear Overhang |
1125 mm |
1050 mm |
|
| Chassis Flange width |
65 mm |
|
|
| Load Body Dimensions |
10 Cu.M Box body
10 Cu.M Drop Side Box body
8.5 Cu.M Box body |
|
|
Features & Comfortof
| Cabin Suspension |
Semi suspended |
|
|
| Steering |
Power steering |
Power Steering |
|
| Steering Adjustment |
No |
Tilt and telescopic |
|
| Driver Seat |
6 way adjustable |
6 way adjustable
Air suspended |
|
| Air Conditioner (AC) |
No |
Yes |
|
| Quarter Ventilation Glass |
Yes |
No |
|
| Instrument Cluster |
Analog |
Digital
With on board diagnostics |
|
| Automatic Transmission |
No |
|
|
Safetyof
| Service Brakes |
Air Brakes |
Air brakes
Electronic Brake System (EBS) |
|
| Parking Brakes |
Spring actuated |
Yes
Electronic parking brake activation |
|
Key Comparison of Tata LPK 1613 Hymiler vs Man CLA 16.250 EVO 4x2
Compare Tata LPK 1613 Hymiler vs Man CLA 16.250 EVO 4x2 in detail at TrucksBuses.com ! You can check detailed truck comparison of Tata LPK 1613 Hymiler with Man CLA 16.250 EVO 4x2 on the basis of engine, specifications, payload, price, mileage and features. Tata LPK 1613 Hymiler with a gross weight of , gives a power of whereas Man CLA 16.250 EVO 4x2 produces of power and comes with a GVW of . Powering the Tata LPK 1613 Hymiler truck is cylinder, engine whereas Man CLA 16.250 EVO 4x2 gets powered by a cylinder, engine.
