Compare BharatBenz 2528CM vs Man CLA 25.300 EVO 6x4
Compare bharatbenz 2528cm vs man cla 25 300 evo 6x4

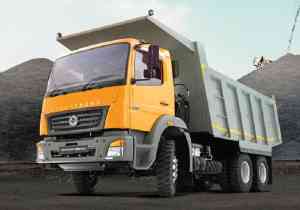

BharatBenz 2528CM
Man CLA 25.300 EVO 6x4
Overviewof
| GVW (Kg) |
25000 Kg |
25000 Kg |
|
| Axle Configuration |
6x4 |
6x4 |
|
| Engine |
DE210BS4
SCR technology |
Man D-0836 |
|
| Power |
281 HP@2200 rpm |
300 HP@2300 rpm |
|
| Torque |
1120 Nm@1200-1600 rpm |
1150 Nm@1200-1800 rpm |
|
| Transmission |
9 speed manual (9F+1R) |
9 Speed (9F+1R) |
|
| Variants |
Cab with Box body
Cab with Scoop body |
Cabin with rock body |
|
| Warranty |
2 Years / 4000 Hrs on driveline |
|
|
Engine & Performanceof
| Engine |
DE210BS4
SCR technology |
Man D-0836 |
|
| Fuel Injection System |
Unitised fuel injection pump |
Common Rail |
|
| Engine Displacement |
6373 cc |
6900 cc |
|
| Power |
281 HP@2200 rpm |
300 HP@2300 rpm |
|
| Torque |
1120 Nm@1200-1600 rpm |
1150 Nm@1200-1800 rpm |
|
| Clutch |
Single dry plate, 430 mm dia
With clutch booster |
Single plate, Power assisted |
|
| Transmission |
9 speed manual (9F+1R) |
9 Speed (9F+1R) |
|
| Gearbox |
G131, Synchromesh Gears |
Synchromesh |
|
| Gradeability |
80% |
40% (First gear)
63% (Crawler gear) |
|
| Max Speed |
60 Kmph |
60 Kmph |
|
| Emission Norms Compliance |
BSIV |
BS4 |
|
| Fuel Tank Capacity |
Diesel: 290 Litres
Ad-blue: 60 Litres |
300 Litres |
|
| Electricals Battery |
2x12V-120 Ah |
2x12 V, 100 Ah |
|
Design & Configurationof
| Vehicle Configuration |
Cab with Box body
Cab with Scoop body |
Cabin with rock body |
|
| Cabin Type |
Day Cab
With provision for sleeping |
Day cab |
|
| Cabin Tilt mechanism |
Hydraulically tiltable |
Hydraulically tiltable |
|
| Chassis Frame |
Channel section with cross members |
C channel rolled section |
|
| Axle Configuration |
6x4 |
6x4 |
|
| Front Axle |
IF 6.6, Reverse Elliot Type |
Straight Forged I-Beam type, Maintence free Hub Bearings |
|
| Rear Axle |
Hub reduction axle
RA2 - IRT390T-11, Topoid gears |
Planetary axles With Hub Reduction
Stabliser for rear axle |
|
| Front Suspension |
Parabolic leaf springs
With telescopic shock absorbers |
Semi elliptical leaf springs
With double acting shock absorbers |
|
| Rear Suspension |
Bogie suspension |
Bogie suspension |
|
| Anti Roll Bar |
Front and Rear |
|
|
| Tyres |
11x20 - 18 PR Mining |
11x20 |
|
| Wheelbase |
4275 mm |
4525 mm |
|
| Turning Circle Diameter |
15.5 m |
|
|
| Ground Clearance |
234 mm |
385 mm (Front)
327 mm (Rear) |
|
| Overall Length |
7160 mm |
7487 mm |
|
| Overall Height |
2975 mm |
3612 mm |
|
| Front Overhang |
1460 mm |
1362 mm |
|
| Rear Overhang |
750 mm |
900 mm |
|
| Chassis Flange width |
70 mm |
|
|
| Load Body Dimensions |
16 Cu.M Box body
16 Cu.M Scoop body |
|
|
Features & Comfortof
| Cabin Suspension |
Fully Suspended |
|
|
| Steering |
Power steering |
Power Steering |
|
| Steering Adjustment |
Tilt and telescopic |
Tilt and telescopic |
|
| Driver Seat |
6 way adjustable |
6 way adjustable
Air suspended |
|
| Air Conditioner (AC) |
Blower as Standard
HVAC (Optional) |
Yes |
|
| Quarter Ventilation Glass |
No |
No |
|
| Instrument Cluster |
Intelligent instrument cluster with indicators for:
Trip mileage
Neutral and reverse gear
Distance to empty fuel |
Digital
With on board diagnostics |
|
| Mobile Charging Point |
Yes |
Yes |
|
| Automatic Transmission |
No |
|
|
Safetyof
| Service Brakes |
Air Brakes |
Air brakes
Electronic Brake System (EBS) |
|
| Parking Brakes |
Hand control valve acting on rear axle |
Yes
Electronic parking brake activation |
|
| Exhaust Brake |
Exhaust brake
Constant throttle engine brake |
|
|
| Anti Roll Bar |
Front and Rear |
|
|
Key Comparison of BharatBenz 2528CM vs Man CLA 25.300 EVO 6x4
Compare BharatBenz 2528CM vs Man CLA 25.300 EVO 6x4 in detail at TrucksBuses.com ! You can check detailed truck comparison of BharatBenz 2528CM with Man CLA 25.300 EVO 6x4 on the basis of engine, specifications, payload, price, mileage and features. BharatBenz 2528CM with a gross weight of , gives a power of whereas Man CLA 25.300 EVO 6x4 produces of power and comes with a GVW of . Powering the BharatBenz 2528CM truck is cylinder, engine whereas Man CLA 25.300 EVO 6x4 gets powered by a cylinder, engine.
