Compare Ashok Leyland U 4019 vs Ashok Leyland 4019
Compare ashok leyland u 4019 vs ashok leyland 4019
Ashok Leyland U 4019

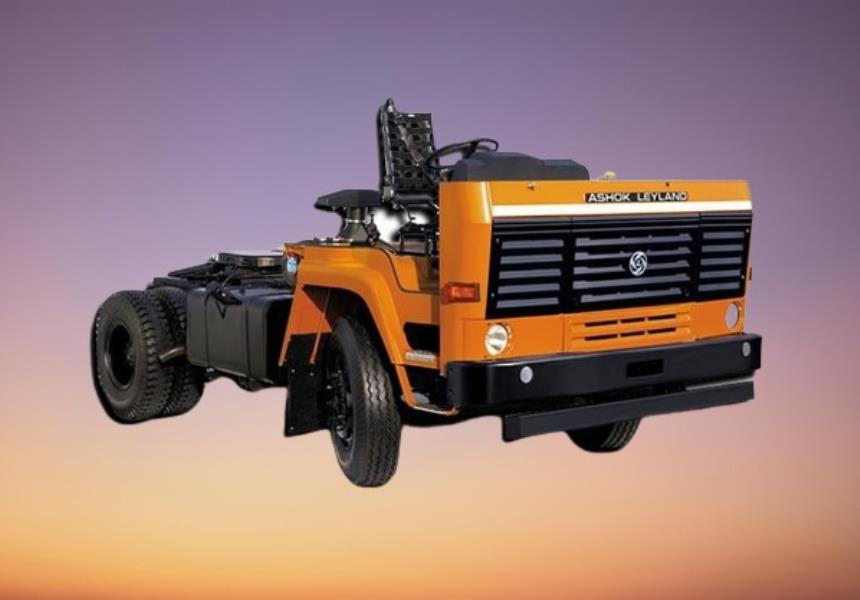

Ashok Leyland 4019
Overviewof
| GCW (Kg) |
39336 Kg |
40200 Kg |
|
| Axle Configuration |
4x2 |
4x2 |
|
| Engine |
H Series 5.7L CRS
iEGR Technology |
H Series 5.7L CRS
iEGR Technology |
|
| Power |
180 HP@2400 rpm |
180 HP@2400 rpm |
|
| Torque |
660 Nm@1200-1900 rpm |
660 Nm@1200-1900 rpm |
|
| Transmission |
6 speed manual (6F+ 1R) |
6 speed manual (6F+ 1R) |
|
| Warranty |
4 Years / 4 Lakh Km |
4 Years / 4 Lakh Km |
|
| Service Interval |
80,000 Km (Oil change) |
80,000 Km (Oil change) |
|
Engine & Performanceof
| Engine |
H Series 5.7L CRS
iEGR Technology |
H Series 5.7L CRS
iEGR Technology |
|
| Fuel Injection System |
Common Rail |
Common Rail |
|
| Engine Displacement |
5660 cc |
5660 cc |
|
| Power |
180 HP@2400 rpm |
180 HP@2400 rpm |
|
| Torque |
660 Nm@1200-1900 rpm |
660 Nm@1200-1900 rpm |
|
| Clutch |
Single plate, 380 mm dia
With clutch booster |
Single plate, 380 mm dia
With clutch booster |
|
| Transmission |
6 speed manual (6F+ 1R) |
6 speed manual (6F+ 1R) |
|
| Gradeability |
16.9% |
16.73% |
|
| Max Speed |
70 Kmph |
70 Kmph |
|
| Emission Norms Compliance |
BSIV |
BSIV |
|
| Fuel Tank Capacity |
400 Litres
Polymer tank |
400 Litres |
|
| Electricals Battery |
2x12V |
2X12V,130 Ah |
|
Design & Configurationof
| Gross Combination Weight |
39336 Kg |
40200 Kg |
|
| Kerb Weight |
5900 Kg |
4510 Kg |
|
| Cabin Type |
Sleeper cabin |
Only face cowl |
|
| Cabin Tilt mechanism |
Tiltable Cabin |
NA |
|
| Chassis Frame |
Ladder type joggled bolted with cross members |
Ladder type joggled bolted with cross members |
|
| Axle Configuration |
4x2 |
4x2 |
|
| Front Axle |
Forged I Beam, Reverse Elliot Type |
Forged I Beam, Reverse Elliot Type |
|
| Rear Axle |
Single-speed hypoid gear Axle
RAR 6.83:1 |
Single-speed hypoid gear Axle
RAR 6.83:1 |
|
| Front Suspension |
Parabolic leaf springs |
Semi-elliptical leaf springs |
|
| Rear Suspension |
Semi-elliptical leaf springs |
Semi-elliptical leaf springs |
|
| Tyres |
Front: 295/80 R22.5 Tubeless
Rear: 10R20 |
10 R 20-16 PR
Radial tyres |
|
| Wheelbase |
3300 mm |
3300 mm |
|
| Turning Circle Diameter |
14.6 m |
13 m |
|
| Ground Clearance |
260 mm |
260 mm |
|
| Overall Length |
5679 mm |
5670 mm |
|
| Overall Width |
2432 mm |
2445 mm |
|
| Front Track |
1978 mm |
1957 mm |
|
| Rear Track |
1816 mm |
1816 mm |
|
| Chassis Depth |
275 mm |
228.2 mm |
|
| Chassis Flange width |
90 mm |
75 mm |
|
| Chassis Thickness |
6 mm |
6 mm |
|
Features & Comfortof
| Cabin Suspension |
Fully suspended |
NA |
|
| Steering |
Power Steering |
Power Steering |
|
| Steering Adjustment |
Tilt and telescopic |
Tilt and telescopic |
|
| Air Conditioner (AC) |
Optional |
No |
|
| Quarter Ventilation Glass |
Yes |
NA |
|
| Instrument Cluster |
Analog
With LED display |
Analog
With LED display |
|
| Automatic Transmission |
No |
No |
|
Safetyof
| Service Brakes |
Air Brakes, dual line |
Air Brakes, dual line |
|
| Parking Brakes |
Spring actuated pneumatic
Acting on rear wheels |
Flick valve operated pneumatic
Acting on rear wheels |
|
| Tubeless Tyres |
Optional |
No |
|
Key Comparison of Ashok Leyland U 4019 vs Ashok Leyland 4019
Compare Ashok Leyland U 4019 vs Ashok Leyland 4019 in detail at TrucksBuses.com ! You can check detailed truck comparison of Ashok Leyland U 4019 with Ashok Leyland 4019 on the basis of engine, specifications, payload, price, mileage and features. Ashok Leyland U 4019 with a gross weight of , gives a power of whereas Ashok Leyland 4019 produces of power and comes with a GVW of . Powering the Ashok Leyland U 4019 truck is cylinder, engine whereas Ashok Leyland 4019 gets powered by a cylinder, engine.
