Compare Ashok Leyland U-3123T vs Man CLA 31.300 EVO 8x2
Compare ashok leyland u 3123t vs man cla 31 300 evo 8x2

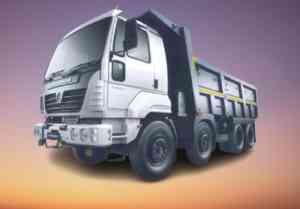

Ashok Leyland U-3123T
Man CLA 31.300 EVO 8x2
Overviewof
| GVW (Kg) |
31000 Kg |
31000 Kg |
|
| Axle Configuration |
8x4 |
8x2 |
|
| Engine |
H Series CRS TCIC
EGR Technology |
Man D-0836 |
|
| Power |
225 HP@2500 rpm |
300 HP@2300 rpm |
|
| Torque |
800 Nm@1400-1900 rpm |
1150 Nm@1200-1800 rpm |
|
| Transmission |
9 speed manual (8F+ 1CR+1R) |
6 Speed (5F+1R) |
|
| Variants |
Cabin with Box body |
Cabin with body |
|
| Warranty |
4 Years / 6000 Hrs on driveline |
|
|
| Service Interval |
500 Hrs / 20000 Km |
|
|
Engine & Performanceof
| Engine |
H Series CRS TCIC
EGR Technology |
Man D-0836 |
|
| Fuel Injection System |
Common Rail |
Common Rail |
|
| Engine Displacement |
5660 cc |
6900 cc |
|
| Power |
225 HP@2500 rpm |
300 HP@2300 rpm |
|
| Torque |
800 Nm@1400-1900 rpm |
1150 Nm@1200-1800 rpm |
|
| Clutch |
380 mm dia
With clutch booster |
Single plate, Power assisted |
|
| Transmission |
9 speed manual (8F+ 1CR+1R) |
6 Speed (5F+1R) |
|
| Gearbox |
Synchromesh gearbox |
Synchromesh |
|
| Max Speed |
80 Kmph |
80 Kmph |
|
| Emission Norms Compliance |
BSIV |
BS4 |
|
| Fuel Tank Capacity |
300 Litres
Cross linked polymer tank |
300 Litres |
|
| Electricals Battery |
2X12V-130 Ah |
2x12 V, 100 Ah |
|
Design & Configurationof
| Vehicle Configuration |
Cabin with Box body |
Cabin with body |
|
| Cabin Type |
Day Cab
With provision for sleeping |
Day cab |
|
| Chassis Frame |
Joggled bolted frame with cross members |
C channel rolled section |
|
| Axle Configuration |
8x4 |
8x2 |
|
| Front Axle |
Forged I Beam, Reverse Elliot Type
Twin steerable axles |
Drop Forged I-Beam type, Maintence free Hub Bearings |
|
| Rear Axle |
Fully floating, Hypoid gears
Single speed
RAR: 5.83:1 |
Fully floating single speed hypoid axle |
|
| Front Suspension |
Semi-elliptical leaf springs
With telescopic shock absorbers |
Semi elliptical leaf springs
With double acting shock absorbers |
|
| Rear Suspension |
Bogie suspension |
Bell crank suspension |
|
| Tyres |
11x20 - 16 PR Crossply |
10x20 |
|
| Wheelbase |
5250 mm |
5740 mm |
|
| Turning Circle Diameter |
21.8 m |
|
|
| Ground Clearance |
260 mm |
292 mm (Front)
251 mm (Rear) |
|
| Overall Length |
8920 mm |
9555 mm |
|
| Front Overhang |
1522 mm |
1300 mm |
|
| Rear Overhang |
1450 mm |
1800 mm |
|
| Front Track |
2044 mm |
2091 mm |
|
| Rear Track |
1870 mm |
1818 mm |
|
| Chassis Flange width |
90 mm |
|
|
| Load Body Dimensions |
19 Cu.M Box body
22 Cu.M Box body |
|
|
Features & Comfortof
| Cabin Suspension |
Fully Suspended |
|
|
| Steering |
Power steering |
Power Steering |
|
| Driver Seat |
4 way adjustable |
6 way adjustable
Air suspended |
|
| Air Conditioner (AC) |
Optional |
Yes |
|
| Automatic Transmission |
No |
|
|
Safetyof
| Service Brakes |
Air Brakes |
Air brakes
Electronic Brake System (EBS) |
|
| Parking Brakes |
Pneumatic flick valve operated
Acting on rear wheels |
Yes
Electronic parking brake activation |
|
Key Comparison of Ashok Leyland U-3123T vs Man CLA 31.300 EVO 8x2
Compare Ashok Leyland U-3123T vs Man CLA 31.300 EVO 8x2 in detail at TrucksBuses.com ! You can check detailed truck comparison of Ashok Leyland U-3123T with Man CLA 31.300 EVO 8x2 on the basis of engine, specifications, payload, price, mileage and features. Ashok Leyland U-3123T with a gross weight of , gives a power of whereas Man CLA 31.300 EVO 8x2 produces of power and comes with a GVW of . Powering the Ashok Leyland U-3123T truck is cylinder, engine whereas Man CLA 31.300 EVO 8x2 gets powered by a cylinder, engine.
