Compare Ashok Leyland CT 1618 vs Man CLA 16.250 EVO 4x2
Compare ashok leyland ct 1618 vs man cla 16 250 evo 4x2

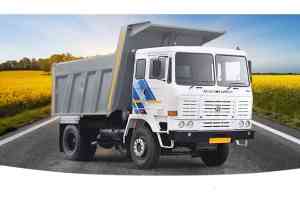

Ashok Leyland CT 1618
Man CLA 16.250 EVO 4x2
Overviewof
| GVW (Kg) |
16200 Kg |
16200 Kg |
|
| Axle Configuration |
4x2 |
4x2 |
|
| Engine |
H Series CRS
iEGR Technology |
Man D-0836 |
|
| Power |
180 HP@2400 rpm |
255 HP@2300 rpm |
|
| Torque |
660 Nm@1200-1900 rpm |
950 Nm@1100-1850 rpm |
|
| Transmission |
6 speed manual (6F+1R) |
6 Speed (5F+1R) |
|
| Variants |
Cabin with body
Cabin and Chassis |
Cabin with rock body |
|
| Warranty |
4 Years / 5000 Hrs on driveline |
|
|
| Service Interval |
500 Hrs / 20000 Km |
|
|
Engine & Performanceof
| Engine |
H Series CRS
iEGR Technology |
Man D-0836 |
|
| Fuel Injection System |
Common Rail |
Common Rail |
|
| Engine Displacement |
5660 cc |
6900 cc |
|
| Power |
180 HP@2400 rpm |
255 HP@2300 rpm |
|
| Torque |
660 Nm@1200-1900 rpm |
950 Nm@1100-1850 rpm |
|
| Clutch |
380 mm dia
With clutch booster |
Single plate, Power assisted |
|
| Transmission |
6 speed manual (6F+1R) |
6 Speed (5F+1R) |
|
| Gearbox |
ALGB 940 |
Synchromesh |
|
| Emission Norms Compliance |
BSIV |
BS4 |
|
| Fuel Tank Capacity |
212 Litres |
200 Litres |
|
| Electricals Battery |
2X12V-110 Ah |
2x12 V, 100 Ah |
|
Design & Configurationof
| Vehicle Configuration |
Cabin with body
Cabin and Chassis |
Cabin with rock body |
|
| Cabin Type |
Day cabin |
Day cab |
|
| Cabin Tilt mechanism |
Non tiltable |
Hydraulically tiltable |
|
| Chassis Frame |
Bolted frame with cross members |
C channel rolled section |
|
| Axle Configuration |
4x2 |
4x2 |
|
| Front Axle |
I Beam, Reverse Elliot Type |
Drop Forged I-Beam type, Maintence free Hub Bearings |
|
| Rear Axle |
Fully floating, Hypoid gears
Single speed
RAR: 5.83:1 |
|
|
| Front Suspension |
Semi-elliptical leaf springs
With telescopic shock absorbers |
Semi elliptical leaf springs
With double acting shock absorbers |
|
| Rear Suspension |
Semi-elliptical leaf springs |
2 stage semi elliptical leaf springs |
|
| Tyres |
10x20 - 16 PR Crossply |
11x20 |
|
| Wheelbase |
3607 mm |
3600 mm |
|
| Turning Circle Diameter |
14.1 m |
|
|
| Ground Clearance |
260 mm |
292 mm (Front)
327 mm (Rear) |
|
| Rear Overhang |
1450 mm |
1050 mm |
|
| Front Track |
2054 mm |
2075 mm |
|
| Chassis Flange width |
75 mm |
|
|
| Load Body Dimensions |
8.5 Cu.M body
10.5 Cu.M body |
|
|
Features & Comfortof
| Steering |
Power steering |
Power Steering |
|
| Steering Adjustment |
No |
Tilt and telescopic |
|
| Driver Seat |
4 way adjustable |
6 way adjustable
Air suspended |
|
| Air Conditioner (AC) |
No |
Yes |
|
| Quarter Ventilation Glass |
Yes |
No |
|
| Instrument Cluster |
Analog |
Digital
With on board diagnostics |
|
| Automatic Transmission |
No |
|
|
Safetyof
| Service Brakes |
Air Brakes
With ABS and ASA |
Air brakes
Electronic Brake System (EBS) |
|
| Parking Brakes |
Pneumatic flick valve operated
Acting on rear wheels |
Yes
Electronic parking brake activation |
|
Key Comparison of Ashok Leyland CT 1618 vs Man CLA 16.250 EVO 4x2
Compare Ashok Leyland CT 1618 vs Man CLA 16.250 EVO 4x2 in detail at TrucksBuses.com ! You can check detailed truck comparison of Ashok Leyland CT 1618 with Man CLA 16.250 EVO 4x2 on the basis of engine, specifications, payload, price, mileage and features. Ashok Leyland CT 1618 with a gross weight of , gives a power of whereas Man CLA 16.250 EVO 4x2 produces of power and comes with a GVW of . Powering the Ashok Leyland CT 1618 truck is cylinder, engine whereas Man CLA 16.250 EVO 4x2 gets powered by a cylinder, engine.
