Compare Ashok Leyland 4220 AVTR vs BharatBenz 4028T
Compare ashok leyland avtr 4220 vs BharatBenz 4028T
Ashok Leyland 4220 AVTR

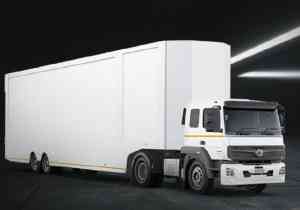

BharatBenz 4028T
Overviewof
| GCW (Kg) |
41500 Kg |
41500 Kg (trailer with air suspension)
39500 Kg (trailer with leaf spring) |
|
| Axle Configuration |
4x2 |
4x2 |
|
| Engine |
H series CRS
iGen-6 technology |
OM 926 |
|
| Power |
200 HP@2400 rpm |
281 HP @2200 rpm |
|
| Torque |
700 Nm@1200-2000 rpm |
1100 Nm @1200-1600 rpm |
|
| Transmission |
6 speed (6F+1R)
With cable shift |
9 speed (9F+1R) |
|
| Warranty |
4 Years / 4 Lakh Km |
6 Years / 6 Lakh km on driveline
3 Years / 3 Lakh km on vehicle |
|
| Service Interval |
80,000 Km (Oil change) |
60,000 Km (Oil change) |
|
| Additional |
Gear Shift Advisor |
Gear Shift Indicator |
|
Engine & Performanceof
| Engine |
H series CRS
iGen-6 technology |
OM 926 |
|
| Fuel Injection System |
Common Rail |
Unitised fuel injection pump |
|
| Engine Displacement |
5660 cc |
7200 cc |
|
| Power |
200 HP@2400 rpm |
281 HP @2200 rpm |
|
| Torque |
700 Nm@1200-2000 rpm |
1100 Nm @1200-1600 rpm |
|
| Clutch |
380 mm dia
With clutch booster |
430 mm dia
With clutch booster |
|
| Transmission |
6 speed (6F+1R)
With cable shift |
9 speed (9F+1R) |
|
| Gearbox |
ZF 6S 850 |
G131, Synchromesh |
|
| Max Speed |
80 Kmph |
80 Kmph |
|
| Emission Norms Compliance |
BS6 |
BS6 |
|
| Fuel Tank Capacity |
Diesel: 300 / 375 Litres
Ad Blue: 48 Litres
Polymer tank |
Diesel: 455 / 430 Litres
Ad Blue: 60 / 51 Litres
With diesel anti-theft strain |
|
| Electricals Battery |
24V, 120 Ah / 150 Ah (AC) |
24V, 120 Ah |
|
Design & Configurationof
| Gross Combination Weight |
41500 Kg |
41500 Kg (trailer with air suspension)
39500 Kg (trailer with leaf spring) |
|
| Cabin Type |
Sleeper cabin |
Sleeper cabin |
|
| Cabin Tilt mechanism |
|
Hydraulically tiltable |
|
| Chassis Frame |
HSS material, bolted construction |
Channel section with cross members |
|
| Axle Configuration |
4x2 |
4x2 |
|
| Front Axle |
Forged I Beam, Reverse Elliot Type
Unitized wheel bearings (Optional) |
IF 7.0 Reverse Elliot Type |
|
| Rear Axle |
Fully floating, Single speed
Unitized wheel bearings (Optional) |
IR440-11
RAR 4.3 |
|
| Front Suspension |
Semi elliptical leaf springs
Parabolic leaf spring (Optional) |
Parabolic leaf springs
With telescopic shock absorbers |
|
| Rear Suspension |
Semi elliptical leaf springs
Parabolic helper spring |
Semi elliptical leaf springs |
|
| Anti Roll Bar |
Optional in front |
Front and Rear |
|
| Tyres |
295/90R20 (Tube)
6+1 tyres |
295/90R20 Tube type
295/80 R22.5 Tubeless
6+1 tyres |
|
| Wheelbase |
3400 mm |
3600 mm |
|
| Turning Circle Diameter |
12.6 m |
13.1 m |
|
| Ground Clearance |
260 mm |
304 mm |
|
| Overall Length |
5950 mm |
6063 mm |
|
| Overall Width |
2570 mm |
2490 mm |
|
| Overall Height |
3145 mm (M Cabin)
3165 mm (U Cabin)
3110 mm (N Cabin) |
2975 mm |
|
| Front Overhang |
1550 mm |
1485 mm |
|
| Rear Overhang |
1000 mm |
978 mm |
|
| Chassis Depth |
275 mm |
288 mm |
|
| Chassis Flange width |
75 mm |
70 mm |
|
| Chassis Thickness |
7 / 8 mm |
9 mm |
|
Features & Comfortof
| Cabin Suspension |
|
Fully suspended |
|
| Steering |
Power Steering |
Power Steering |
|
| Steering Adjustment |
Rigid (In Cowl)
Tilt and telescopic (U / N cab) |
Tilt and telescopic |
|
| Driver Seat |
|
6 way adjustable
Air suspended seat (Optional) |
|
| Air Conditioner (AC) |
Optional |
HVAC (Optional) |
|
| Quarter Ventilation Glass |
|
No |
|
| Instrument Cluster |
Digital
With mileage indicator |
Digital with indicators for:
Mileage
Reverse gear indication
Distance to empty |
|
| Mobile Charging Point |
Yes |
Yes |
|
| Automatic Transmission |
No |
No |
|
Safetyof
| Service Brakes |
Air brakes
With ASA |
Air brakes |
|
| Parking Brakes |
Acting on rear axle |
Pneumatically operated |
|
| Anti Roll Bar |
Optional in front |
Front and Rear |
|
| Reverse Parking_Buzzer |
Yes |
Yes |
|
| Tubeless Tyres |
Optional |
Optional |
|
Key Comparison of Ashok Leyland 4220 AVTR vs BharatBenz 4028T
Compare Ashok Leyland 4220 AVTR vs BharatBenz 4028T in detail at TrucksBuses.com ! You can check detailed truck comparison of Ashok Leyland 4220 AVTR with BharatBenz 4028T on the basis of engine, specifications, payload, price, mileage and features. Ashok Leyland 4220 AVTR with a gross weight of , gives a power of whereas BharatBenz 4028T produces of power and comes with a GVW of . Powering the Ashok Leyland 4220 AVTR truck is cylinder, engine whereas BharatBenz 4028T gets powered by a cylinder, engine.
