Compare Ashok Leyland 2820 Drill Rig vs Tata Signa 2821.T
Compare Ashok Leyland 2820 Drill Rig vs tata signa 2821 t
![https://res.cloudinary.com/dz4x78ghb/image/fetch/c_scale,q_30,w_300,f_auto/https://www.trucksbuses.com/uploads/9596_6c9a05bed15f4713a03131880a6fb3f0Ashok-Leyland-2820-Drill-Rig-Truck.jpg]()
Ashok Leyland 2820 Drill Rig
![https://res.cloudinary.com/dz4x78ghb/image/fetch/c_scale,q_30,w_300,f_auto/https://www.trucksbuses.com/uploads/644_5df5a901a8434a2394e3faaf658d2690tata-lpt-signa-2821-10-wheeler-truck.jpg]()

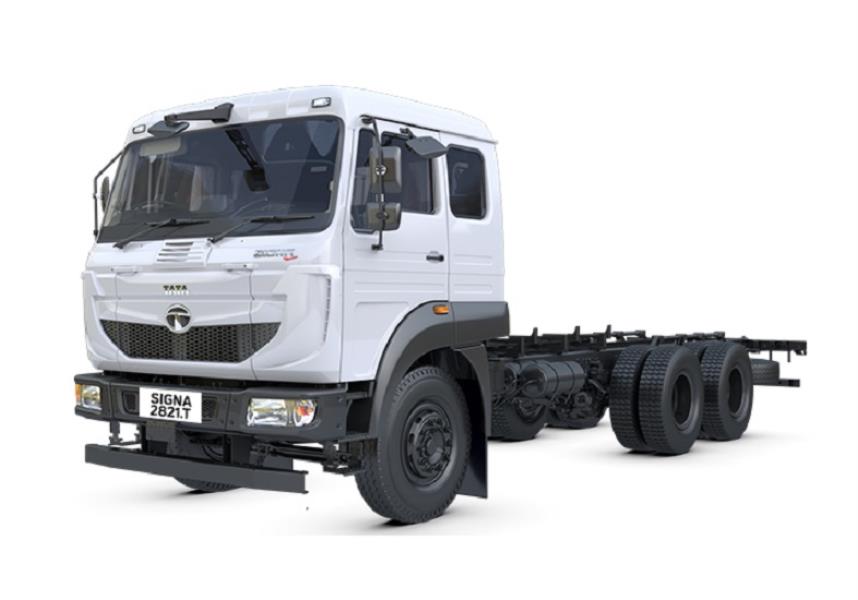

Tata Signa 2821.T
-
Overviewof Ashok Leyland 2820 Drill Rig vs tata signa 2821 t
-
Power
200 HP@2400 rpm
197 HP@2300 rpm
-
Torque
700 Nm@1200-2000 rpm
850 Nm@1000-1600 rpm
-
Engine
H series CRS iGen6 technology
5L Turbotronn
-
GVW (Kg)
28000 Kg
28000 Kg
-
Variants
Cowl with Chassis Cabin and chassis
Cabin and chassis Cabin with load body
-
Load Body Options
Fixed Side Deck High Side Deck Container
-
Body Length
24 ft
22 ft 24 ft 28 ft 32 ft
-
Axle Configuration
6x4
6x2
-
Warranty
4 Years / 4 Lakh Km
6 Years / 6 Lakh km on driveline 3 Years / 3 Lakh km on vehicle
-
Service Interval
80,000 Km (Oil change)
80,000 Km (Oil change)
-
Additional
Gear Shift Advisor
Gear Shift Advisor 3 mode Fuel Economy Switch
-
Engine & Performanceof Ashok Leyland 2820 Drill Rig vs tata signa 2821 t
-
Engine
H series CRS iGen6 technology
5L Turbotronn
-
Power
200 HP@2400 rpm
197 HP@2300 rpm
-
Torque
700 Nm@1200-2000 rpm
850 Nm@1000-1600 rpm
-
Fuel Injection System
Common Rail
Common Rail
-
Displacement
5660 cc
5005 cc
-
Cylinders
6
4
-
Transmission
9 speed (8F+ 1CR+1R)
6 speed (6F+1R)
-
Gearbox
ZF 9S
G950 G750 (for 32 ft body)
-
Clutch
380 mm dia With clutch booster
380 mm dia Organic
-
Max Speed
80 Kmph
80 Kmph
-
Emission
BS6
BS6
-
Fuel Type
Diesel
Diesel
-
Fuel Tank
Diesel: 375 Litres Ad Blue: 48 Litres Polymer tank
365 Litres 365+200 Litres (Optional) Polymer tank With anti-fuel theft
-
Battery
24V, 120 Ah
-
Design & Configurationof Ashok Leyland 2820 Drill Rig vs tata signa 2821 t
-
Variants
Cowl with Chassis Cabin and chassis
Cabin and chassis Cabin with load body
-
Load Body Options
Fixed Side Deck High Side Deck Container
-
Body Length
24 ft
22 ft 24 ft 28 ft 32 ft
-
GVW
28000 Kg
28000 Kg
-
Axle Configuration
6x4
6x2
-
Cabin Type
Sleeper cabin
Sleeper cabin
-
Cabin Tilt mechanism
Hydraulically tiltable
NA
-
Chassis Frame
HSS material, bolted construction
Ladder type straight frame
-
Front Axle
Forged I Beam, Reverse Elliot Type
Forged I Beam, Reverse Elliot Type
-
Rear Axle
Fully floating, Hypoid differential RAR 6.17
Single reduction RA 110LD RAR: 4.88 / 5.12 (68 wheelbase)
-
Front Suspension
Semi elliptical leaf springs Parabolic leaf spring (Optional)
Parabolic leaf springs
-
Rear Suspension
Bogie suspension NRS Semi elliptical leaf springs (Optional)
Semi elliptical leaf springs Bell crank
-
Tyres
295/95D20 10+1 tyres
295/90R20 (Tube) 10+1 tyres
-
Wheelbase
5750 mm
4880 mm 5505 mm 5905 mm 6750 mm
-
Turning Circle Diameter
19.7 m
-
Overall Length
10960 mm
9264 mm (4880 wb) 9635 mm (5505 wb)
-
Overall Width
2570 mm
2440 mm
-
Overall Height
2987 mm
-
Front Track
2084 mm
1964 mm
-
Rear Track
1876 mm
1817 mm
-
Chassis Depth
275 mm
285 mm
-
Chassis Flange width
75 mm
65 mm
-
Chassis Thickness
8 mm
8.5 mm
-
Features & Comfortof Ashok Leyland 2820 Drill Rig vs tata signa 2821 t
-
Steering Type
Power Steering
Power Steering
-
Steering Adjustment
Tilt and telescopic
Tilt and telescopic
-
Driver Seat
4 way adjustable
-
Instrument cluster
Digital With mileage indicator
Digital With mileage indicator Distance to empty
-
Cabin Suspension
Fully suspended
-
Automatic Transmission
-
Telematics
-
Air Conditioner AC
Optional
Optional
-
Quarter Ventilation Glass
-
Mobile Charging Point
-
Bottle Holder
-
Music System
Touchscreen infotainment system (Optional)
-
Cruise Control
Key Comparison of Ashok Leyland 2820 Drill Rig vs Tata Signa 2821.T
Compare Ashok Leyland 2820 Drill Rig vs Tata Signa 2821.T in detail at TrucksBuses.com ! You can check detailed truck comparison of Ashok Leyland 2820 Drill Rig with Tata Signa 2821.T on the basis of engine, specifications, payload, price, mileage and features. Ashok Leyland 2820 Drill Rig with a gross weight of 28000 Kg, gives a power of 200 HP@2400 rpm whereas Tata Signa 2821.T produces 197 HP@2300 rpm of power and comes with a GVW of 28000 Kg. Powering the Ashok Leyland 2820 Drill Rig truck is 5660 cc 6 cylinder, 5L Turbotronn engine whereas Tata Signa 2821.T gets powered by a 4 cylinder, 5005 cc engine.
