Compare Tata LPT 4223 vs Tata Signa 4221.T
Compare tata lpt 4223 vs Tata Signa 4221 T
Tata LPT 4223

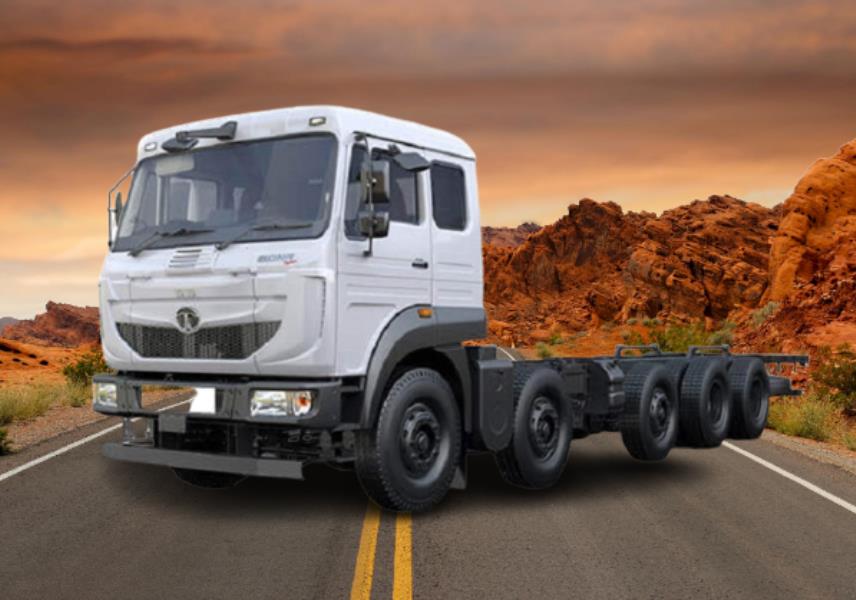

Tata Signa 4221.T
Overviewof
GVW (Kg) |
42000 Kg |
42000 Kg |
|
Engine |
Cummins ISBe 5.9 CRDi SCR Technology |
5L Turbotronn |
|
Power |
228 HP@2500 rpm |
197 HP@2200 rpm |
|
Torque |
810 Nm@ 1000-1800 rpm |
850 Nm@1100-1600 rpm |
|
Axle Configuration |
10x2 |
10x2 |
|
Variants |
Face Cowl and chassis Cabin and chassis Cabin with load body options |
Cabin and chassis Cabin with load body |
|
Body Length |
Pusher Axle Option: 27.5 ft, 31.7 ft Tag Axle Option: 27 ft |
28.5 ft 30.5 ft |
|
Warranty |
6 Years / 6 Lakh Km on driveline 3 Years / 3 Lakh Km on vehicle |
6 Years / 6 Lakh km on driveline |
|
Service Interval |
80,000 Km (Oil change) |
80,000 Km (Oil change) |
|
Additional |
Multi Drive Mode: Heavy, Light Gear Shift Advisor |
Gear Shift Advisor Fuel Economy Switch |
|
Engine & Performanceof
Engine |
Cummins ISBe 5.9 CRDi SCR Technology |
5L Turbotronn |
|
Fuel Injection System |
Common Rail |
Common Rail |
|
Engine Displacement |
5883 cc |
5005 cc |
|
Power |
228 HP@2500 rpm |
197 HP@2200 rpm |
|
Torque |
810 Nm@ 1000-1800 rpm |
850 Nm@1100-1600 rpm |
|
Clutch |
380 mm dia With clutch booster |
380 mm dia Organic |
|
Transmission |
6 speed manual (6F+1R) |
9 speed (8F+1C+1R) |
|
Max Speed |
80 Kmph |
80 Kmph |
|
Emission Norms Compliance |
BSIV |
BS6 |
|
Fuel Tank Capacity |
300 Litres (Pusher axle) 365 Litres (Tag axle) |
300 Litres Polymer tank With anti-fuel theft |
|
Electricals Battery |
2x12V, 120 Ah Alternator: 120 Amps |
N/A |
|
Design & Configurationof
Vehicle Configuration |
Face Cowl and chassis Cabin and chassis Cabin with load body options |
Cabin and chassis Cabin with load body |
|
Loading Span |
Pusher Axle Option: 27.5 ft, 31.7 ft Tag Axle Option: 27 ft |
28.5 ft 30.5 ft |
|
Cabin Type |
Signa Sleeper cabin |
Sleeper cabin |
|
Cabin Tilt mechanism |
Hydraulically tiltable |
Hydraulically tiltable |
|
Chassis Frame |
Ladder type with cross members |
Ladder type straight frame |
|
Axle Configuration |
10x2 |
10x2 |
|
Front Axle |
Forged I Beam, Reverse Elliot Type Twin steer axle |
Forged I Beam, Reverse Elliot Type |
|
Rear Axle |
RA 110 + RA 910 Pusher Lift axle Tag Lift axle (Optional) |
Single reduction RA110 |
|
Front Suspension |
Parabolic leaf springs With telescopic shock absorbers |
Parabolic leaf springs |
|
Rear Suspension |
Semi-elliptical leaf springs With Bell crank mechanism |
Semi elliptical leaf springs Bell crank |
|
Anti Roll Bar |
Front and Rear (Optional) |
N/A |
|
Tyres |
Option 1: 295/80R22.5 (Tubeless) Option 2: 295/90R20 (Tube) 14+1 tyres |
295/90R20 (Tube) 14+1 tyres |
|
Wheelbase |
6750 mm (Pusher axle) 6255 mm (Tag axle) |
6800 mm |
|
Turning Circle Diameter |
23.25 m |
N/A |
|
Ground Clearance |
210 mm |
N/A |
|
Overall Length |
10880 mm (Pusher axle) 10807 mm (Tag axle option) |
N/A |
|
Overall Width |
2434 mm |
N/A |
|
Front Overhang |
1260 mm |
N/A |
|
Rear Overhang |
2155 mm (Pusher axle) 800 mm (Tag axle) |
N/A |
|
Chassis Depth |
285 mm |
285 mm |
|
Chassis Flange width |
65 mm |
65 mm |
|
Chassis Thickness |
7 mm |
8.5 mm |
|
Features & Comfortof
Cabin Suspension |
Fully suspended |
Fully suspended |
|
Steering |
Power Steering |
Power Steering |
|
Steering Adjustment |
Tilt and telescopic |
Tilt and telescopic |
|
Driver Seat |
6 way adjustable |
4 way adjustable |
|
Air Conditioner (AC) |
Optional |
Optional |
|
Quarter Ventilation Glass |
No |
No |
|
Instrument Cluster |
Digital |
Digital With mileage indicator Distance to empty |
|
Music System |
No |
Touchscreen infotainment system (Optional) |
|
Mobile Charging Point |
Available in Cabin option |
Yes |
|
Bottle Holder |
Available in Cabin option |
Yes |
|
Automatic Transmission |
No |
No |
|
Safetyof
Service Brakes |
Air brakes With automatic slack adjuster |
Air brakes |
|
Parking Brakes |
Graduated valve controlled spring brake Acting on rear axle |
N/A |
|
Anti Roll Bar |
Front and Rear (Optional) |
N/A |
|
Tubeless Tyres |
Optional |
Optional |
|
Key Comparison of Tata LPT 4223 vs Tata Signa 4221.T
Compare Tata LPT 4223 vs Tata Signa 4221.T in detail at TrucksBuses.com ! You can check detailed truck comparison of Tata LPT 4223 with Tata Signa 4221.T on the basis of engine, specifications, payload, price, mileage and features. Tata LPT 4223 with a gross weight of , gives a power of whereas Tata Signa 4221.T produces of power and comes with a GVW of . Powering the Tata LPT 4223 truck is cylinder, engine whereas Tata Signa 4221.T gets powered by a cylinder, engine.
