Compare Tata 1109g LPT CNG vs Tata Ultra T.12g CNG
Compare tata 1109g LPT CNG vs tata ultra T12 g cng
![https://res.cloudinary.com/dz4x78ghb/image/fetch/c_scale,q_30,w_300,f_auto/https://www.trucksbuses.com/uploads/4506_8ba1bc34423344cb9bc95bedd5d26a1eTata_1109g_LPT_Truck.jpg]()
Tata 1109g LPT CNG
![https://res.cloudinary.com/dz4x78ghb/image/fetch/c_scale,q_30,w_300,f_auto/https://www.trucksbuses.com/uploads/12987_c29996bc69f344e6975bba7e0e7e14d3t12-ultra-gallery-03-removebg-preview.jpg]()

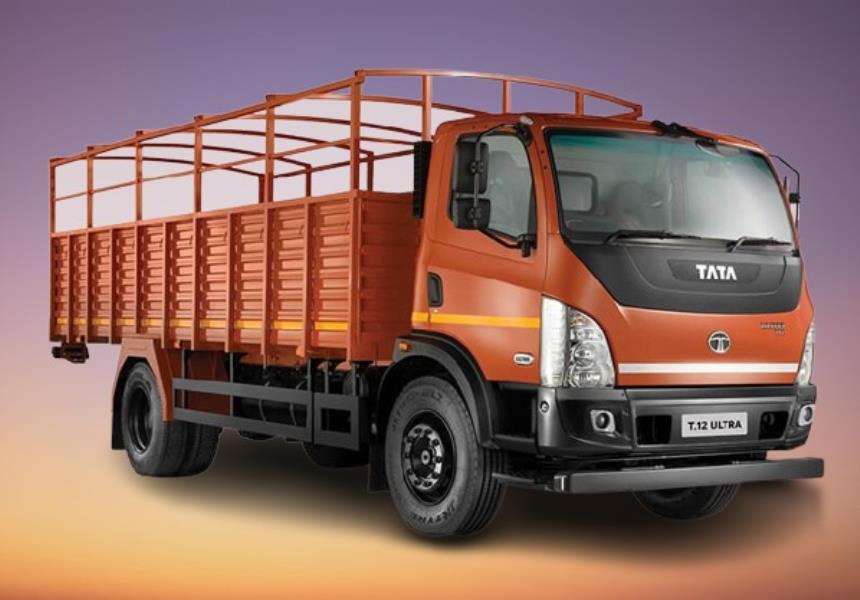

Tata Ultra T.12g CNG
-
Overviewof tata 1109g LPT CNG vs tata ultra T12 g cng
-
Power
85 HP@2500 rpm
125 HP@2250 rpm
-
Torque
285 Nm@1200-1600 rpm
420 Nm@1400-1600 rpm
-
Engine
3.8L SGI Naturally Aspirated
3.8L SGI TCIC
-
GVW (Kg)
10990 Kg
11990 Kg
-
Payload
6.5 tons +
7-7.5 tons*
-
Variants
Cabin chassis with PTO Cabin with load body
Cabin and chassis Cabin with load body
-
Load Body Options
Fixed Side Deck High Side Deck
Fixed Side Deck High Side Deck
-
Body Length
17 ft 20 ft
20 ft 22 ft 24 ft
-
Axle Configuration
4x2
4x2
-
Warranty
3 Years / 3 Lakh Km on driveline
3 Years / 3 Lakh Km on driveline
-
Service Interval
20,000 Km (Oil change)
20,000 Km (Oil change)
-
Additional
Gear Shift Advisor
Gear Shift Advisor
-
Engine & Performanceof tata 1109g LPT CNG vs tata ultra T12 g cng
-
Engine
3.8L SGI Naturally Aspirated
3.8L SGI TCIC
-
Power
85 HP@2500 rpm
125 HP@2250 rpm
-
Torque
285 Nm@1200-1600 rpm
420 Nm@1400-1600 rpm
-
Displacement
3783 cc
3783 cc
-
Cylinders
4
4
-
Transmission
5 speed (5F+1R)
5 speed (5F+1R)
-
Gearbox
GB 27
GB550
-
Clutch
280 mm dia
330 mm dia
-
Gradeability
21%
25%
-
Max Speed
80 Kmph
80 Kmph
-
Emission
BS6
BS6
-
Fuel Type
CNG
CNG
-
Fuel Tank
300 / 430 Litres
576 Litres
-
Battery
12V, 100 Ah Alternator: 120 Amps
12V, 100 Ah Alternator: 120 Amps
-
Design & Configurationof tata 1109g LPT CNG vs tata ultra T12 g cng
-
Variants
Cabin chassis with PTO Cabin with load body
Cabin and chassis Cabin with load body
-
Load Body Options
Fixed Side Deck High Side Deck
Fixed Side Deck High Side Deck
-
Body Length
17 ft 20 ft
20 ft 22 ft 24 ft
-
GVW
10990 Kg
11990 Kg
-
Axle Configuration
4x2
4x2
-
Cabin Type
Day cab
Day cab
-
Cabin Tilt mechanism
Manually tiltable
Hydraulically tiltable
-
Chassis Frame
Ladder type with cross members
Ladder type with cross members
-
Front Axle
Forged I Beam, Reverse Elliot Type
Forged I Beam, Reverse Elliot Type
-
Front Suspension
Semi elliptical leaf springs With telescopic shock absorbers
Parabolic leaf springs With telescopic shock absorbers
-
Rear Suspension
Semi elliptical leaf springs
Semi elliptical leaf springsWith auxiliary springs
-
Tyres
8.25R20 6+1 tyres
245/70 R 17.5Tubeless Radial 6+1 tyres
-
Wheelbase
3600 mm 4200 mm
4530 mm
-
Turning Circle Diameter
14.8 m (3600 wb) 16.6 m (4200 wb)
15.2 m (20 ft body) 16.9 m (22 ft) 18.2 m (24 ft)
-
Ground Clearance
217 mm
185 mm
-
Overall Length
7035 mm (3600 wb HSD) 7995 mm (4200 wb)
-
Overall Width
2315 mm
2255 mm
-
Load Body Width
2175 mm
2117 mm
-
Overall Height
3100 mm
2933 mm
-
Chassis Thickness
5 mm
-
Features & Comfortof tata 1109g LPT CNG vs tata ultra T12 g cng
-
Steering Type
Power Steering
Power Steering
-
Steering Adjustment
Tilt and telescopic
Tilt and telescopic
-
Driver Seat
4 way adjustable
4 way adjustable Mechanically suspended
-
Instrument cluster
Digital With mileage indicator Distance to empty
Digital With mileage indicator Distance to empty
-
Cabin Suspension
-
Automatic Transmission
-
Telematics
-
Air Conditioner AC
-
Quarter Ventilation Glass
-
Mobile Charging Point
-
Bottle Holder
-
Music System
-
Cruise Control
-
Safetyof tata 1109g LPT CNG vs tata ultra T12 g cng
-
Service Brakes
Air brakes With auto slack adjuster
Air brakes With auto slack adjuster
-
Parking Brakes
Graduated valve controlled spring brake
-
ABS
-
Seat Belts
-
Fog Light
Provision
-
Tubeless Tyres
-
Differential Lock
-
Reverse Gear Buzzer
Key Comparison of Tata 1109g LPT CNG vs Tata Ultra T.12g CNG
Compare Tata 1109g LPT CNG vs Tata Ultra T.12g CNG in detail at TrucksBuses.com ! You can check detailed truck comparison of Tata 1109g LPT CNG with Tata Ultra T.12g CNG on the basis of engine, specifications, payload, price, mileage and features. Tata 1109g LPT CNG with a gross weight of 10990 Kg, gives a power of 85 HP@2500 rpm whereas Tata Ultra T.12g CNG produces 125 HP@2250 rpm of power and comes with a GVW of 11990 Kg. Powering the Tata 1109g LPT CNG truck is 3783 cc 4 cylinder, 3.8L SGI TCIC engine whereas Tata Ultra T.12g CNG gets powered by a 4 cylinder, 3783 cc engine.
