Compare Propel 470 MEV-ROCK 6x4 vs Scania R500
Compare propel 470 mev rock 6x4 vs scania r500

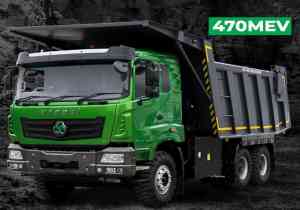

Propel 470 MEV-ROCK 6x4
Scania R500
Overviewof
| Vehicle Configuration |
Cabin with tipper |
|
|
| Cabin Type |
Tiltable sleeper cabin
Keyless entry
Four point suspended |
|
|
Engine & Performanceof
| Power |
470 HP |
500 HP@1900 rpm |
|
| Torque |
2800 Nm |
2500 Nm@1000-1300 rpm |
|
| Transmission |
Electronic mechanical transmission (EMT) |
14 Speed |
|
| Clutch |
Clutchless, fatigueless drive |
|
|
| Max Speed |
40 Kmph |
80 Kmph |
|
| Fuel Type |
Electric |
Diesel |
|
Design & Configurationof
| Chassis Frame |
Ladder construction, C-channel with full flitch reinforcement |
|
|
| Turning Circle Diameter |
16.5 m |
|
|
| Axle Configuration |
6x4 |
6x4 |
|
| Turning Circle Diameter |
16.5 m |
|
|
| Rear Suspension |
37T inverted bogie semi elliptical |
Air suspension |
|
| Front Axle |
Steerable, heavy duty | Beam |
Forged I beam reverse Elliot type |
|
| Rear Axle |
Heavy duty tandem, hub reduction cast axle |
First rear axle: Hub reduction Hypoid gears Axle
Second rear axle: Tandem Bogie Axle |
|
| Tyres |
12x20, Mining tyre |
295/80 R 22.5 |
|
| Angle of Approach |
24 degree |
|
|
| Ground Clearance |
265 mm |
260 mm |
|
| Wheelbase |
4300 mm |
3778 mm |
|
| Overall Length |
8275 mm |
6713 mm |
|
| Overall Width |
2800 mm |
2490 mm |
|
| Overall Height |
3650 mm |
3593 mm |
|
| Front Suspension |
1x9.5T parabolic leaf with shock absorbers and Anti-roll bar |
Parabolic leaf springs suspension |
|
Features & Comfortof
| Steering Type |
Hydraulic integral power steering |
|
|
| Steering Adjustment |
Tilt and telescopic |
Tilt and telescopic |
|
| Driver Seat Type |
Air Suspended |
|
|
| Instrument Cluster |
Digital instrument cluster with analog dials |
Digital
With on board diagnostics |
|
| Mobile Charging Point |
Yes |
Yes |
|
Safetyof
| Brakes |
Dual line air brakes with ABS |
|
|
| Paking Brakes |
Pneumatic hand control valve |
|
|
| Reverse Parking Buzzer |
Yes |
|
|
Key Comparison of Propel 470 MEV-ROCK 6x4 vs Scania R500
Compare Propel 470 MEV-ROCK 6x4 vs Scania R500 in detail at TrucksBuses.com ! You can check detailed truck comparison of Propel 470 MEV-ROCK 6x4 with Scania R500 on the basis of engine, specifications, payload, price, mileage and features. Propel 470 MEV-ROCK 6x4 with a gross weight of , gives a power of whereas Scania R500 produces of power and comes with a GVW of . Powering the Propel 470 MEV-ROCK 6x4 truck is cylinder, engine whereas Scania R500 gets powered by a cylinder, engine.
