Compare Eicher Pro 8035 XM vs Tata Signa 3525.K Bogie

Compare eicher pro 8035 xm vs tata signa 3525 k bogie


https://res.cloudinary.com/dz4x78ghb/image/fetch/c_scale,q_30,w_300,f_auto/https://www.trucksbuses.com/uploads/4255_eicher-pro-8035-xm-tipper.jpg

Eicher Pro 8035 XM

https://res.cloudinary.com/dz4x78ghb/image/fetch/c_scale,q_30,w_300,f_auto/https://www.trucksbuses.com/uploads/4304_0a6d5cafffaf43259e4551d6c85292dc4304_tata-signa-3525-tk-dumper-tipper-bogie-removebg-preview.jpg

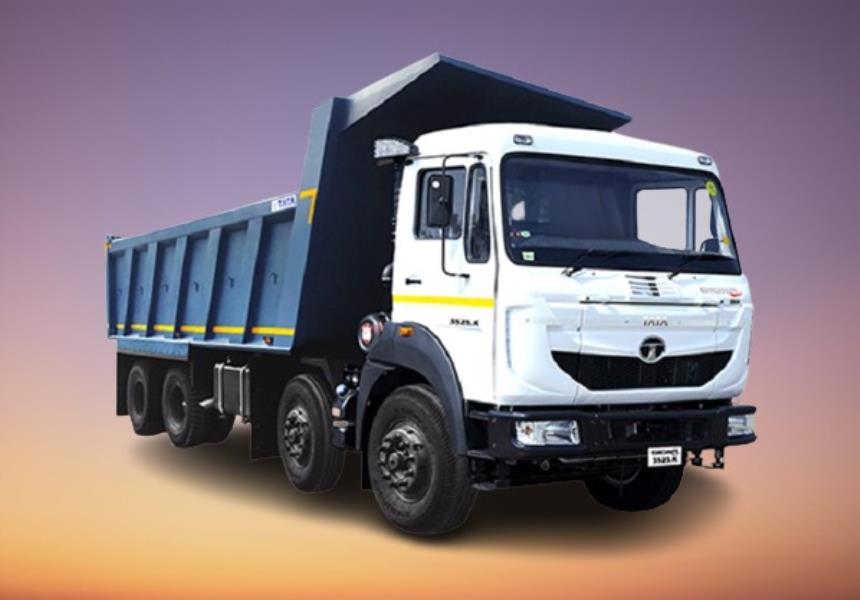

Tata Signa 3525.K Bogie

  • Overviewof eicher pro 8035 xm vs tata signa 3525 k bogie

  • Power
    350 HP@2200 rpm
    250 HP@2300 rpm
  • Torque
    1350 Nm@1200-1600 rpm
    950 Nm@1000-1700 rpm
  • Engine
    VEDX8
    Cummins ISBe 6.7L
  • GVW (Kg)
    35000 Kg
    35000 Kg
  • Variants
    Cabin with Box body
    Cabin with Rock body
    Cabin with Box body
  • Load Body Options
    16 / 18 Cu.M (Rock)
    20 / 23 Cu.M (Box)
    23 Cu.M Box body
  • Axle Configuration
    8x4
    8x4
  • Transmission
    9 speed (9F+1R)
    9 speed (9F+1R)
  • Warranty
    6 Years / 6000 Hrs on driveline
  • Service Interval
    1500 Hrs
  • Additional
    Fuel coaching
    MBooster+ Technology for multi drive modes
    Gear Shift Advisor
    Fuel Economy Switch
    Hill Start Assist
  • Engine & Performanceof eicher pro 8035 xm vs tata signa 3525 k bogie

  • Engine
    VEDX8
    Cummins ISBe 6.7L
  • Power
    350 HP@2200 rpm
    250 HP@2300 rpm
  • Torque
    1350 Nm@1200-1600 rpm
    950 Nm@1000-1700 rpm
  • Fuel Injection System
    Common Rail
    Common Rail
  • Displacement
    7698 cc
    6692 cc
  • Cylinders
    6
    6
  • Transmission
    9 speed (9F+1R)
    9 speed (9F+1R)
  • Gearbox
    ET 140 S9
    G1150
  • Clutch
    430 mm dia
    With clutch booster
    430 mm dia
    Organic
  • Gradeability
    75% (Crawler)
  • Max Speed
    60 Kmph
  • Emission
    BS6
    BS6
  • Fuel Type
    Diesel
    Diesel
  • Fuel Tank
    Diesel: 315 Litres
    Ad Blue: 50 Litres
    300 Litres
    Polymer tank
    With anti-fuel theft
  • Battery
    24V, 120 Ah
  • Design & Configurationof eicher pro 8035 xm vs tata signa 3525 k bogie

  • Variants
    Cabin with Box body
    Cabin with Rock body
    Cabin with Box body
  • Load Body Options
    16 / 18 Cu.M (Rock)
    20 / 23 Cu.M (Box)
    23 Cu.M Box body
  • GVW
    35000 Kg
    35000 Kg
  • Axle Configuration
    8x4
    8x4
  • Cabin Type
    Sleeper cabin
    Day Cab
  • Cabin Tilt mechanism
    Hydraulically tiltable
    Hydraulically tiltable
  • Chassis Frame
    Domex frame
    Ladder type straight frame
  • Front Axle
    Forged I Beam, Reverse Elliot Type
    With Stabilizer bar
    Forged I Beam, Reverse Elliot Type
  • Rear Axle
    Hub reduction axle
    With 2 stage differential lock
    Single reduction, Hypoid gears, Fully Floating Axle
    RA 109
  • Front Suspension
    Parabolic leaf springs
    Parabolic leaf springs
  • Rear Suspension
    Bogie suspension
    Bogie suspension
  • Tyres
    12x20 - Mining
    11x20 Nylon
    12+1 tyres
  • Wheelbase
    5285 mm
    5580 mm
  • Turning Circle Diameter
    21.1 m
  • Ground Clearance
    308 mm
  • Overall Length
    9090 / 8925 mm
  • Overall Width
    2590 / 2580 mm
  • Chassis Depth
    300 mm
  • Chassis Flange width
    90 mm
  • Chassis Thickness
    8 mm
  • Features & Comfortof eicher pro 8035 xm vs tata signa 3525 k bogie

  • Steering Type
    Power steering
    Power Steering
  • Steering Adjustment
    Tilt and telescopic
    Tilt and telescopic
  • Driver Seat
    6 way adjustable
    Mechanically Suspended (Standard)
    Air Suspended (Optional)
    6 way adjustable
  • Instrument cluster
    Digital
    With fuel coaching
    Digital
    With mileage indicator
    Distance to empty
  • Cabin Suspension
    Fully Suspended
    Fully suspended
  • Automatic Transmission
  • Telematics
  • Air Conditioner AC
    Optional
  • Quarter Ventilation Glass
  • Mobile Charging Point
  • Bottle Holder
  • Music System
    Optional
  • Cruise Control
  • Safetyof eicher pro 8035 xm vs tata signa 3525 k bogie

  • Service Brakes
    Air Brakes
    With automatic adjuster
    Air brakes
  • Parking Brakes
    Pneumatically operated
  • Exhaust Brake
    Engine brake fitted
  • ABS
  • Seat Belts
  • Fog Light
  • Anti Roll Bar
  • Tubeless Tyres
    Optional
  • Differential Lock
  • Reverse Gear Buzzer

Key Comparison of Eicher Pro 8035 XM vs Tata Signa 3525.K Bogie

Compare Eicher Pro 8035 XM vs Tata Signa 3525.K Bogie in detail at TrucksBuses.com ! You can check detailed truck comparison of Eicher Pro 8035 XM with Tata Signa 3525.K Bogie on the basis of engine, specifications, payload, price, mileage and features. Eicher Pro 8035 XM with a gross weight of 35000 Kg, gives a power of 350 HP@2200 rpm whereas Tata Signa 3525.K Bogie produces 250 HP@2300 rpm of power and comes with a GVW of 35000 Kg. Powering the Eicher Pro 8035 XM truck is 7698 cc 6 cylinder, Cummins ISBe 6.7L engine whereas Tata Signa 3525.K Bogie gets powered by a 6 cylinder, 6692 cc engine.
